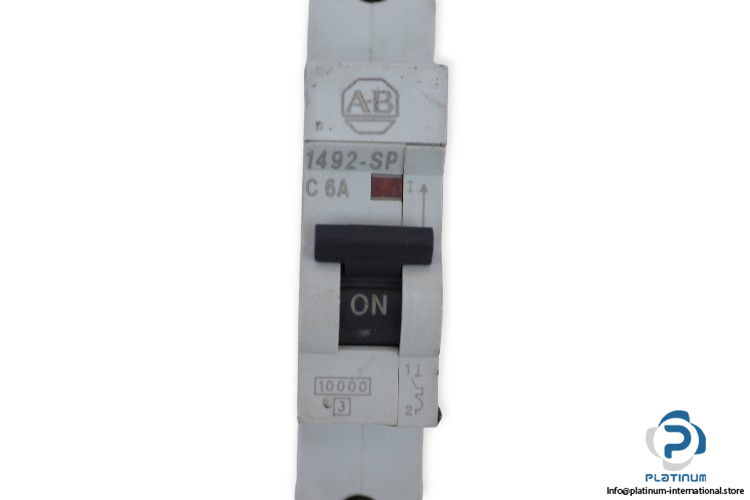

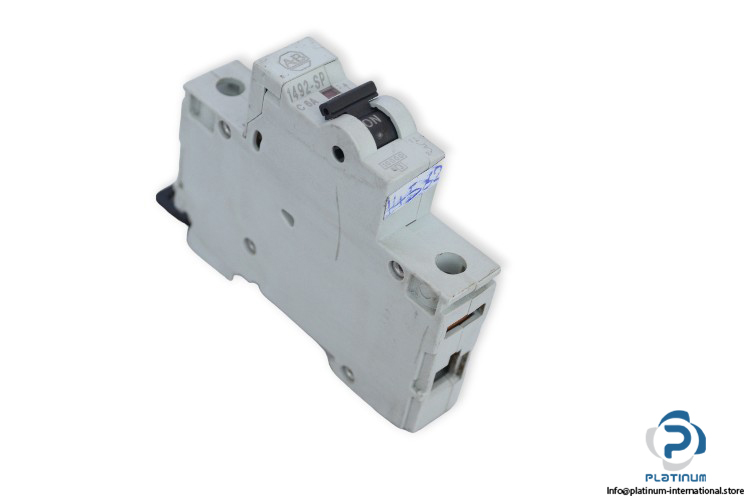

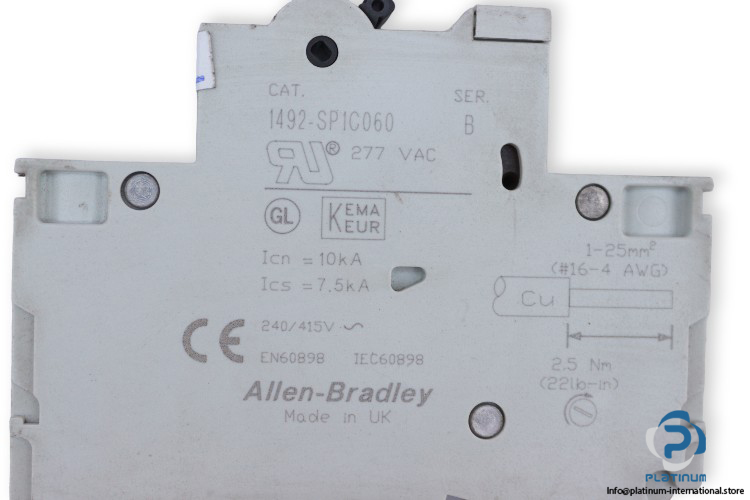

Allen-Bradley 1492-SP1C060 Circuit Breaker Series B
The Allen-Bradley 1492-SP1C060 Series B Circuit Breaker is a reliable protection device for electrical circuits in industrial and commercial installations. It offers dependable overcurrent and short-circuit protection, ensuring operational safety and system stability. Compact in design and compliant with international standards, it provides quick installation and consistent performance.
Manufacturer: Allen-Bradley
Type: Circuit Breaker Series B
Model: 1492-SP1C060
Series: B
Technical Information
- Curve: C
- Rated Voltage (Ue): 240/415 V AC
- Continuous Current Rating (In): 6 A
- Service Breaking Capacity (Ics): 7.5 kA
- Breaking Capacity (Icn): 10 kA
- Impulse Withstand Voltage (Uimp): 10 kV
- Torque: 2.5 Nm
- No. of Poles: 1
- Standard: EN 60898, IEC 60898
- Dimensions: 80 × 72 × 17 mm
