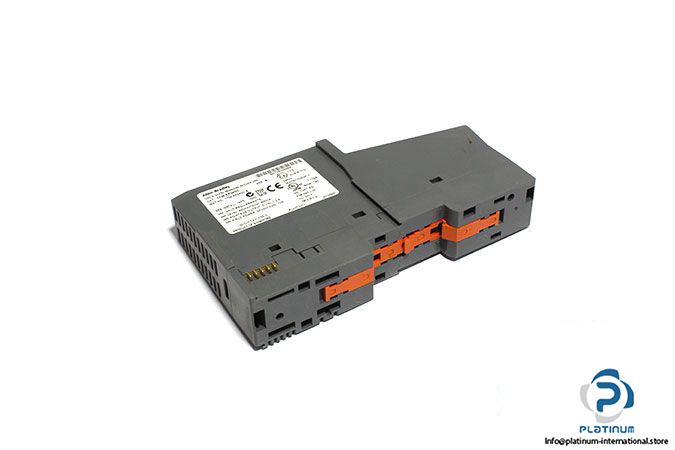

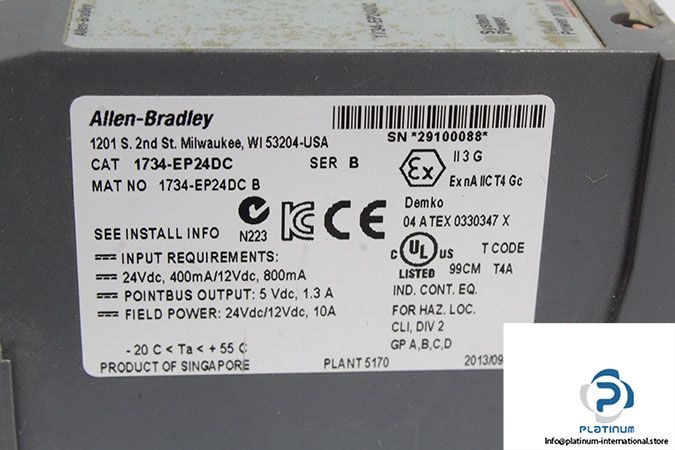

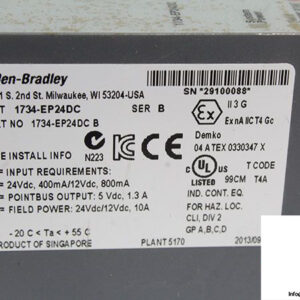

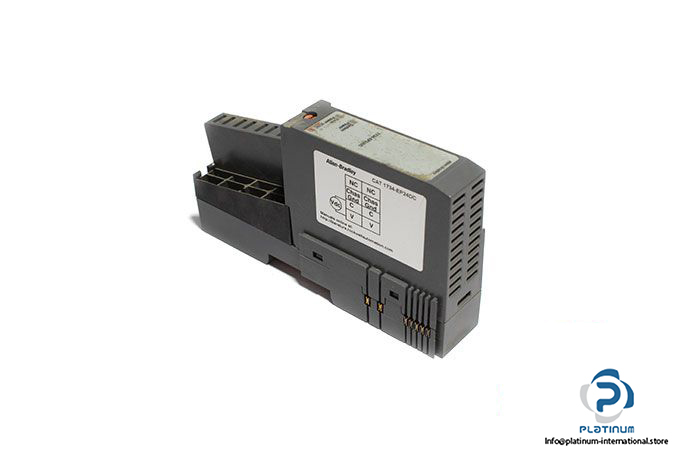

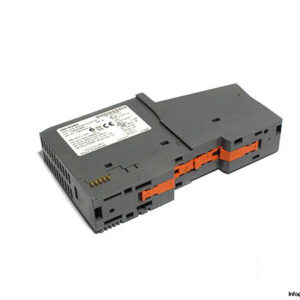

Manufacturer: ALLEN-BRADLEY

Type: Expansion Power Supply

Model: 1734-EP24DC

Input voltage rating : 24V DC nominal, 10…28.8V DC range

Field side power requirements: 24V DC (+20% = 28.8V DC max) @ 400 mA max

Inrush current, max: 6 A for 10 ms

Indicators: 1 green field power status indicator 1 green 5V system power indicator

Power Consumption, max: 9.8 W @ 28.8V DC

Indicators: 3 red/green status indicators

Power consumption: 10.4 W max @ 28.8V DC

Power dissipation, max: 3.0 W @ 28.8V DC

Thermal dissipation, max : 10.0 BTU/hr @ 28.8V DC

Field power bus supply voltage, nom: 24V DC

Dimensions ( L x W x H ): 13.34 x 2.54 x 7.62 cm

Weight: 0.1 Kg
