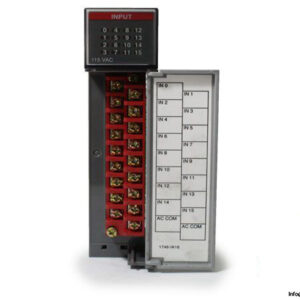

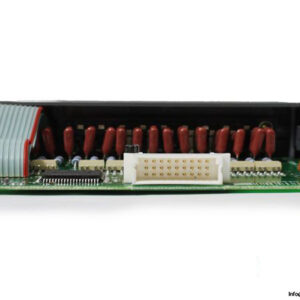

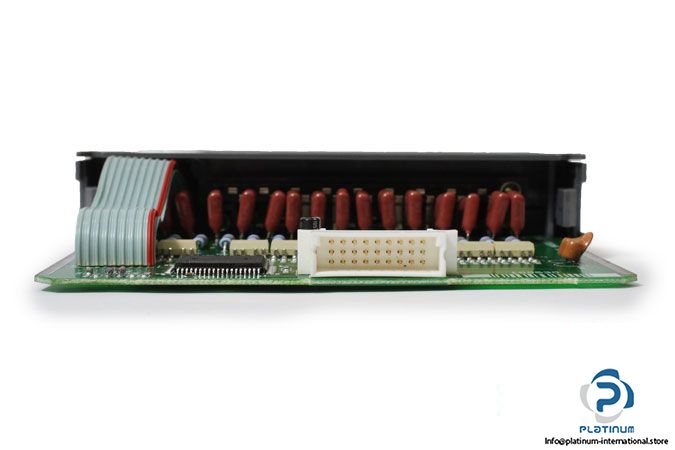

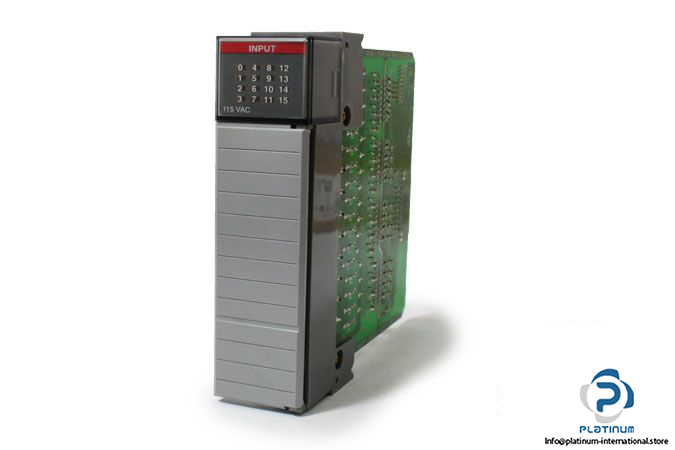

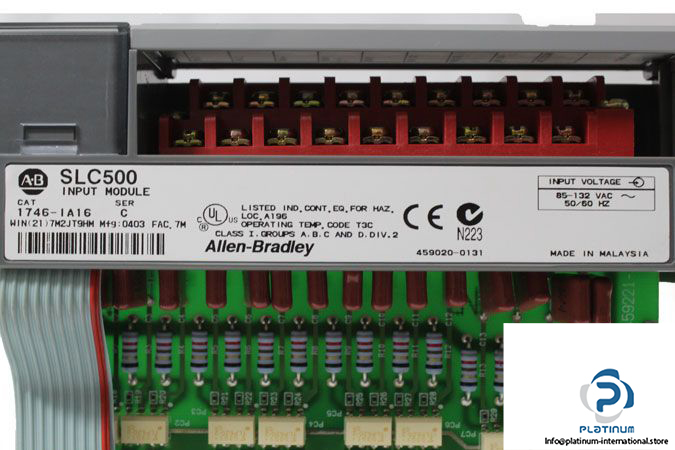

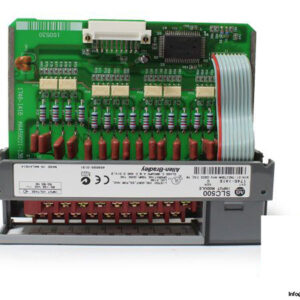

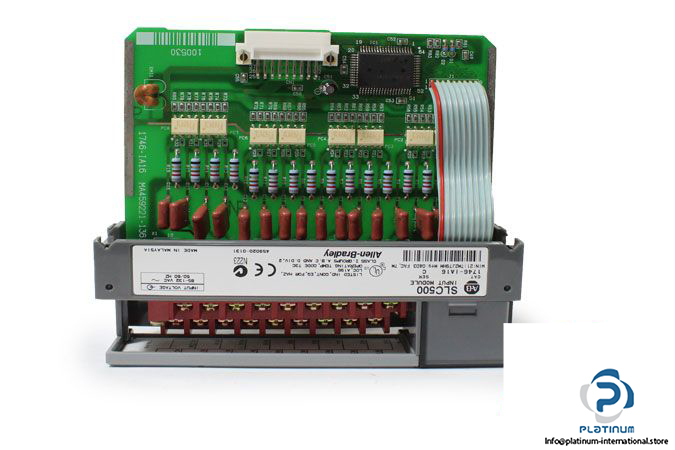

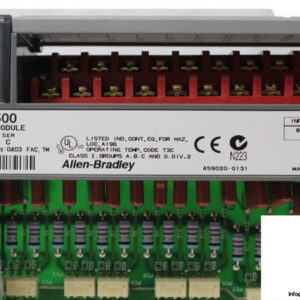

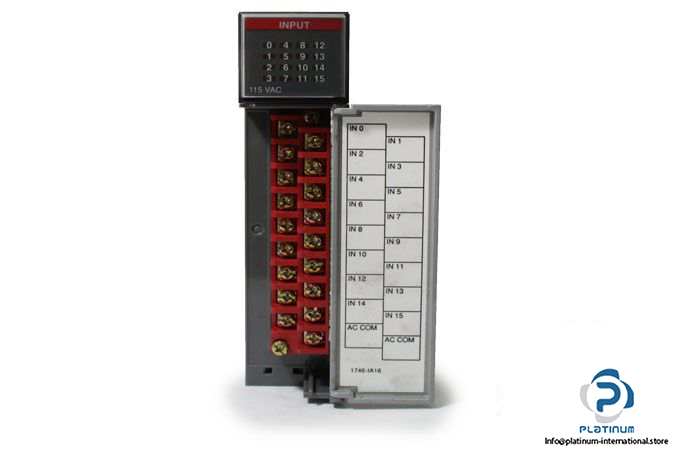

ALLEN-BRADLEY 1746-IA16 Input Module

The ALLEN-BRADLEY 1746-IA16 is a high-reliability AC input module designed for SLC 500 systems. It provides stable signal processing, wide voltage compatibility, and dependable performance for industrial automation applications.

Manufacturer: ALLEN-BRADLEY
Type: Input Module
Model: 1746-IA16
Series: C
Family: SLC 500
Class: I
Group: A, B, C and D Div.2
Code: 459020-0130

Technical Information

• Voltage Category: 115 V AC signal input
• Operating Voltage: 85 to 132 VAC
• Frequency: 50 to 60 Hz
• Backplane Current Consumption 5 VDC: 0.085 A
• Off-State Voltage: maximum 30 VAC
• Off-State Current: maximum 2 mA
• Number of Inputs: 16
• Points Per Common: 16
• Total Watts: 4.8 W
