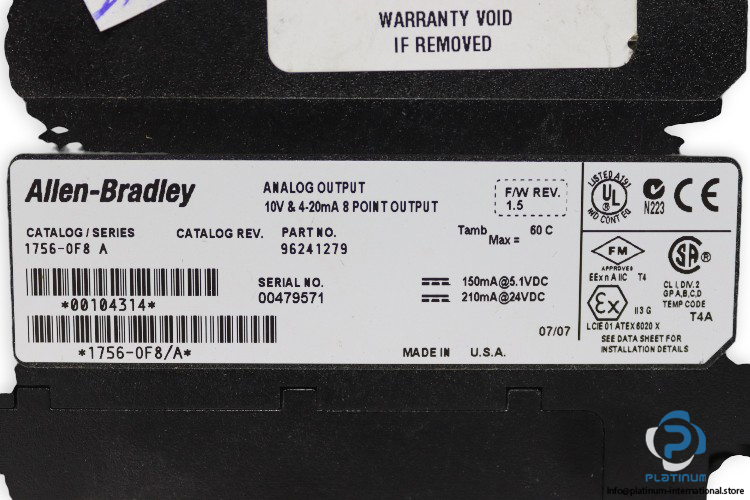

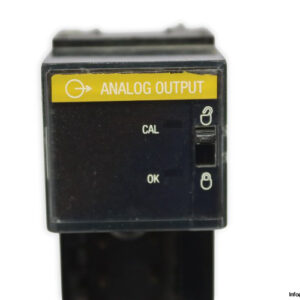

Manufacturer: Allen-Bradley

Type: Analog Output Module

Model: 1756-OF8 A

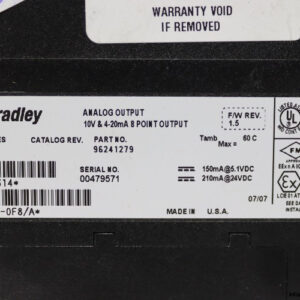

Part No.: 96241279

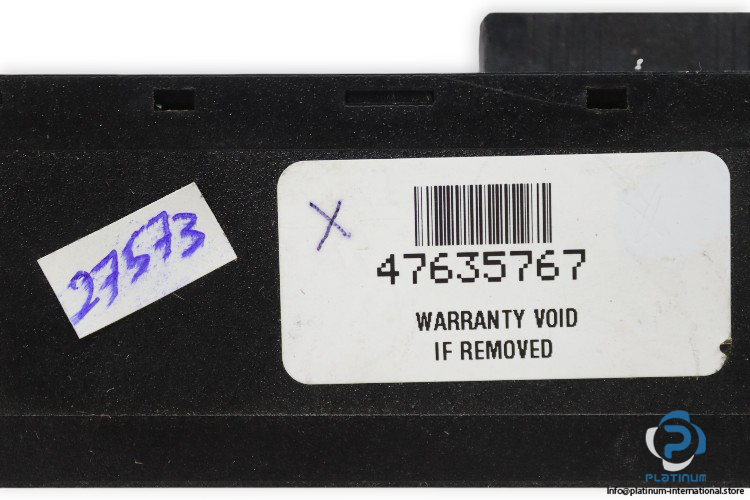

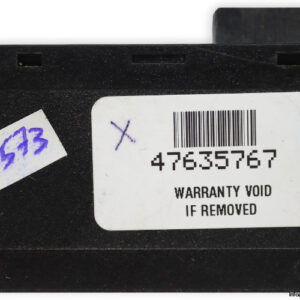

MNR: 47635767 / 00104314

Serial No.: 00479571

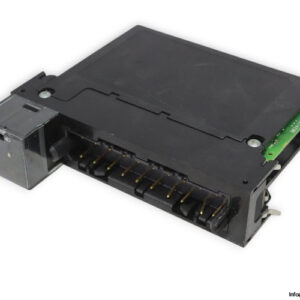

The Allen-Bradley 1756-OF8 A Analog Output Module delivers precise and reliable analog signal output for industrial control systems. With 8 single-ended output channels supporting both current and voltage signals, it is ideal for a wide range of automation applications. This high-resolution 15-bit module ensures accurate signal conversion and control, even in demanding environments.

• Analogue Output Range: 10V DC, 0 … 20mA
• Current Draw @ 5.1V: 150 mA
• Current Draw @ 24V: 210 mA
• Total Backplane Power: 5.8 W
• Analogue Resolution, Output: 15 bit (signed)
• Number of Analogue Outputs: 8
• Analogue Output Type: Current / Voltage, Single-Ended
• Vibration Frequency, Operational (Max.): 500 Hz
• Operating Temperature, Max: 0 / 60 °C
