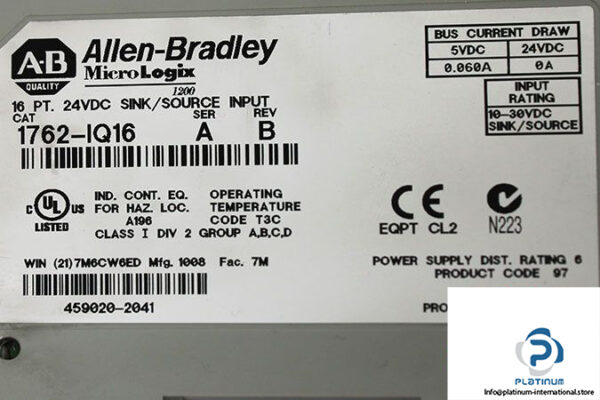

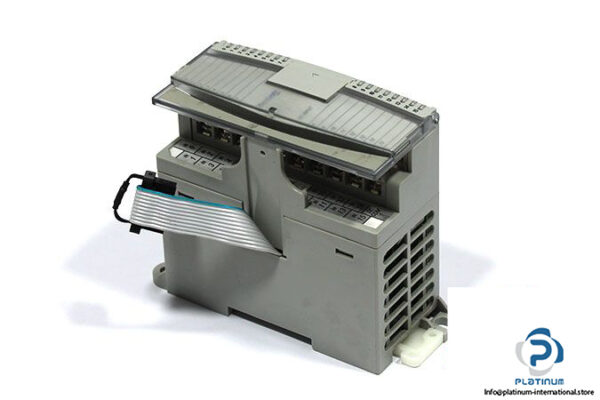

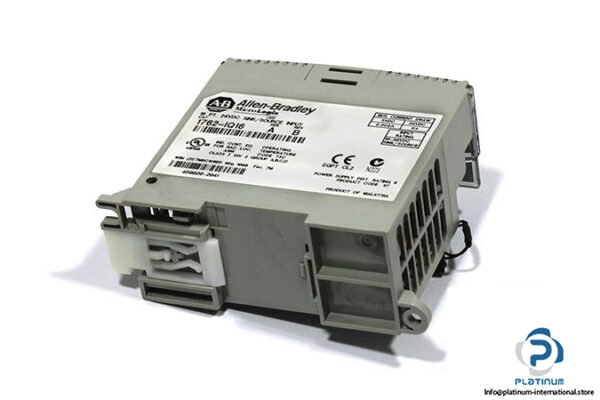

Manufacturer: Allen-Bradley
Type: Input Module
Model: 1762-IQ16
Part No: 459020-2041

Voltage Category: 24 VDC
Operating Voltage Range: 10…30 VDC
No. of Input: 16
Bus Current Draw, Max: 70 mA @ 5V DC (0.35 W)
Heat Dissipation, Max: 5.4 Total Watts @ 30V DC
Signal Delay: 8 ms
Off-State Voltage, Max: 5 VDC
Off -State Current, Max: 1.5 mA
On -State Voltage, Min: 10 VDC
On-State Current, Min: 2 mA @ 10V DC
Vibration: 10…500 Hz
Operating Temperature: -20…65 °C
Protection Class: IP20
Dimensions: 90 X 40.4 X 87 mm
