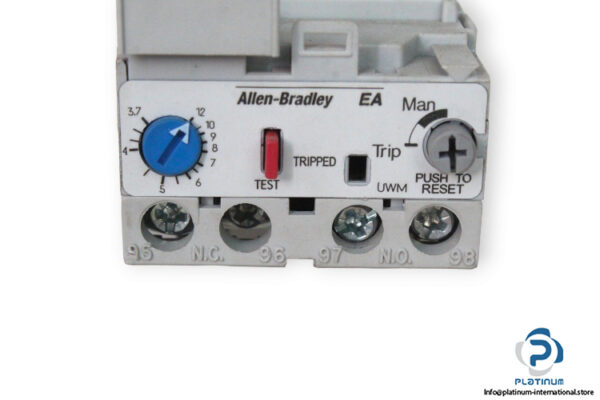

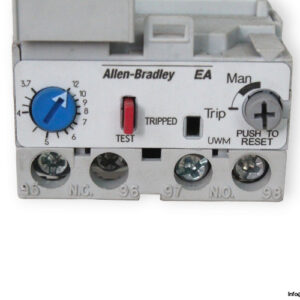

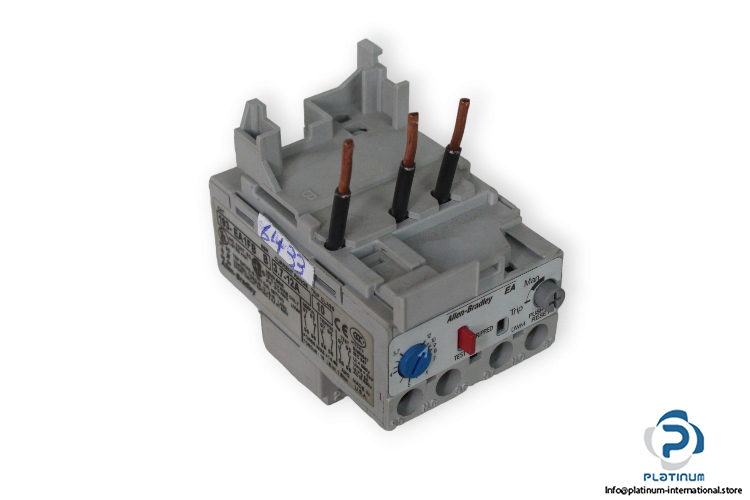

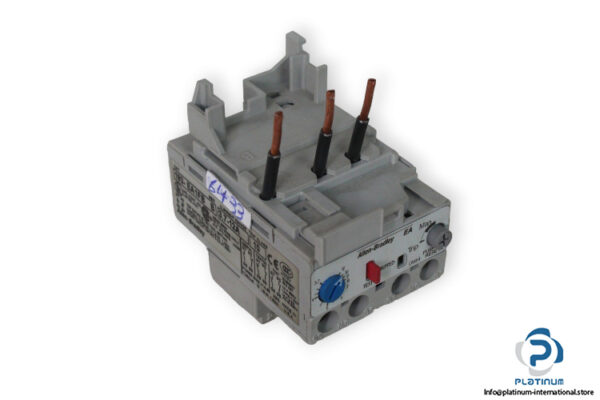

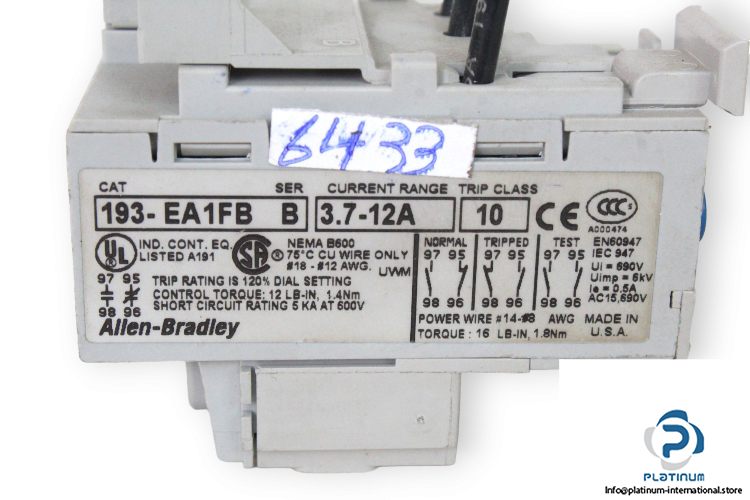

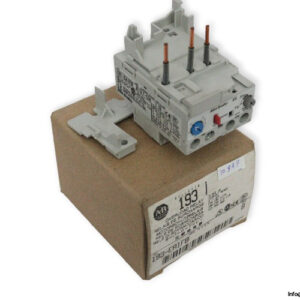

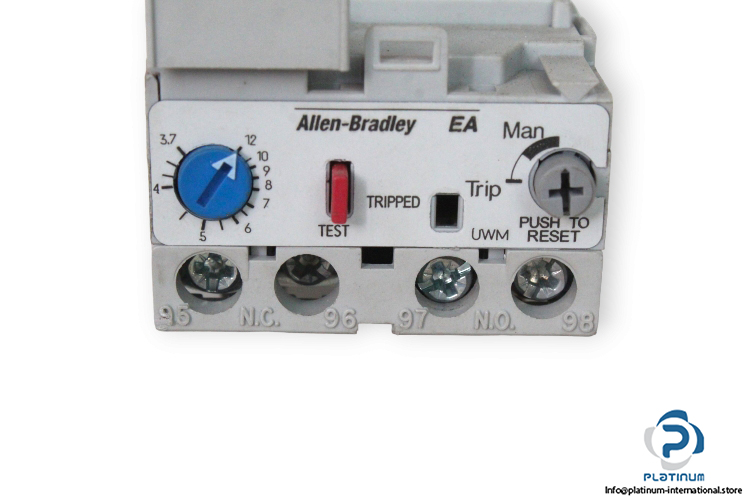

Allen-Bradley 193-EA1FB B Overload Relay

The Allen-Bradley 193-EA1FB B Overload Relay is a precision protection device engineered for safeguarding motors and electrical circuits from overload conditions. It ensures accurate trip performance, high reliability, and compliance with international standards, making it ideal for industrial automation and motor-control applications.

Manufacturer: Allen-Bradley
Type: Overload Relay
Model: 193-EA1FB B

Technical Information

• Current Range: 3.7 / 12 A
• Rated Insulation Voltage Ui: 690 V
• Rated Operating Voltage Ue: 690 V
• Rated Impulse Withstand Voltage Uimp: 6000 V
• Short-Circuit Current: 5 kA @ 600 V
• Rated Current Ie: 0.5 A
• Torque: 1.4 N·m
• Standard Compliance: EN 60947 / IEC 947
• Trip Class: 10
• Contacts: 1 Normally Closed (NC), 1 Normally Open (NO)
