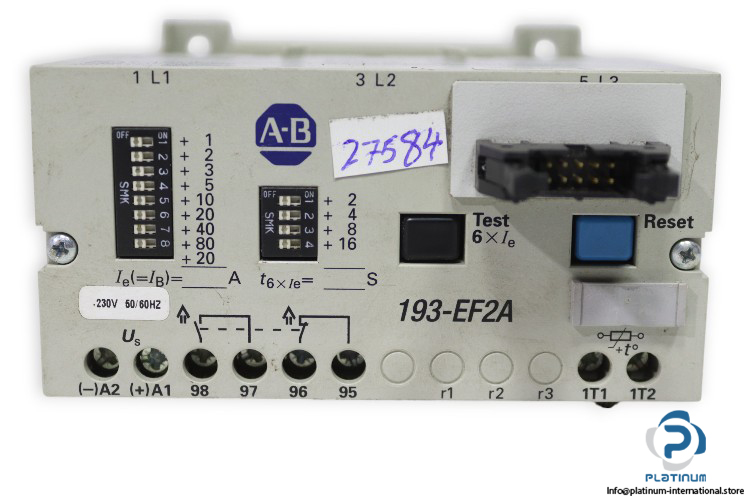

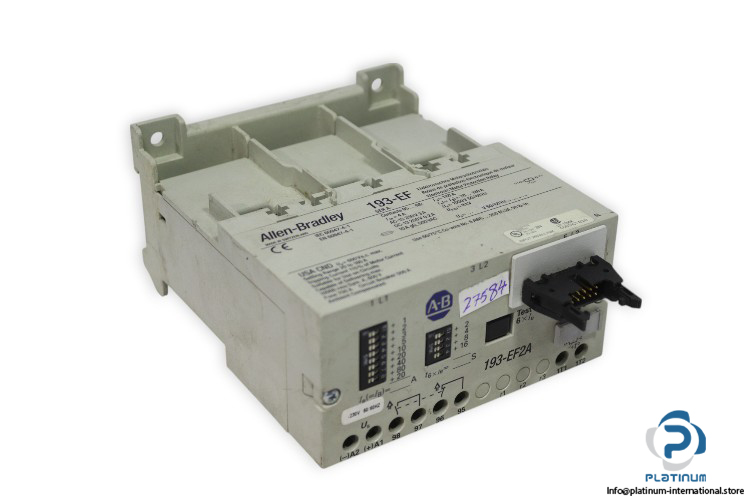

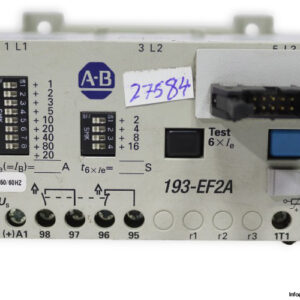

ALLEN-BRADLEY 193-EF / 193-EF2A ELECTRONIC OVERLOAD RELAY
The Allen-Bradley 193-EF / 193-EF2A is a solid-state electronic overload relay designed for advanced motor protection in industrial environments. Built with a wide adjustment range and strong thermal characteristics, this Series A, Version 2 unit ensures accurate and dependable performance in heavy-duty applications.
Manufacturer: Allen-Bradley, Routeco
Type: Electronic Overload Relay
Model: 193-EF / 193-EF2A

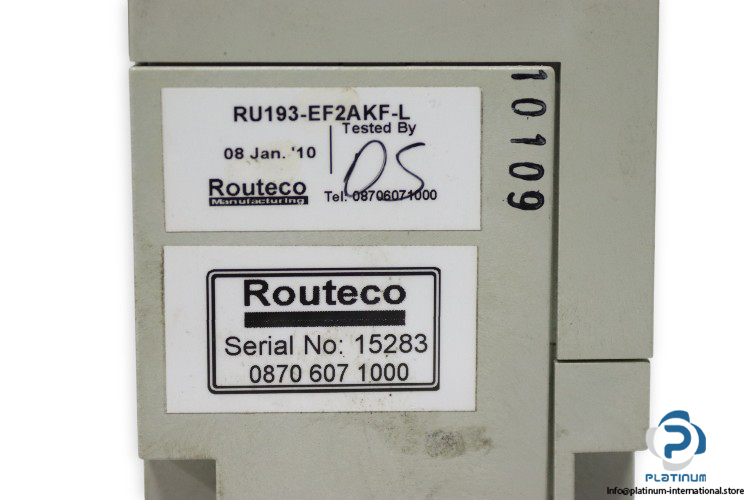

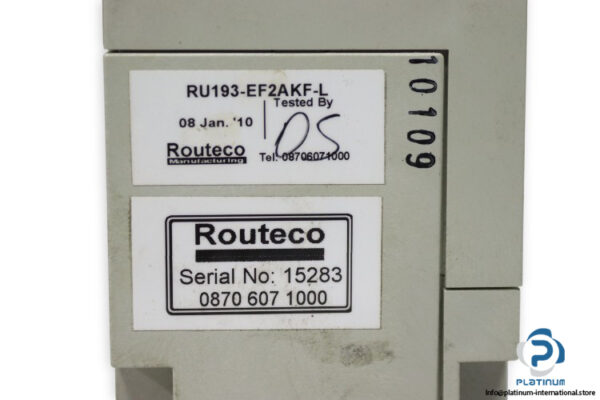

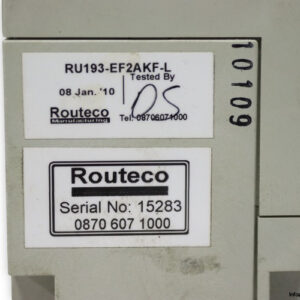

Part No.: RU193-EF2AKF-L
Serial No.: 15283
Code: 10109

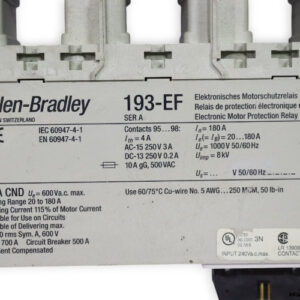

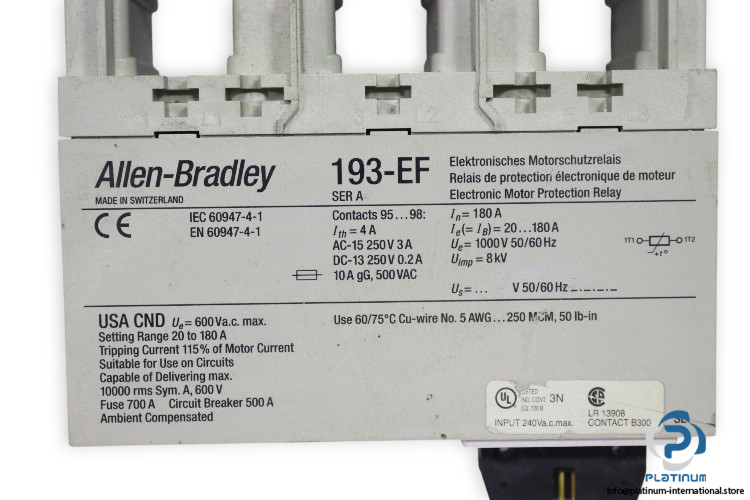

Technical Information
- Series: A
- Version: 2, Advanced
- Description: EF, Bulletin 193-EF Solid-State Overload Relay
- Adjustment Range: 20 to 180 A
- Voltage: 230 V 50/60 Hz
- Contacts 95 to 98 Current: 180 A
- Thermal Current Rating (Ith): 4 A
- Max. Rated Back-Up Fuse Current: 10 A, 500 V AC Type gG
- Rated Voltage Motor Circuit: 1000 V @ 50/60 Hz
- Rated AC Operating Current AC-15/DC-13: 250 V, 3 A / 250 V, 0.2 A
- Rated Impulse Voltage: 8 kV
- Operational Voltage: 600 V AC
- Fuse: 700 A
- Circuit Breaker: 500 A
- Use At: 60/75 °C with Cu-wire No. 5 AWG to 250 MCM, 50 lb-in
- Standard: IEC 60947-4-1 / EN 60947-4-1
