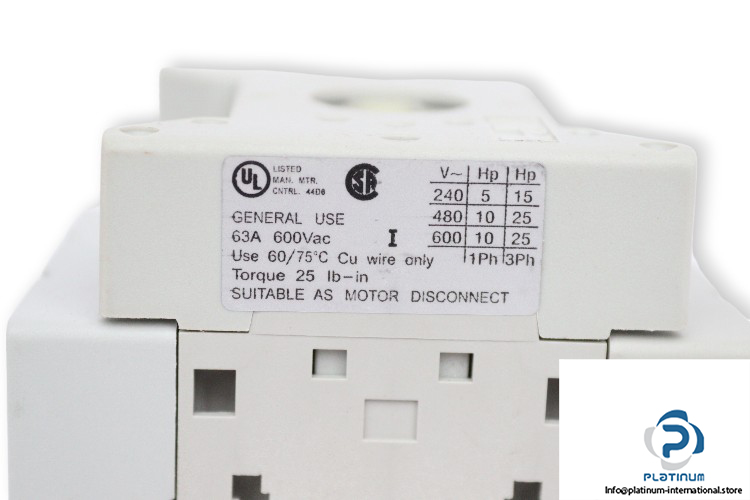

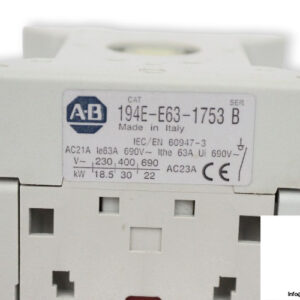

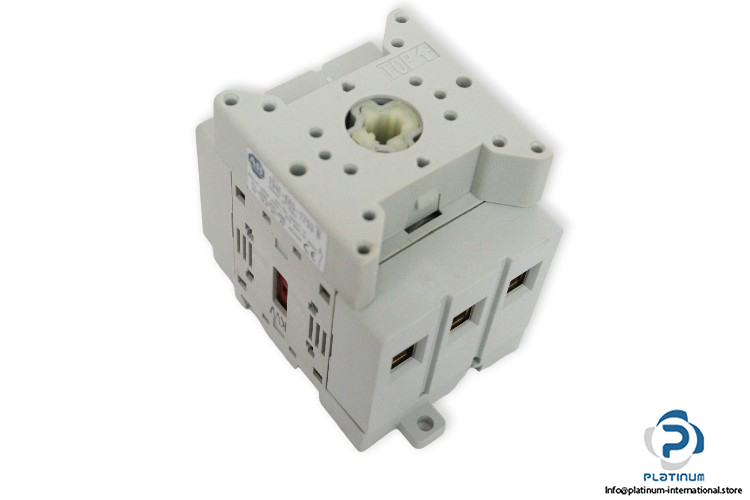

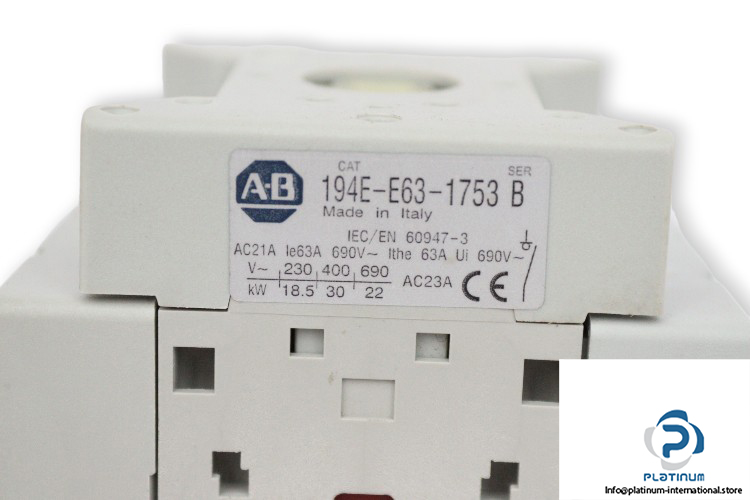

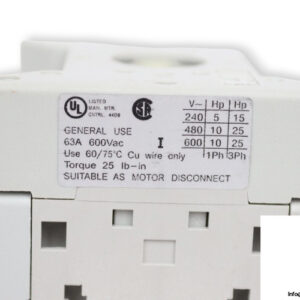

Allen-Bradley 194E-E63-1753 B Load Switch
The Allen-Bradley 194E-E63-1753 B is a robust load switch designed for reliable isolation and control in industrial electrical systems. Built to IEC/EN 60947-3 standards, it ensures safe and efficient switching performance for power circuits up to 600 V. Its compact design and front or door mounting flexibility make it ideal for control panels, machinery, and motor applications.
Manufacturer: Allen-Bradley
Type: Load Switch
Model: 194E-E63-1753 B
Series: B
Technical Information
- Rated Operational Voltage (Ue): 600 V
- Rated Impulse Voltage (Uimp): 8 kV
- Rated Current (Ie): 63 A
- Thermal Current (Ith): 63 A
- Rated Frequency: 50/60 Hz
- Lost Power Per Pole: 2.4 W
- Insulation Voltage (Ui): 690 V AC
- Standard: IEC/EN 60947-3
- Rated Power: 30 kW @ 400 V AC 50 Hz / 25 Hp @ 480 V AC 60 Hz (3 Phase)
- Torque: 25 lb-in
- Installation Type: Front / Door Mounting
- Function: OFF/ON (3-Pole, 2-Position 90°)
- Protection Class: Handles IP66, Switch Bodies IP20
- Operating Temperature: ˆ’25 / 60 °C
- Dimensions: 54 × 72 × 98.5 mm
