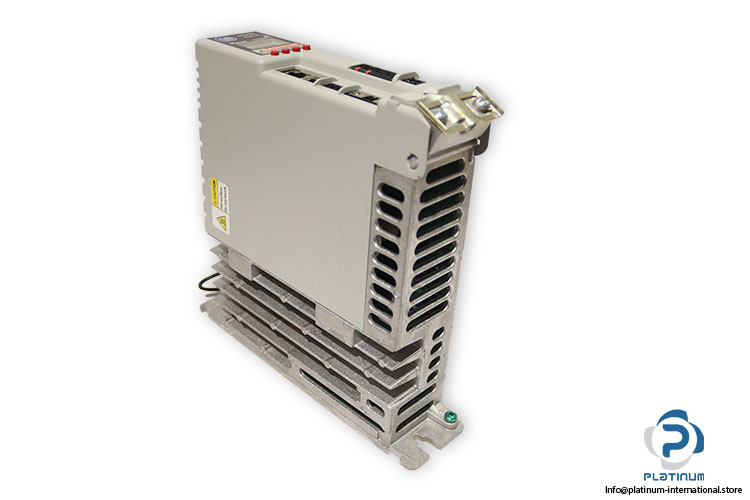

ALLEN BRADLEY 2198-H008-ERS AC Servo Drive
The ALLEN BRADLEY 2198-H008-ERS is a high-performance AC servo drive from the Kinetix 5500 series, engineered for precise motion control and reliable operation in automated industrial systems.
Manufacturer: ALLEN BRADLEY
Type: AC Servo Drive
Model: 2198-H008-ERS
Series: Kinetix 5500
SER: A

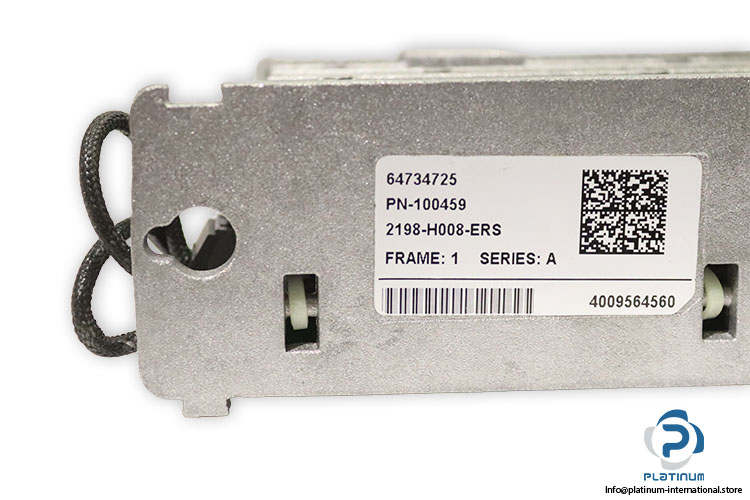

Code: 64734725
Material / PN: PN-100459
SN: 4009564560

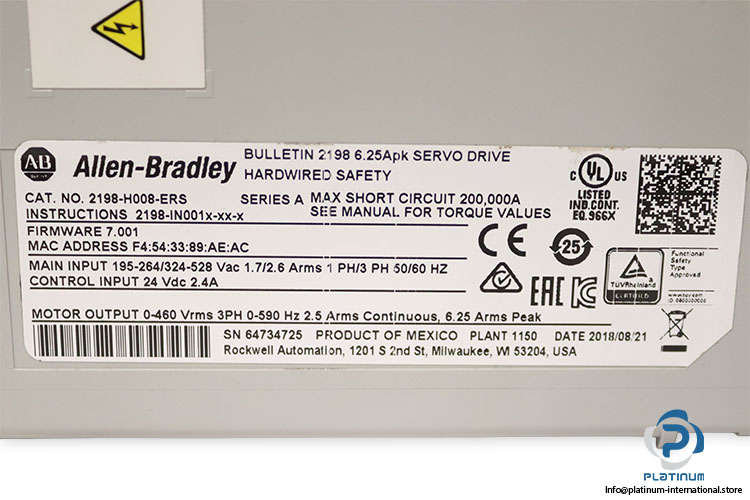

Technical Information
- Frame Size: Frame 1
- Firmware Installed: FRN 7.001
- MAC Address: F4:54:33:89:AE:AC
- Main Power Input Voltage (3-phase): 195 to 264 V AC or 324 to 528 V AC
- Main Power Input Current: 1.7 A or 2.6 A
- Frequency: 50 to 60 Hz
- Phases Supported: 1 phase or 3 phase
- Control Input: 24 V DC, 2.4 A
- Motor Output Voltage: 0 to 460 V RMS (3-phase)
- Motor Output Frequency: 0 to 590 Hz
- Continuous Current: 2.5 Arms
- Peak Current: 6.25 Arms
