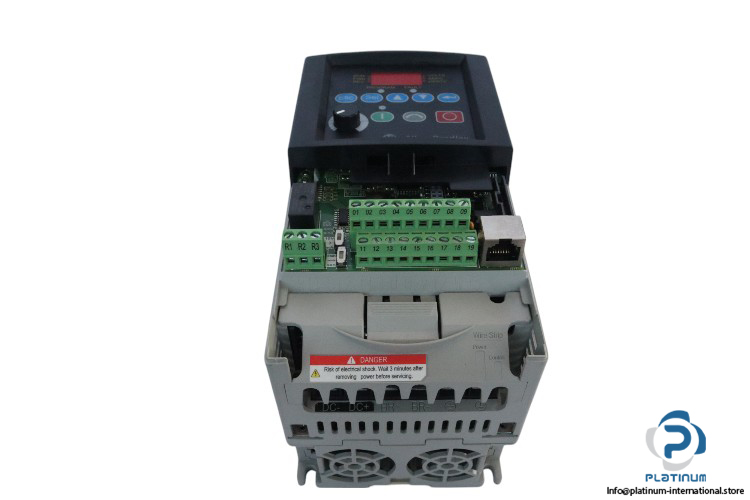

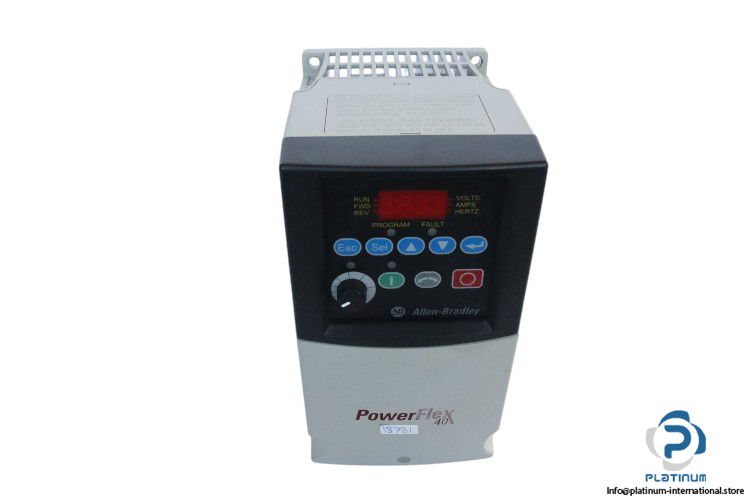

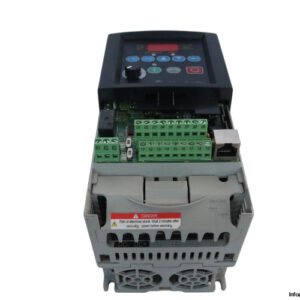

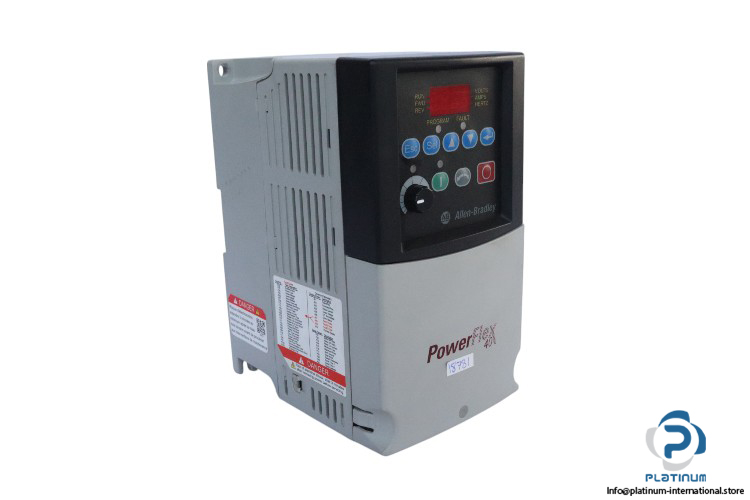

Allen-Bradley 22B-D010N104 Powerflex
The Allen-Bradley 22B-D010N104 Powerflex drive is a high-performance variable frequency drive ideal for controlling 3-phase AC motors in industrial applications. With a voltage range of 380 to 480V AC and a frequency range of 48 to 63 Hz, it delivers reliable performance and optimal control. The drive provides an output rating of 4.0 kW (5.0 kW max) and a current rating of 10.5 Amps, while the input power rating is 10.3 kVA with a current of 13.0 Amps. The drive is designed to operate within an ambient temperature range of -10°C to 50°C and features an IP20 degree of protection, ensuring safe and stable operation in various environments.

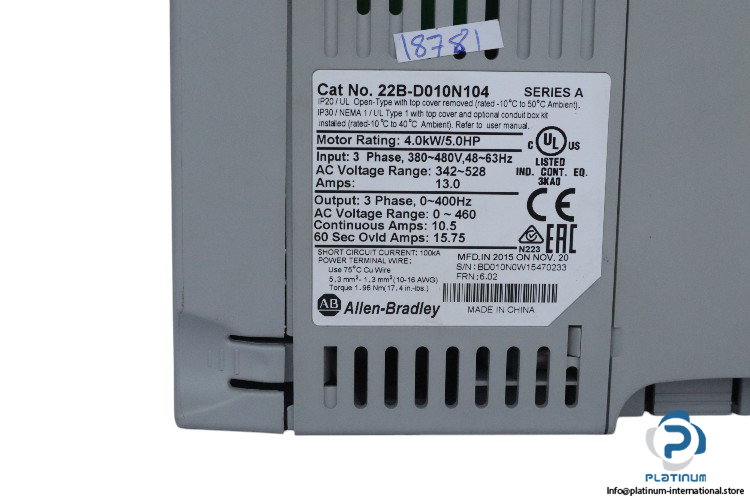

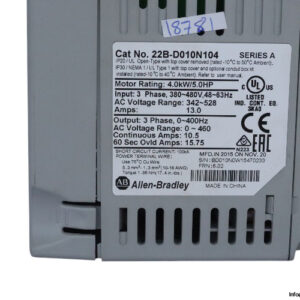

Manufacturer: Allen-Bradley
Type: Powerflex Series A
Model: 22B-D010N104
Technical Information:
- Voltage: 380…480V AC
- Frequency: 48 to 63 Hz
- Number of Phases: 3 AC
- Output Rating Power/Current: 4.0 (5.0) kW / 10.5 Amps
- Input Rating Power/Current: 10.3 kVA / 13.0 Amps
- Degree of Protection: IP20
- Ambient Temperature: -10 to 50°C
The Powerflex 22B-D010N104 drive is a reliable solution for precise motor control in industrial settings, offering energy-efficient operation and high-speed performance in demanding environments.
