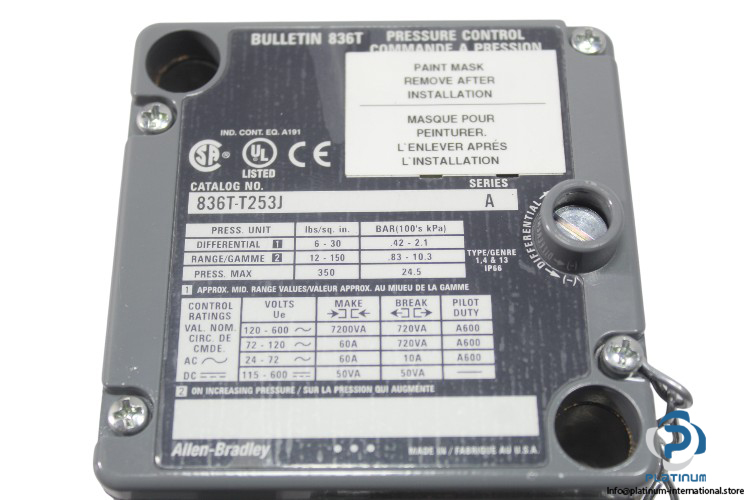

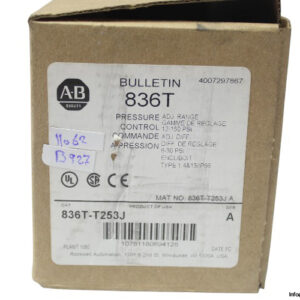

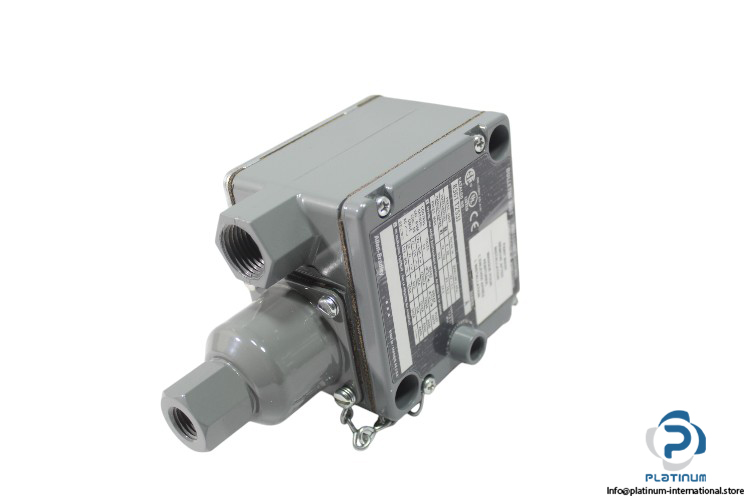

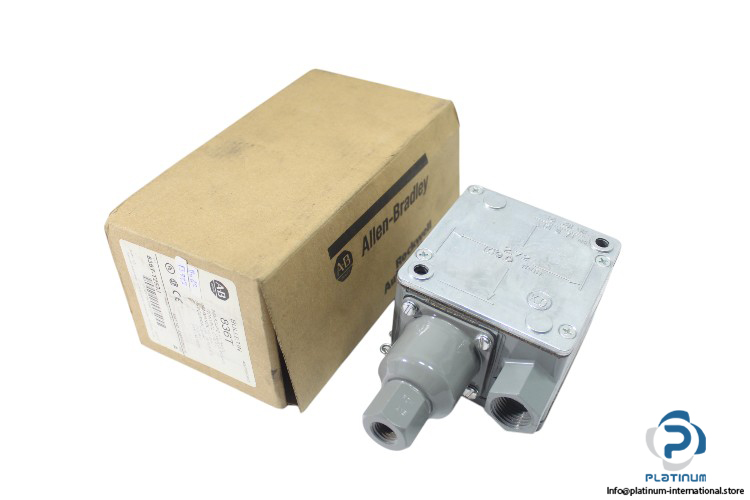

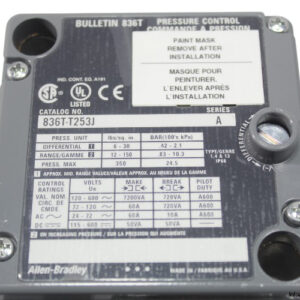

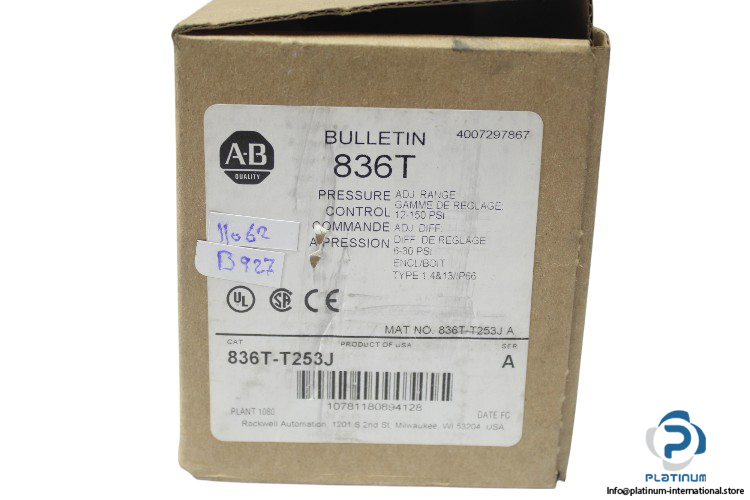

ALLEN-BRADLEY 836T-T253J Pressure Control Switch

The ALLEN-BRADLEY 836TT253J Pressure Control Switch is a high-performance device designed for precise pressure regulation in industrial applications. With an adjustable operating pressure range of 12 – 150 PSI and a maximum operating pressure of 350 PSI, it ensures reliable control and efficiency in pneumatic and hydraulic systems.

• Manufacturer: ALLEN-BRADLEY
• Type: Pressure Control Switch
• Model: 836T-T253J

Technical Information

• Series: 836T
• Adjustable Operating Pressure Range: 12 … 150 PSI / 0.83 … 10.3 bar
• Adjustable Differential Pressure Range: 6 … 30 PSI / 0.42 … 2.1 bar
• Operating Pressure Max.: 350 PSI / 24.5 bar
• Line Pressure Max.: 200 PSI
• Rated Voltage Max.: 600 V AC/DC
• Rated Current Max.: 60 A
• Pneumatic Connection: G 1/2 & G 1/5

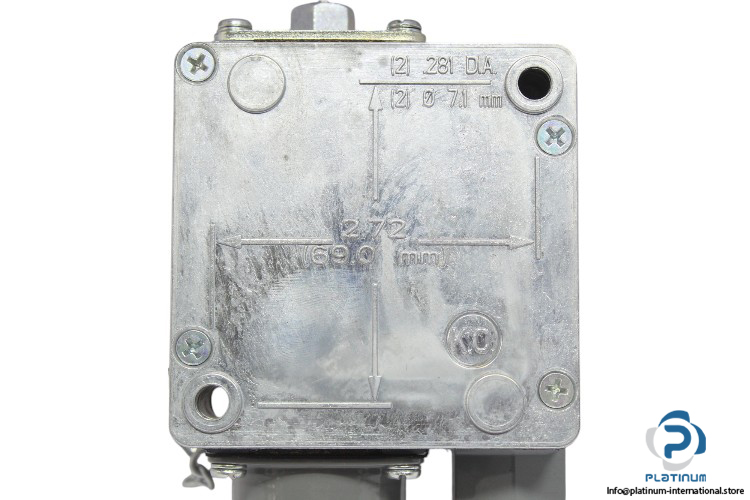

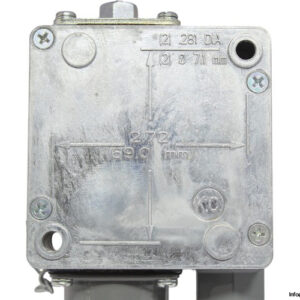

• Dimensions: 163 x 88.9 x 76.7 mm
