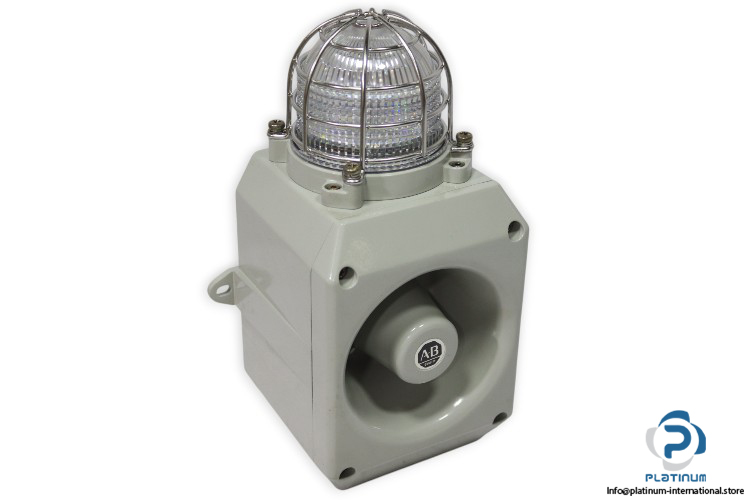

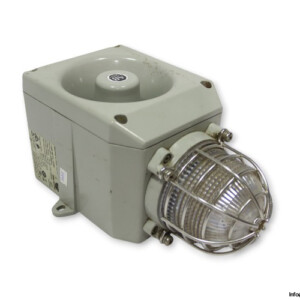

Allen-Bradley 855HM-CGMA10DL5 Operator Panel

The Allen-Bradley 855HMCGMA10DL5 Operator Panel from the 855HM-C series is a high-performance audible signaling device designed for demanding industrial environments. Built from marine-grade aluminum and offering up to 119 dB sound output, it provides reliable operation and long-term durability for alarm and warning systems.

Manufacturer: Allen-Bradley
Type: Operator Panel
Model: 855HM-CGMA10DL5
Ser.: A

Technical Information

• Series: 855HM-C
• Supply Voltage: 115 V AC
• Frequency: 50 / 60 Hz
• Sound Output: Max. 119 dB at 1 m, 3 Circuit, 45 Selectable Tones
• Material: Marine-Grade Aluminum Al Si 12 Cu (Phosphated And Powder-Coated)
• Protection Class: IP65
• Operating Temperature: -25 / 55 °C
• Dimensions: 268 x 130 x 124 mm
