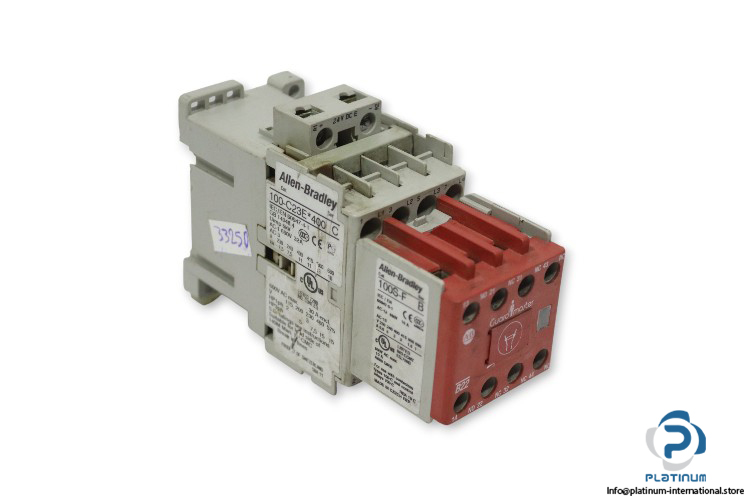

Allen-Bradley 100S-C23EJ422C Safety Contactor

The Allen-Bradley 100SC23EJ422C Safety Contactor from the Guardmaster 100S-C series is engineered for high-integrity safety circuits and demanding industrial control applications. Built for reliability, it offers enhanced safety performance, strong switching capacity, and durable operation across a wide environmental range.

Manufacturer: ALLEN-BRADLEY
Type: Safety Contactor

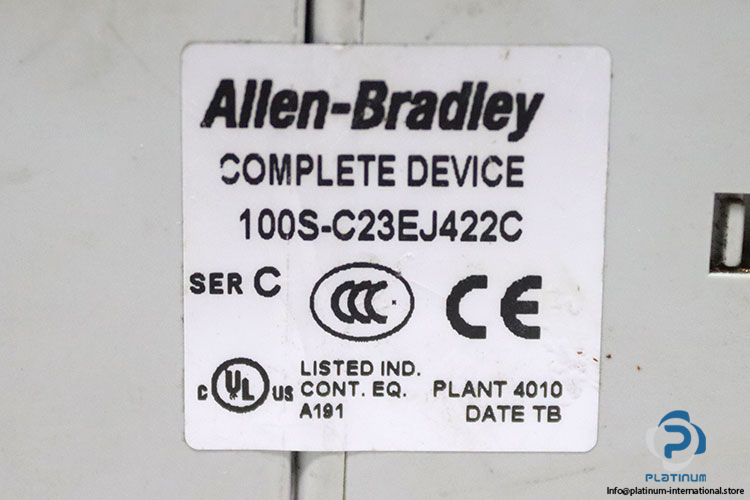

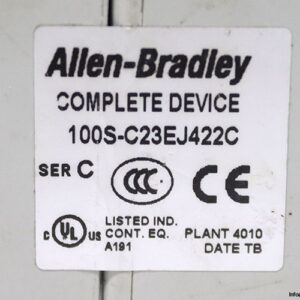

Model: 100S-C23EJ422C

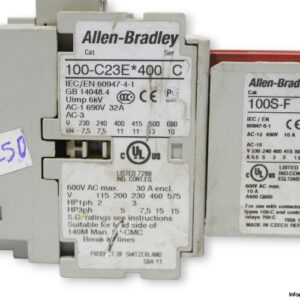

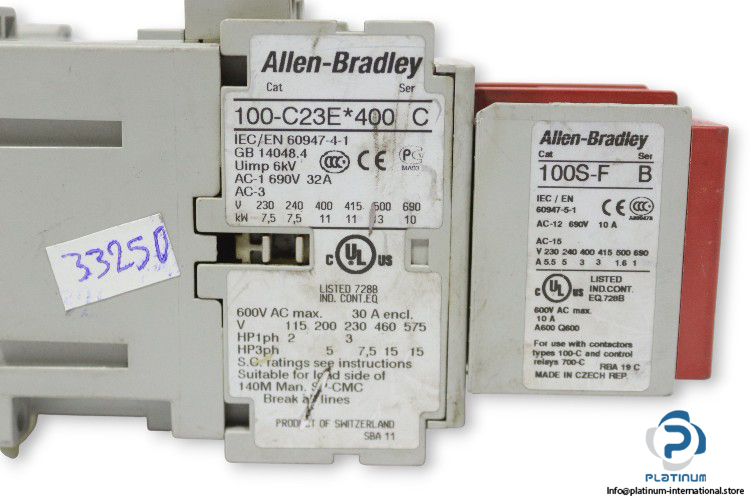

Alternative Model: 100-C23E*400 / 100S-F
Series: Guardmaster 100S-C

Technical Information

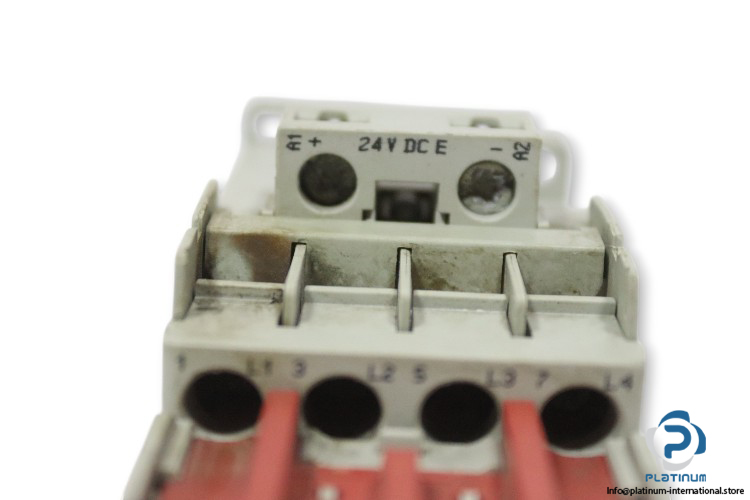

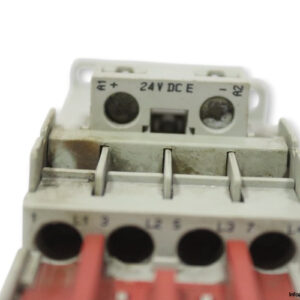

• Coil Voltage: 24 V DC
• Rated Operational Voltage Max.: 690 V AC
• Rated Operational Current: 32 A
• Frequency: 50 / 60 Hz
• Power AC-3:
• 230/240 V: 7.5 kW
• 400/415 V: 11 kW
• 500 V: 13 kW
• 690 V: 10 kW
• Poles No.: 8-Pole

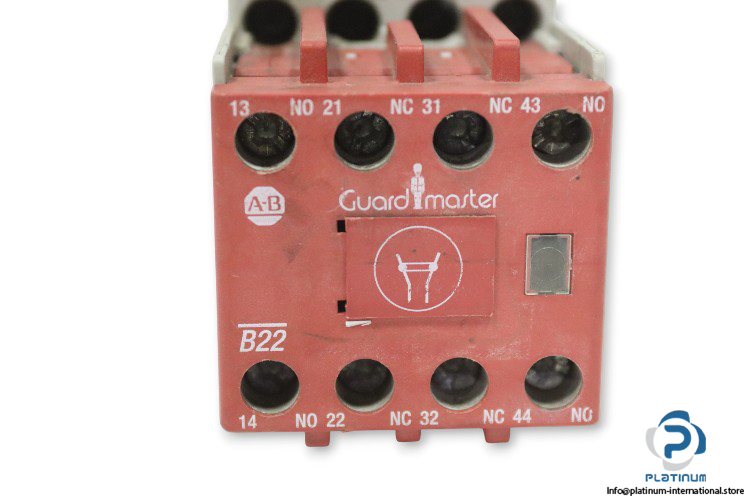

• Auxiliary Contact: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Power Contact: 4 Normally Open (NO)
• Protection Class: IP20
• Ambient Temperature: -40 / 60 °C
• Dimensions: 81 x 45 x 119.5 mm
