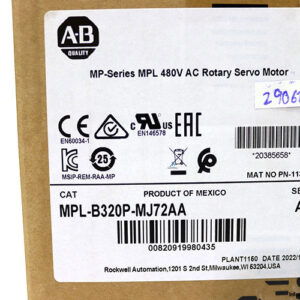

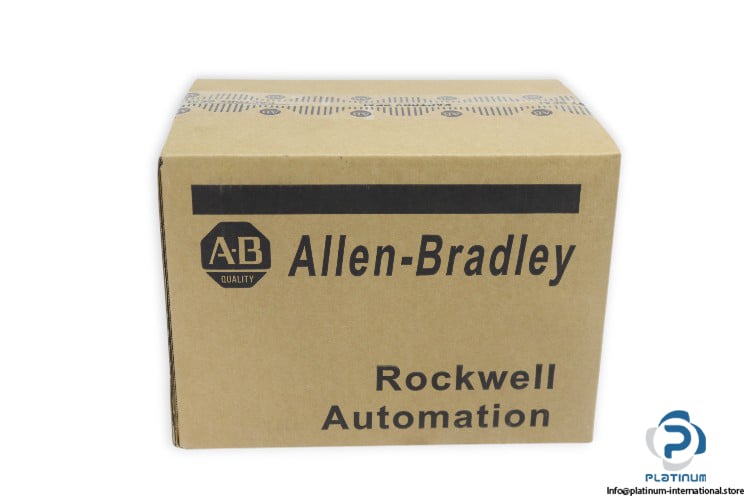

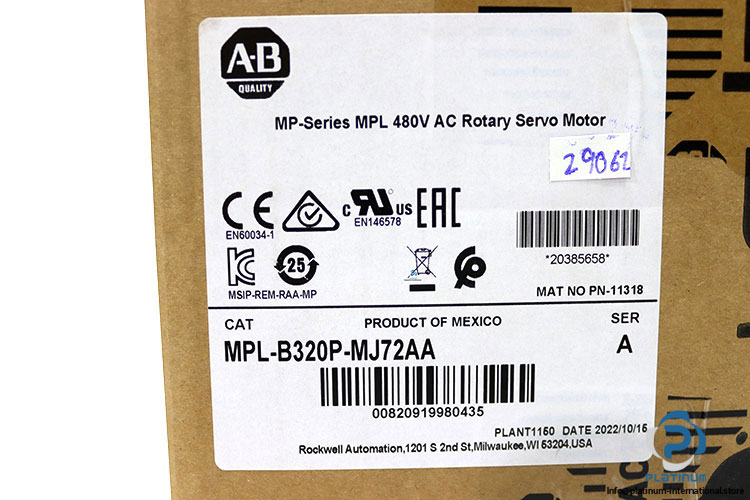

ALLEN-BRADLEY MPLB320PMJ72AA A ROTARY SERVO MOTOR

The Allen-Bradley MPLB320PMJ72AA A Rotary Servo Motor is part of the MP Series, designed for high-precision motion control. With excellent torque capacity, wide operational temperature range, and a durable IP50 protection rating, this motor ensures reliable performance in demanding automation environments.

Manufacturer: Allen-Bradley
Type: Rotary Servo Motor
Model: MPLB320PMJ72AA A
Registration No.: MSIP-REM-RAA-MP
Serial No.: 00820919980435/20385658
Codes: PN-11318/
Series: MP
Series End: A

Technical Information

• Voltage: 480 V AC
• Resolution: 1024 cycles/rev
• Magnet Stack: 50.8 mm
• Magnet Stack (Number of Magnets): 20
• Rotational Speed: 5000.0 1/min
• Power: 1.5 kW
• Continuous Stall Current: 4.5 A
• Peak Stall Current: 14 A
• Nominal Torque: 7.91 Nm
• Output Torque, Continuous: 3.05 Nm
• Torque: 2.1 Nm
• Vibration Frequency, Operational: 2000 Hz
• Ambient Temperature: -30 to 70 °C
• Degree of Protection (IP): IP50
