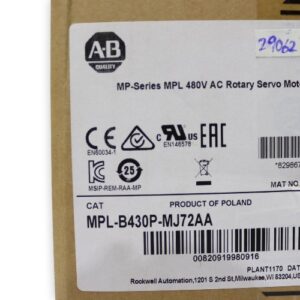

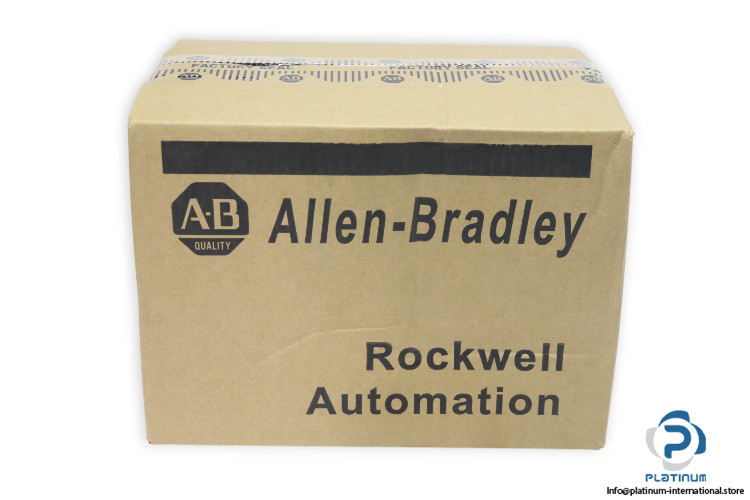

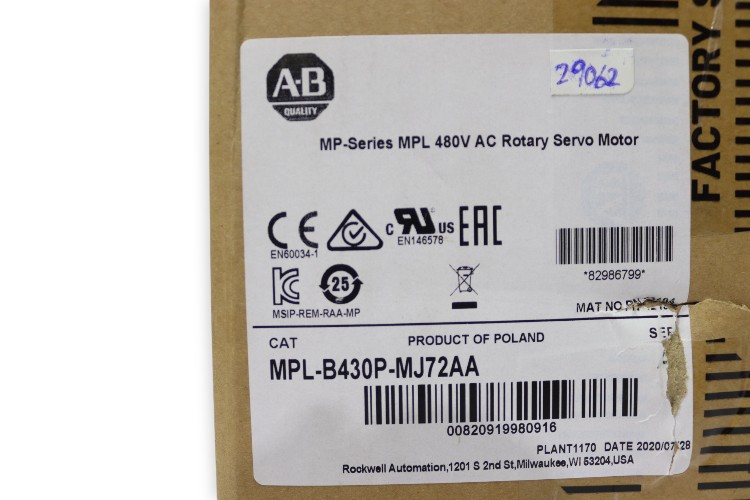

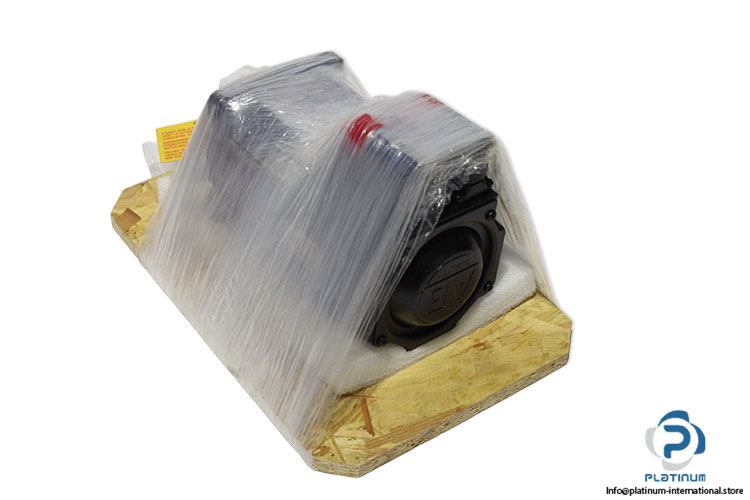

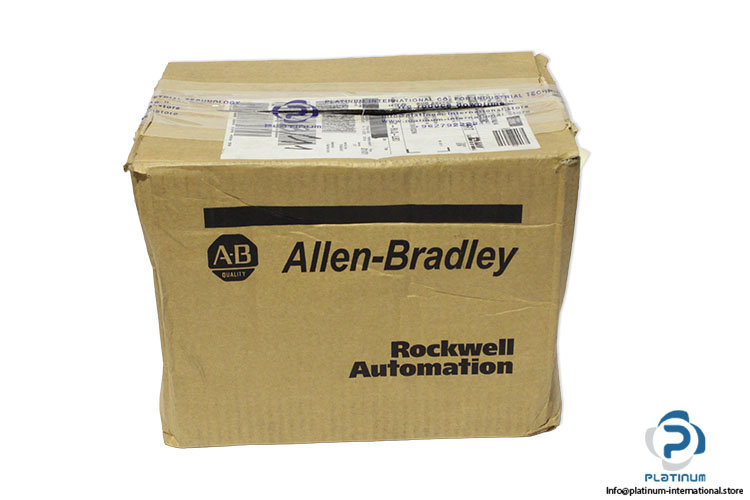

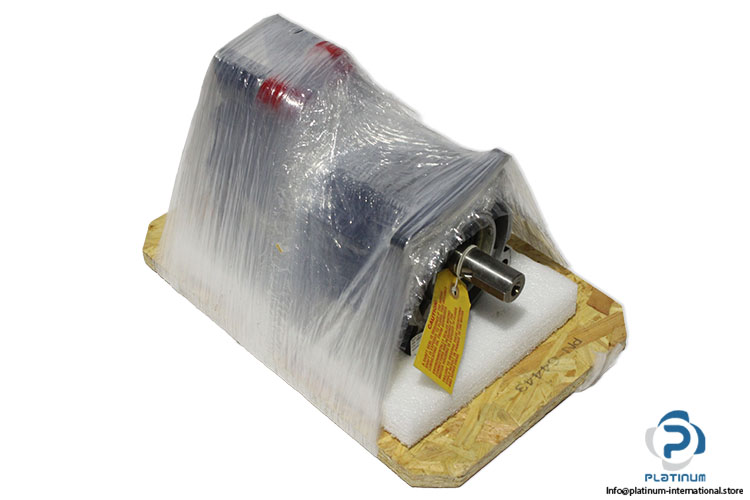

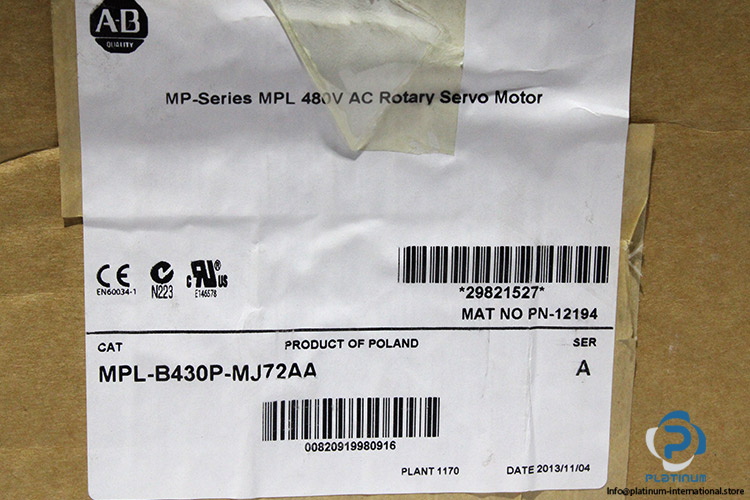

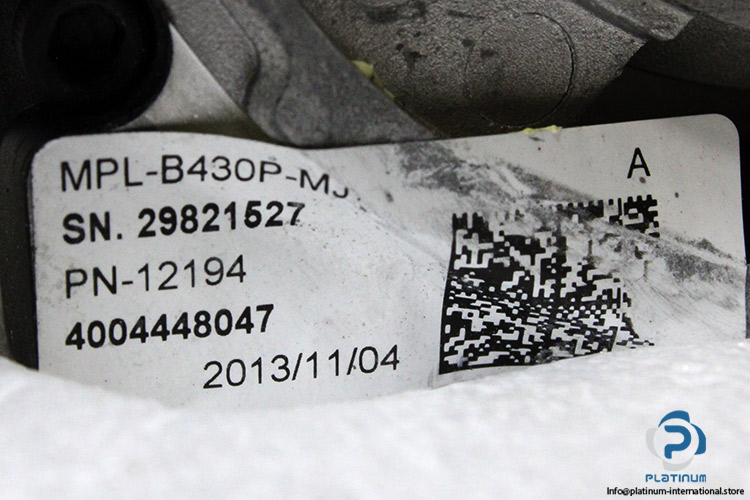

ALLEN-BRADLEY MPLB430PMJ72AA A ROTARY SERVO MOTOR

The Allen-Bradley MPLB430PMJ72AA A Rotary Servo Motor from the MP Series is built for high-performance motion control in demanding industrial applications. With a compact magnet stack, high resolution, and robust protection rating, it ensures precision, reliability, and efficiency.

Manufacturer: Allen-Bradley
Type: Rotary Servo Motor
Model: MPLB430PMJ72AA A
Registration No.: MSIP-REM-RAA-MP
Serial No.: 00820919980916/82986799
Series: MP
Series End: A

Technical Information

• Voltage: 480 V AC
• Resolution: 1024 cycles/rev
• Magnet Stack: 76.2 mm
• Magnet Stack (Number of Magnets): 30
• Rotational Speed: 5000 1/min
• Power: 2.2 kW
• Continuous Stall Current: 9.2 A
• Peak Stall Current: 32 A
• Peak Torque: 19.8 Nm
• Output Torque, Continuous: 6.55 Nm
• Vibration Frequency, Operational: 2000 Hz
• Operating Temperature: 0 / 40 °C
• Degree of Protection (IP): IP50
