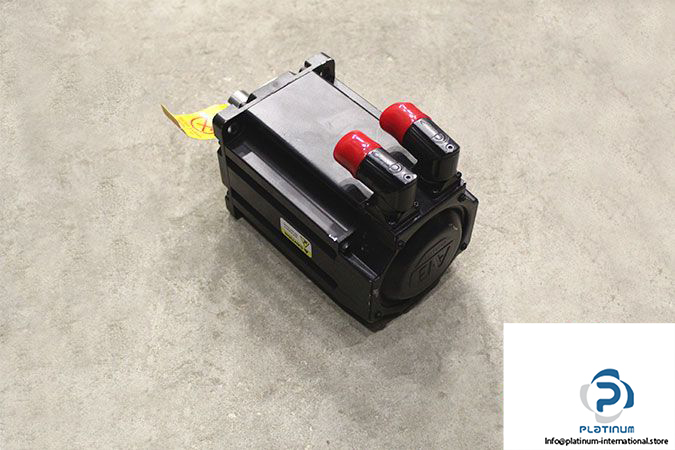

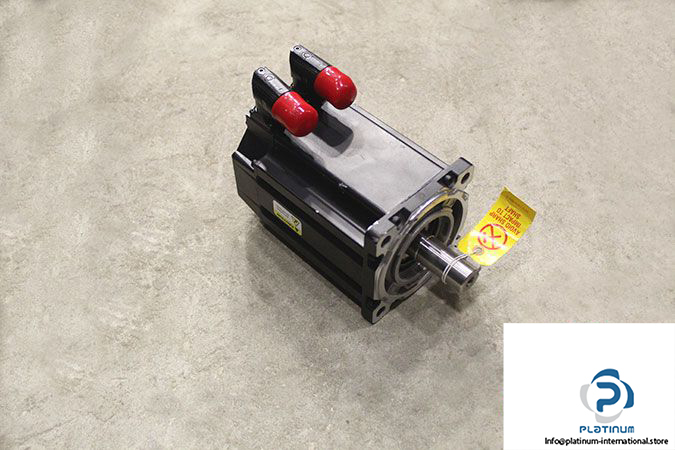

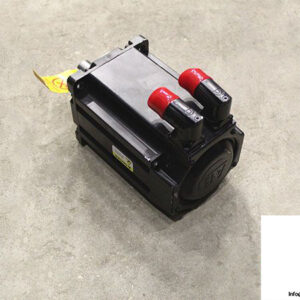

ALLEN BRADLEY MPLB4530FMJ72AA SERVO MOTOR
The Allen Bradley Kinetix MPLB4530FMJ72AA is a premium permanent-magnet rotary servo motor designed for high-performance automation systems. With high-resolution multi-turn encoder feedback and robust IP66 protection, it delivers reliable power and precision across continuous operations.
Manufacturer: Allen Bradley, Kinetix
Type: Premium Permanent-Magnet Rotary Servo Motor
Model: MPLB4530FMJ72AA
Part No.: PN-12257
Ref No.: 21099259
Series: A
Feedback: Multi-Turn High-Resolution Encoder
Technical Information
- Frame Size [mm]: 130
- Rated Voltage [V]: 460
- Cont. Stall Torque [Nm]: 8.25
- Rated Power [kW]: 2.1
- Max. Speed [rpm]: 3000
- Frequency [Hz]: 0 “ 200
- Rated Current [A]: 7
- Duty: S1 Cont.
- Ambient Temperature [°C]: 40
- Mounting Position [IM]: B5
- Protection Class [IP]: 66
- Thermal Class: H
