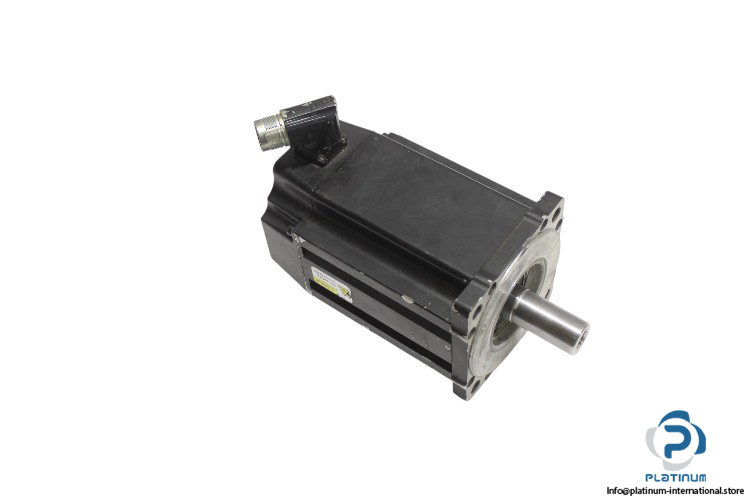

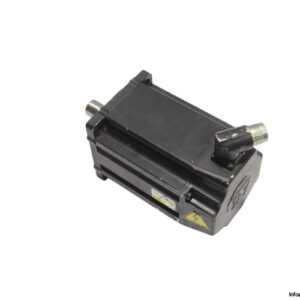

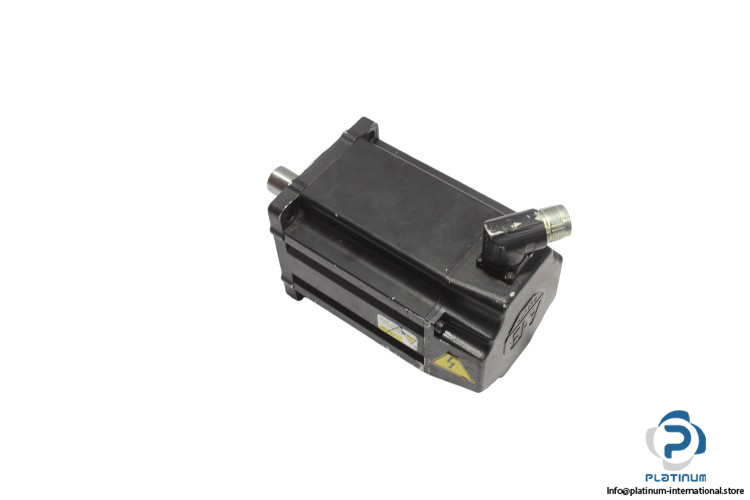

Allen Bradley VPL-B1303C-PK12AA AC Servo Motor
The Allen Bradley VPL-B1303C-PK12AA AC Servo Motor is designed for precision motion control with high efficiency and reliability. It offers a wide voltage range, high torque performance, and advanced feedback technology for demanding industrial applications.

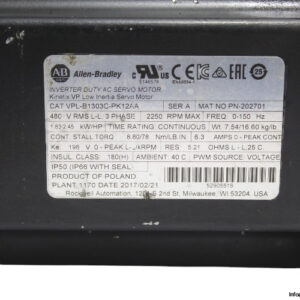

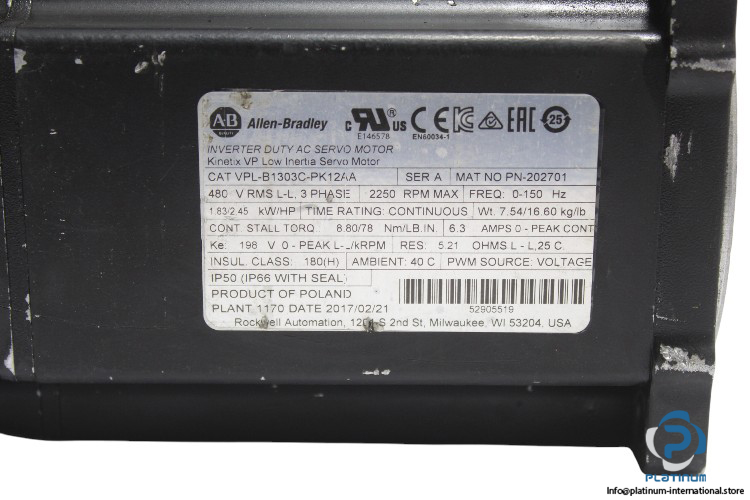

Manufacturer: Allen Bradley
Model: VPL-B1303C-PK12AA
Type: AC Servo Motor
MAT No.: PN-202701
Technical Information:
- Frame Size: 130 mm
- Magnet Stack Length: 3
- Voltage Class: B, 400 V
- Shaft Key: K, Smooth shaft
- Voltage: 480 V
- Rated Power: 1.83 kW, 2.45 Hp
- Rated Speed: 2500 rpm
- Max. Speed: 2250 rpm
- Continuous Stall Torque: 8.80/78 Nm/lb.in
- Current: 6.3 A
- Frequency: 0 to 150 Hz
- Temperature: 40 °C
- Resistance: 5.21 ohms

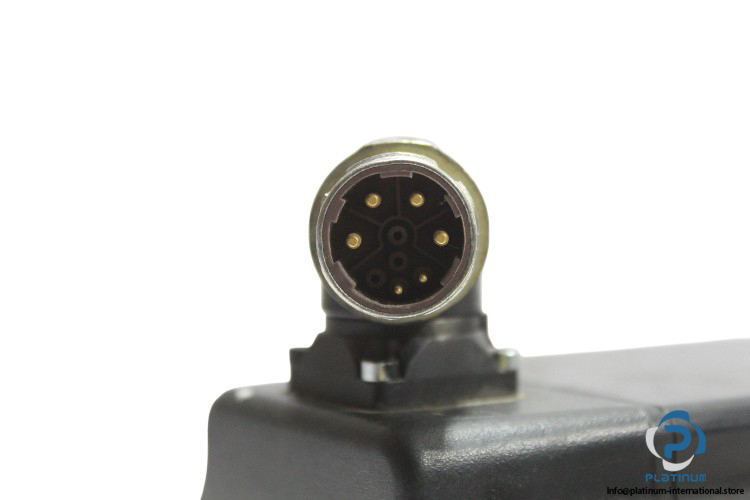

- Connector: Single SpeedTec DIN connector, right angle, 325° rotatable
- Feedback: P, 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol)
- Insulation Class: H
- Protection Class: IP50 (IP66 with Seal)
