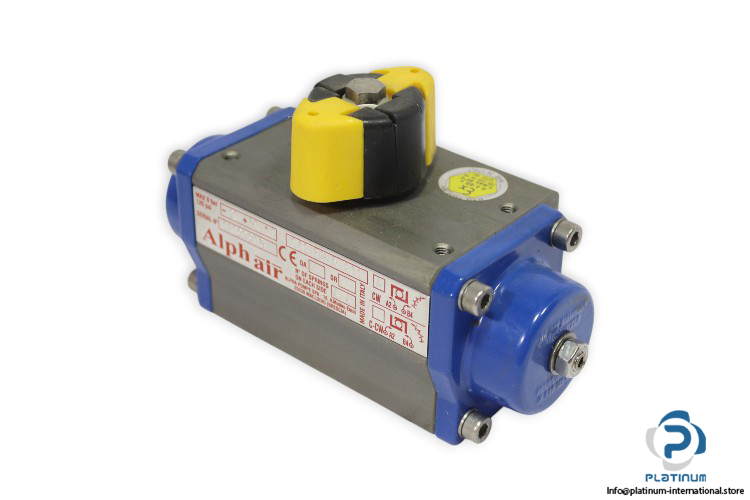

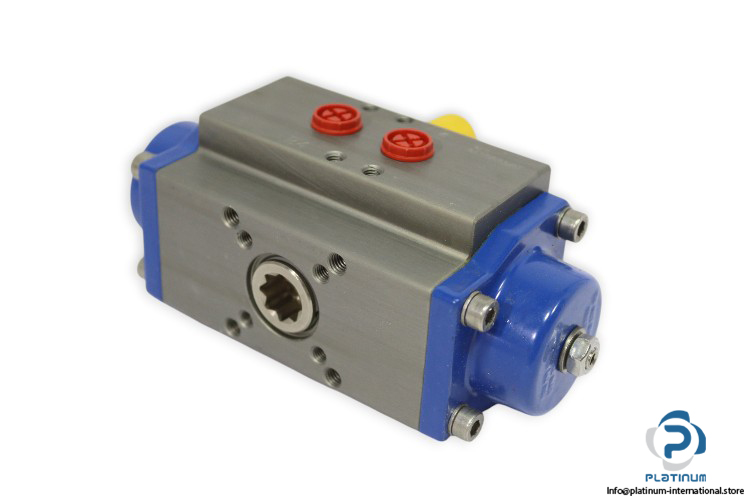

ALPH AIR AC042GQ11SR Pneumatic Actuator

The ALPH AIR AC042GQ11SR Pneumatic Actuator is a reliable spring return unit designed for precise valve control in industrial automation. Built from anodized aluminum, it provides dependable performance, smooth rotation, and explosion proof safety for demanding pneumatic operations.

Manufacturer: ALPH AIR
Type: Pneumatic Actuator
Model: AC042GQ11SR
Series: AP

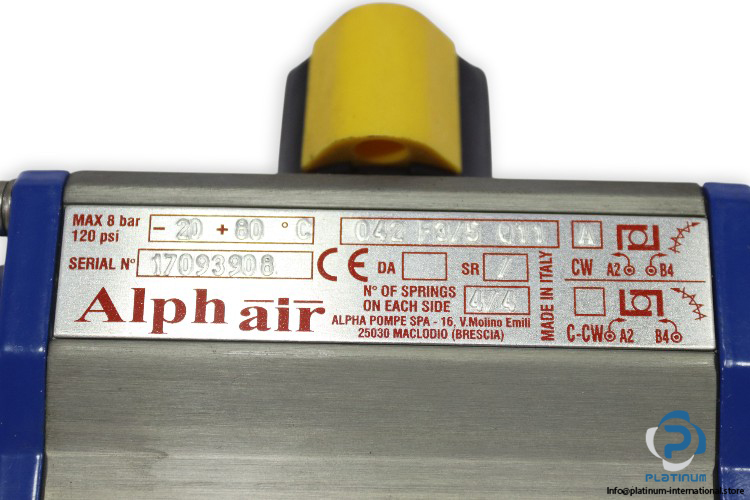

Serial No.: 17093908

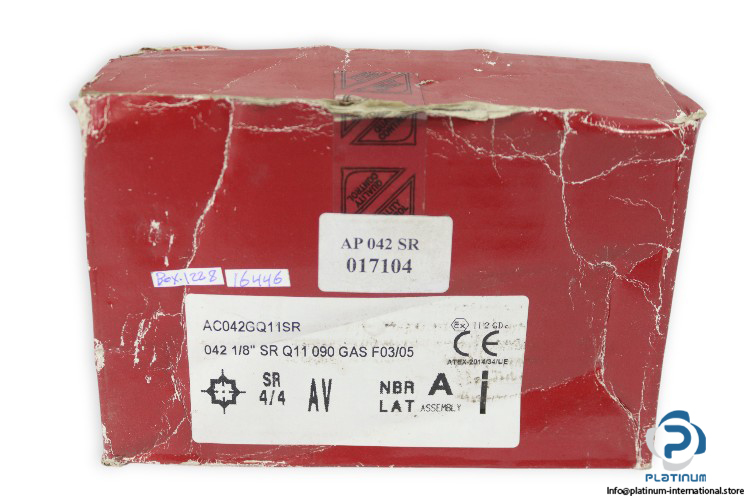

Mnr: 042 1/8 inch SR Q11 090 GAS F03/05

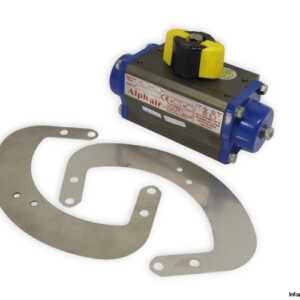

Ref No.: 017104, AP 042 SR, 042 F3/5 Q11

Technical Information

• Operating Pressure: Max 8 bar (120 psi)
• Operating Temperature Range: -20°C to +80°C
• Actuation Type: Spring Return
• Operation: Single Acting
• Rotation Direction: CW (Clockwise): A2 – B4, CCW (Counterclockwise): A2 – B4
• Port Connections: 1/8 inch GAS
• Body Material: Anodized Aluminum
• Springs: Precompressed Cartridge
• Seals: NBR
• Explosion Proof: Yes
