Manufacturer: Alpha

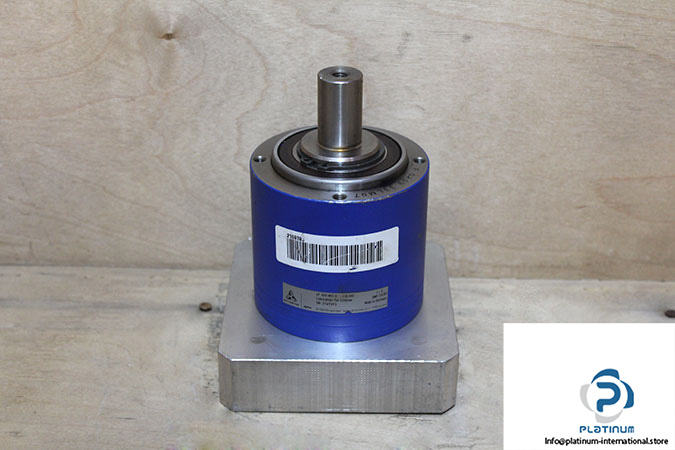

Type: Planetary Gear Box

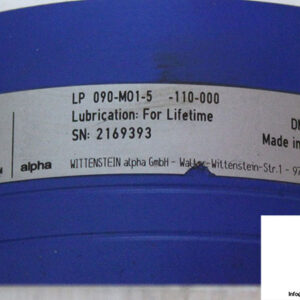

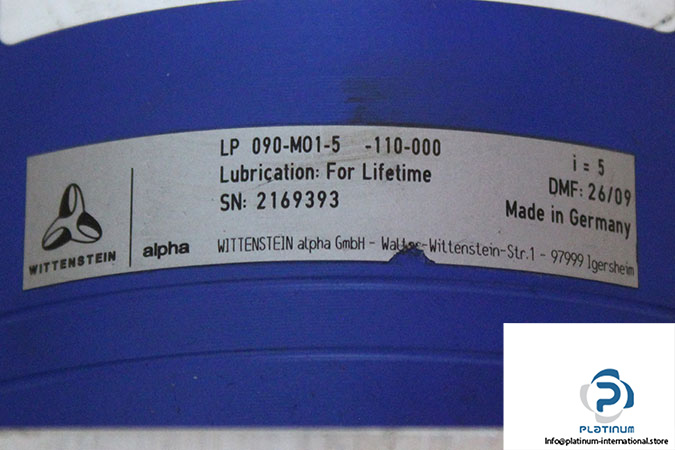

Model: LP90-M01-5-110-000

Ratio [i]: 5

Size: 90

Nominal Torque [Nm]: 45

Max. Backlash [arcmin]: Standard ≤ 12/Reduced ≤ 8

Number of Stage: 1

Shaft [mm]: 22

Hollow Shaft [mm]: 19

Flange Diameter [mm]: 120

Ambient Temperature [°C]: -15…40

Lubrication: Lubricated for Life

Protection Class [IP]: 64
