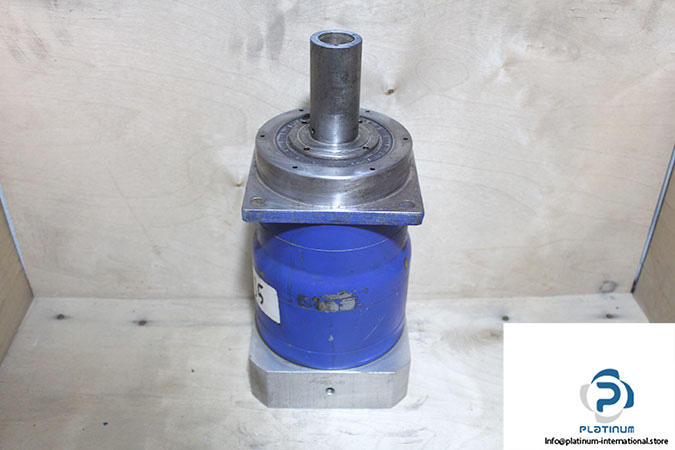

Alpha SP140S-MF2-35-0K1-2S Planetary Gear Box

The Alpha SP140S-MF2-35-0K1-2S Planetary Gear Box is a high-precision, durable, and compact gear unit designed for demanding industrial motion control applications. It provides exceptional torque transmission, minimal backlash, and long service life. The gearbox is ideal for servo systems, automation machinery, and robotic applications requiring accurate positioning and high efficiency.

Manufacturer: Alpha
Type: Planetary Gear Box
Model: SP140S-MF2-35-0K1-2S

Technical Information

Ratio [i]: 35
Max./Nominal Torque [Nm]: 670/536
Max. Backlash [arcmin]: Standard ‰¤ 5 / Reduced ‰¤ 3
Number of Stage: 2
Shaft [mm]: 40
Hollow Shaft [mm]: 32
Flange Diameter [mm]: 150
Ambient Temperature [°C]: -15 / 40
Lubrication: Lubricated for Life
Protection Class [IP]: 65
