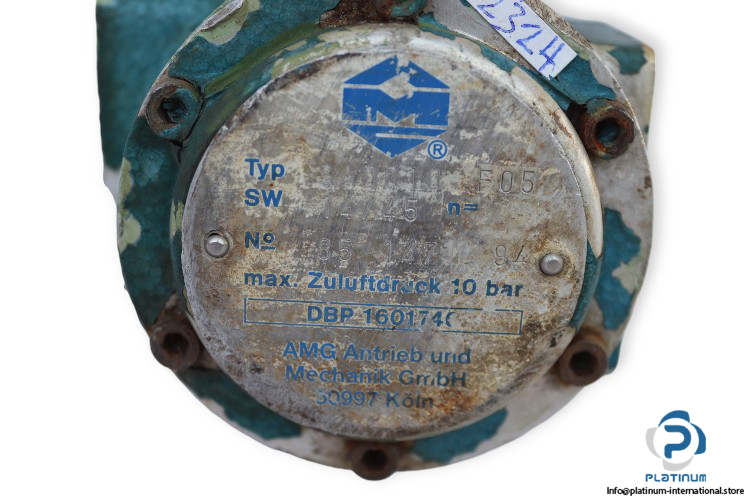

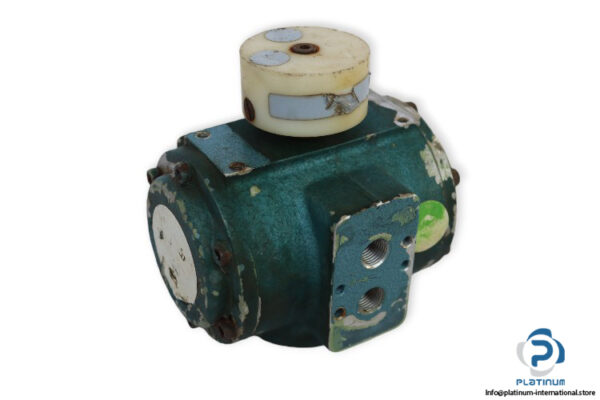

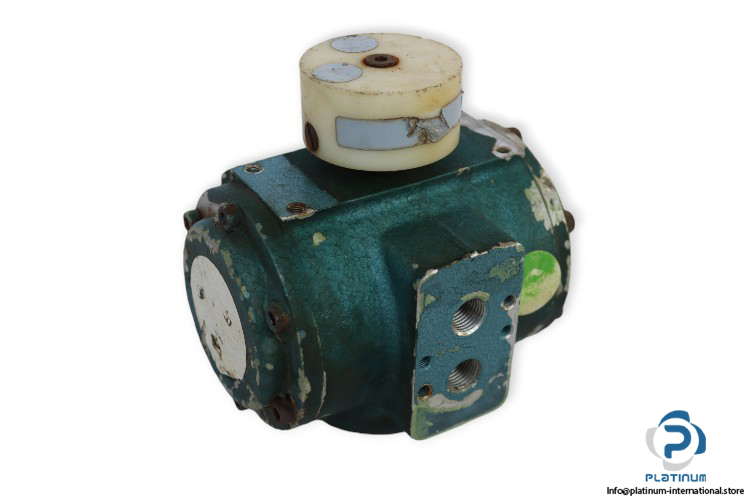

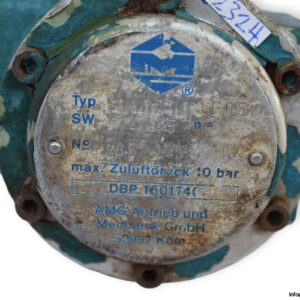

Manufacturer: AMG / PESCH
Type: Double-Acting Pneumatic Actuator
Series: SAD
Model: SAD010F05
Art No.: DBP 1601746

Size: 10
Design: Double-Piston Quarter Turn Actuator
Design features: rack-pinion principle
Type of Action: Double-Acting
Stroke volume: 0.3 dm³
Operating times: 0,1 sec
Degree of Rotation: 45°
Pressure: 10 bar max.
Ambient Temperature: -25 … +80°C
Mounting flange: F05
Square dimensions: 14 mm
Pneumatic Connection: G1/4
Material:
End cap: Aluminum alloy, coated
Piston: Aluminum alloy
Screw: Stainless steel
Housing: Aluminum alloy, anodized
