Manufacturer: AMG

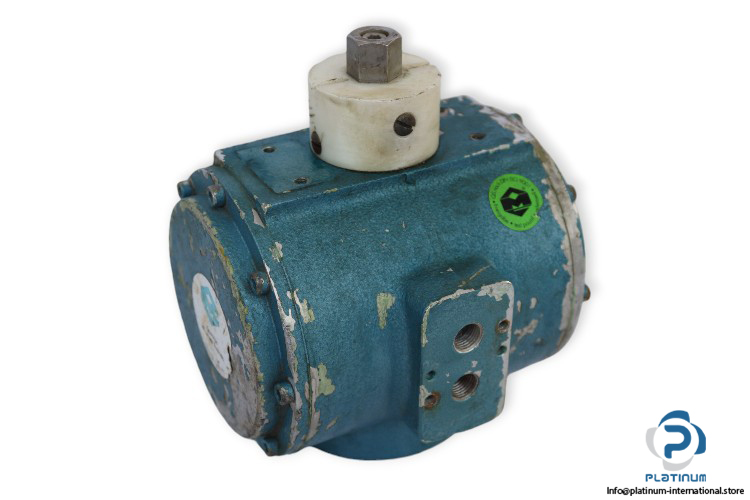

Type: Double-Acting Pneumatic Actuator
Series: SAD
Model: SAD020F07

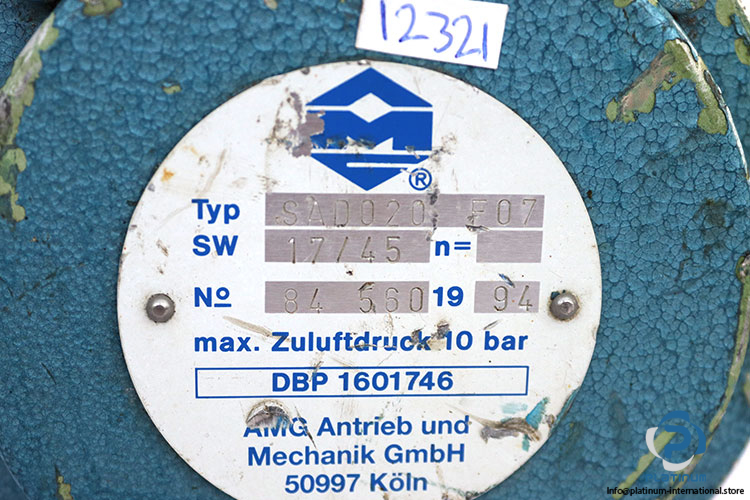

Art No.: DBP 1601746

Size: 20
Design: Double-Piston Quarter Turn Actuator
Design features: rack-pinion principle
Type of Action: Double-Acting
Stroke volume: 1 dm³
Operating times: 0,4 sec
Degree of Rotation: 45°
Pressure: 10 bar max.
Ambient Temperature: -25 … +80°C
Connection flange: F07
Square dimensions: 17 mm
Pneumatic Connection: G1/4
Material:
End cap: Aluminum alloy, coated
Piston: Aluminum alloy
Screw: Stainless steel
Housing: Aluminum alloy, anodized
