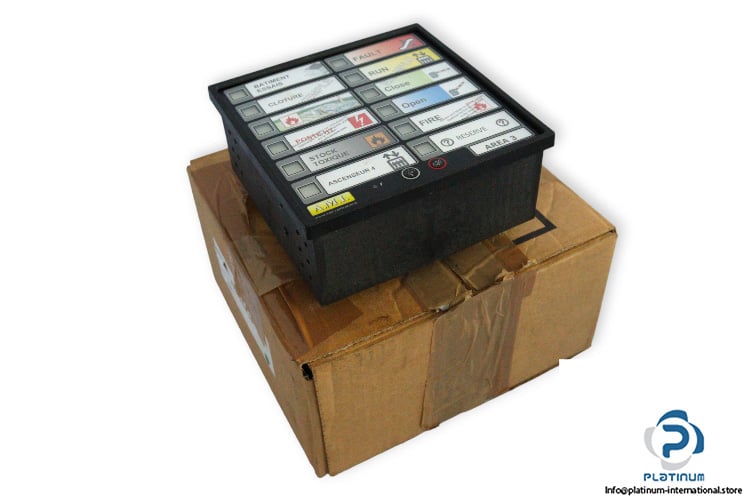

Manufacture: Ami-Control
Type: Alarm Annunciator

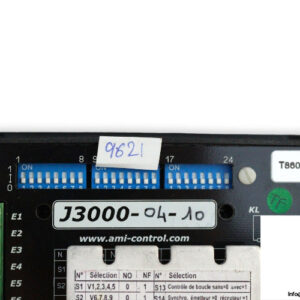

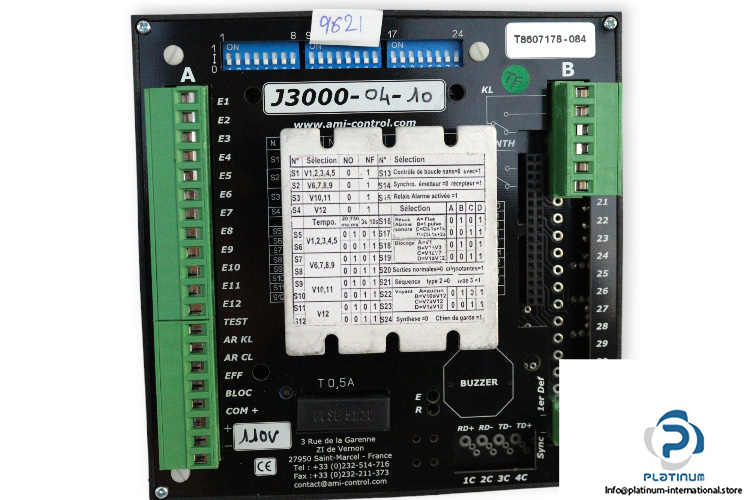

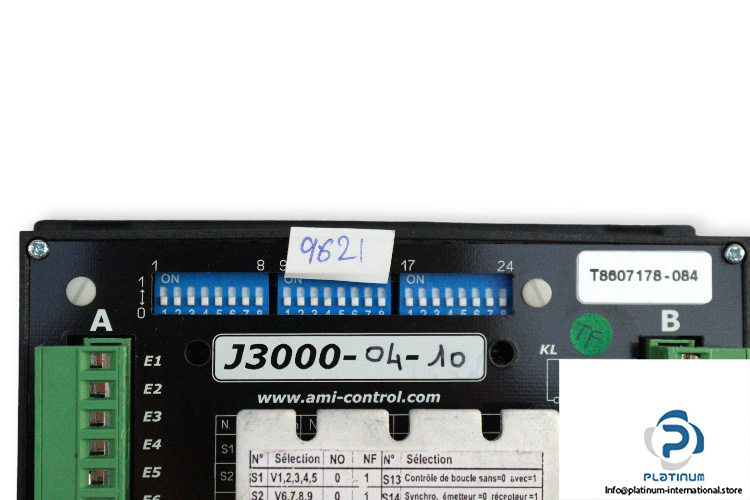

Model: J3000-04-10

Main Characteristics:

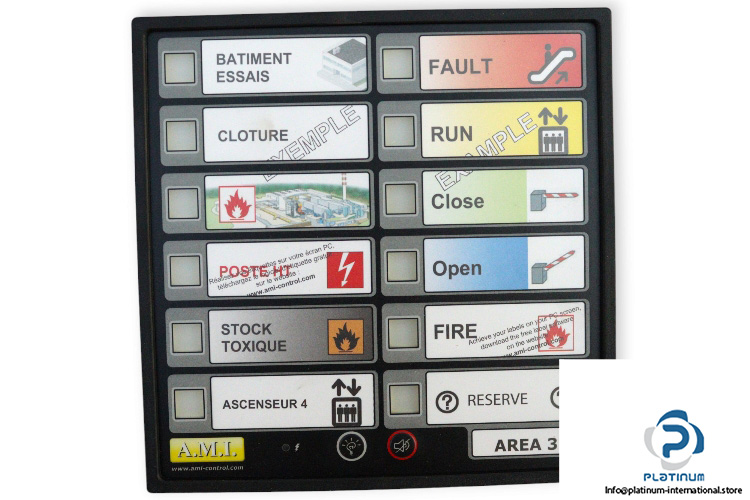

– 12 «high luminosity» LEDs with large visible area 10×10 mm in even in non-attenuated light
– Labels with high legibility and easy of do (typewriter, laser printer) that can be slid behind a transparent window
– Rapid and compact clustering of light indicators on cabinet front
– Fast assembly using clips
– 138×138 mm cut-out in compliance with DIN 144×144 standard. – Possibility to choose the Led’s colors
– Long life LEDs (eliminates short-circuit problems with fi lament lamps)
– Low consumption.
– LED Indicator of voltage presence
– Box delayed-infl ammation type
Voltages: 125 V DC
Minimum consumption: 100 mA/24V
Maximum consumption: 395 mA (300mA for 110Vdc)
Input current: 2.4 mA
Permitted line resistance on input: 2 kOhms
Output current: 150mA max.
Relay contact: 1RT 6A/12 V DC – 0.15A/240 V AC
Temperature (at nominal voltage): -10 … +60°C
