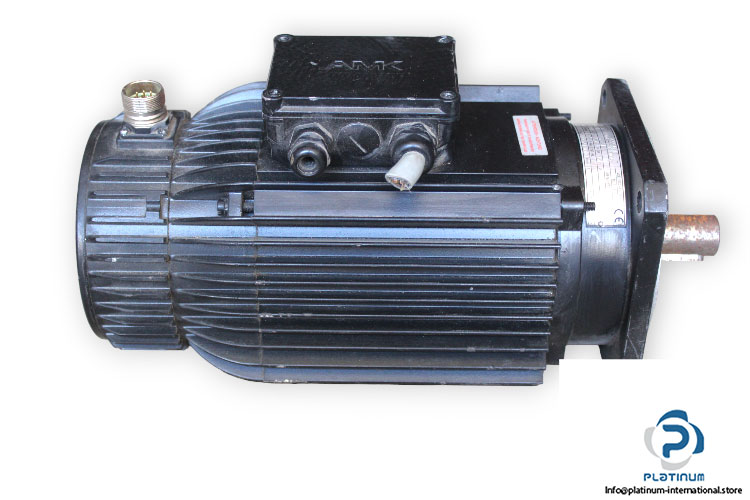

AMK DV7-6-4-RB0 ELECTRIC MOTOR
The AMK DV7-6-4-RB0 Electric Motor is engineered for continuous-duty applications with high-performance efficiency and reliable braking capabilities. This compact and powerful unit supports a rated speed of 3000 rpm and can reach up to 10000 rpm, making it ideal for precise motion control in demanding industrial environments.

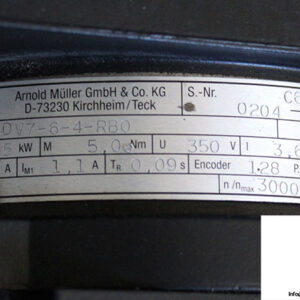

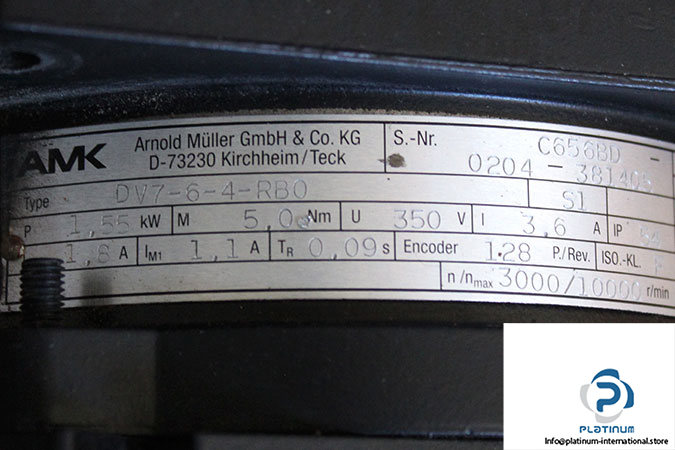

Manufacturer: AMK
Type: Electric Motors
Model: DV7-6-4-RB0
Serial No.: C656BD-0204-381405
Technical Information
- Rated Voltage: 350 V
- Rated Power: 1.55 kW
- Rated Torque: 5.0 Nm
- Rated Current: 3.6 A
- Rated Speed: 3000 rpm
- Max. Speed: 10000 rpm
- Encoder: 1.28 R/Rev
- Duty: S1
- Brake Voltage: 24 VDC
- Brake Current: 0.5 A
- Brake Torque: 5.0 Nm
- Protection Class: IP54
- Thermal Class: F
