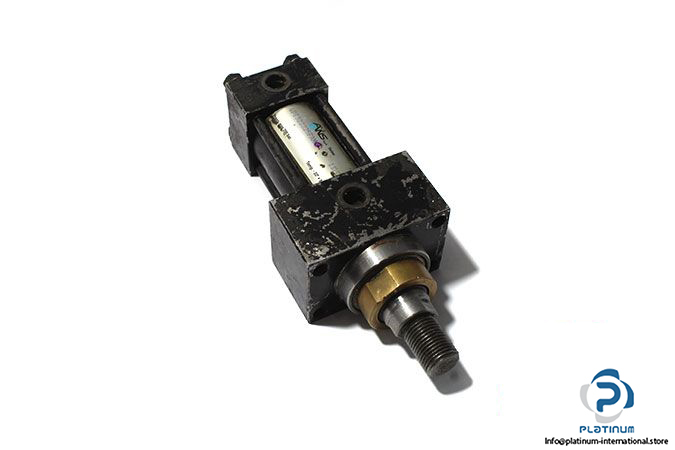

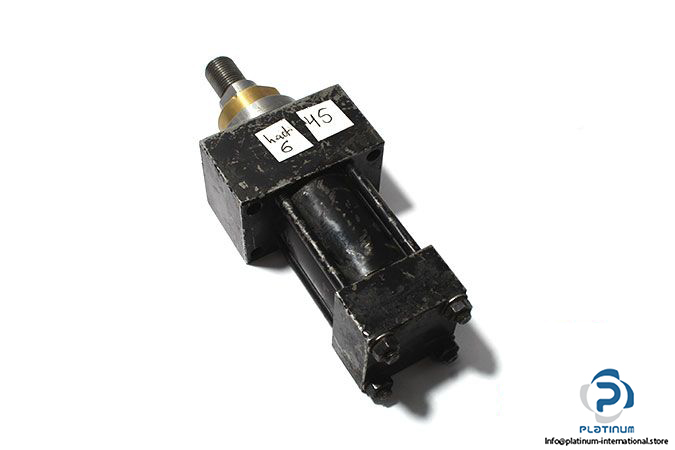

Manufacturer: ANS s.p.a
Type: Hydraulic Actuator

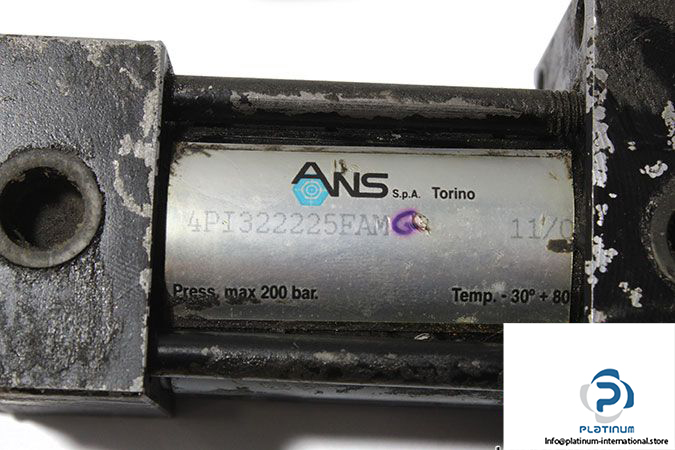

Model: 4PI 322225FAM
Piston Diameter: 32 mm
Rod Diameter: 22 mm
Stroke: 25 mm
Cylinder Shape: Tie – Rod
Mounting style: Head rectangular flange
Mode of operation: Double-Acting
Maximum operating pressure: 200 bar
Piston rod end: external thread
Connection: G ¼ ”
Weight: 1.9 kg
