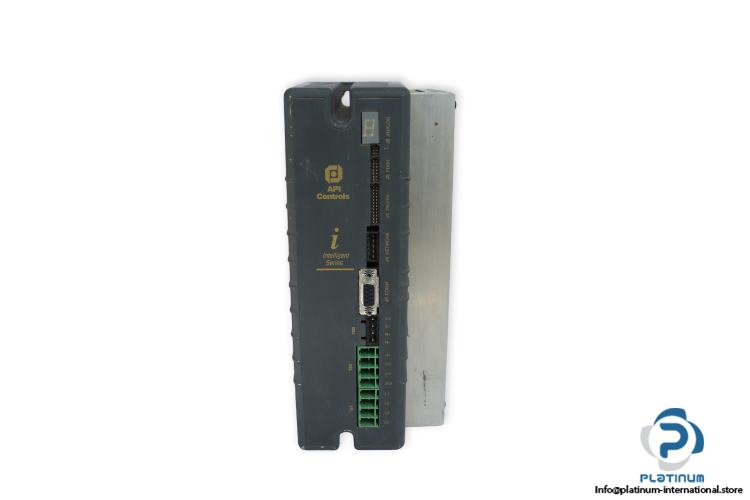

API CONTROLS PS3310IE DIGITAL SERVO DRIVE

The API Controls PS3310IE is an intelligent digital servo drive engineered for brushless DC motor applications. Designed for high-performance industrial automation, it offers versatile control, reliable feedback integration, and compact form for space-constrained environments.

Manufacturer: API Controls
Type: Digital Servo Drive
Model: PS3310IE
Serial No.: 98280402
Family: Intelligent

Technical Information

• Input Voltage: 230 V AC / 1,3 phase
• Input Current: 10 A max.
• Input Frequency: 50/60 Hz
• Output Voltage: 325 V DC
• Output Current: 10 A max.
• Feedback Device: Encoder / Hall
• Analog Inputs: 2 Differential, ±10 VDC, 10-bit Resolution
• Digital Inputs: 7 Total (ENABLE, RESET, 3 Isolated 5“30 VDC Configurable, 2 HSI3)
• Motor Types: Brushless DC
• Analog Outputs: None
• Digital Outputs: DRIVEOK, FOLDBACK, 2 Isolated (5“30 VDC, 5 mA Max)
• Dimensions: 254 x 233 x 94.5 mm
