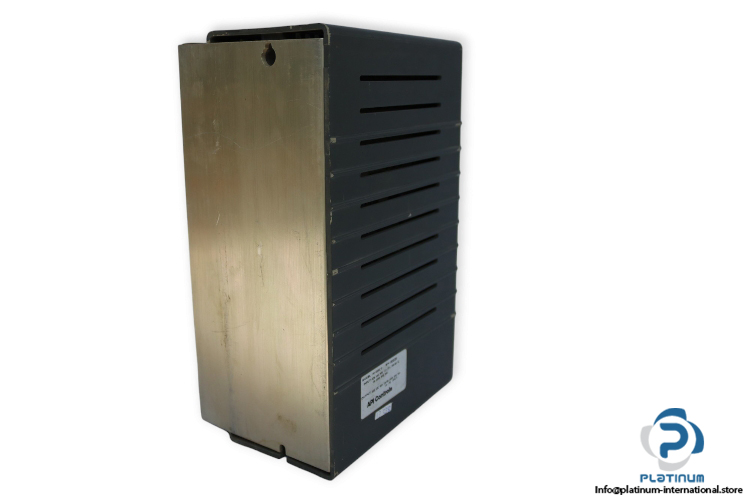

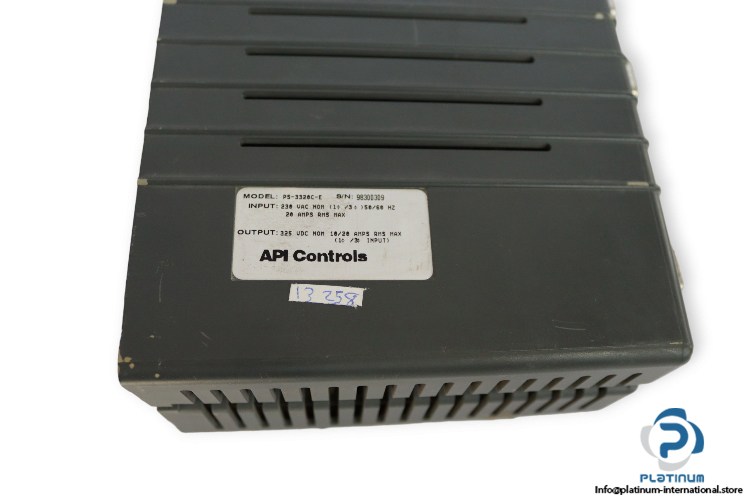

API CONTROLS PS3320CE DIGITAL SERVO DRIVE
The PS3320CE from API Controls is a powerful and versatile digital servo drive from the Centerrial family. Designed to support various motor types, it delivers reliable performance in demanding industrial automation systems. With robust input/output capabilities and flexible feedback support, it is ideal for precision motion control applications.
Manufacturer: API Controls
Type: Digital Servo Drive
Model: PS3320CE
Family: Centerrial
Technical Information
- Input Voltage: 230 V AC (1 or 3 Phase)
- Input Current: 20 A Max
- Input Frequency: 50/60 Hz
- Output Voltage: 325 V DC
- Output Current: 16/26 A Max
- Feedback Device: Encoder / Hall
- Analog Inputs: 2 Differential, ±10 VDC, 10-bit Resolution
- Digital Inputs: 12 Total; ENABLE, RESET, 8 Isolated (5“30 VDC, Source/Sink Configurable), 4 HSI
- Supported Motor Types: Brushless DC, Brush DC, Induction VF, Vector
- Analog Outputs: 2 Outputs ±10 VDC, 12-bit Resolution
- Digital Outputs: 13 Total; DRIVEOK[5], 12 Isolated (5“30 VDC, 30 mA Max, Short Circuit Protected)
- Dimensions: 254 x 233 x 94.5 mm
