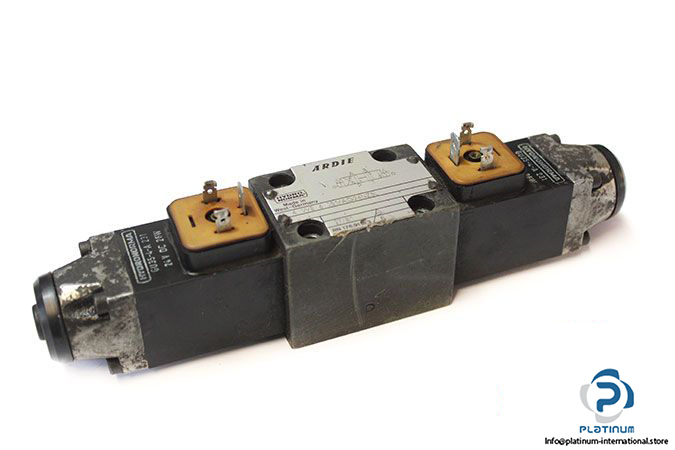

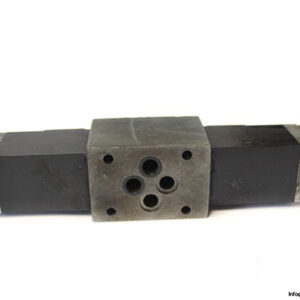

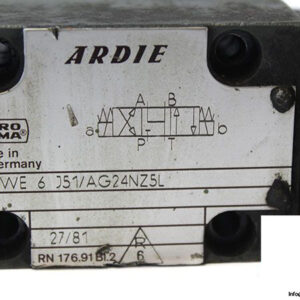

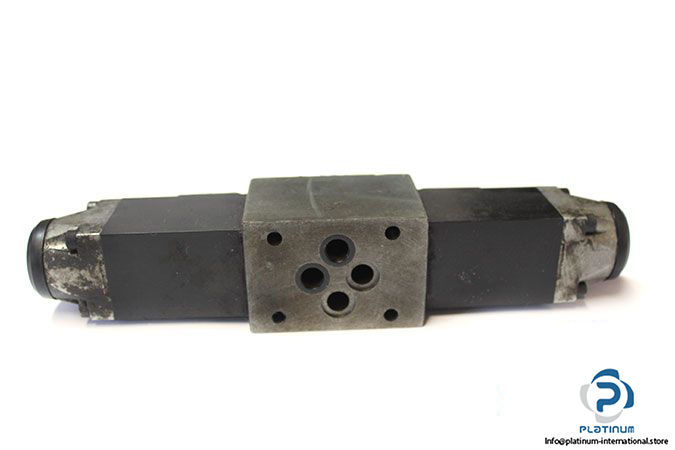

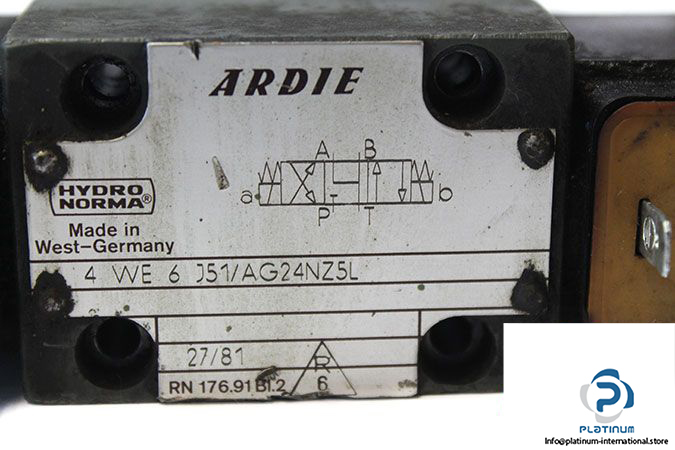

Manufacturer: ARDIE

Type: Directional Control Valve

Model: 4 WE 6 J51/AG24NZ5L

Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :350 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 80 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

Attachment: ARDIE GU35-4-A 231 SOLENOID COIL

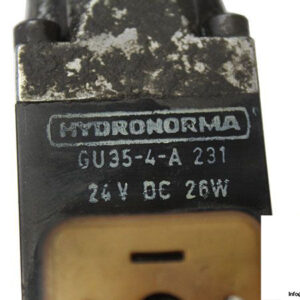

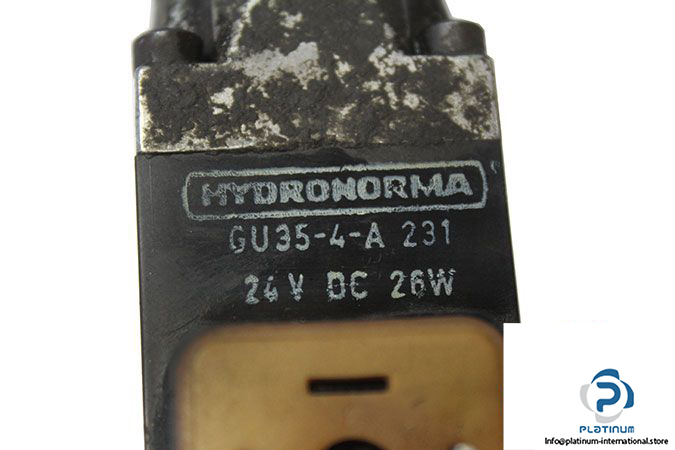

Manufacturer: ARDIE

Type: Solenoid Coil

Model:  GU35-4-A 231

Voltage: 24 VDC

Power:26W

Weight: 1.62 kg
