ASAHI UCF 206 FOUR-BOLT SQUARE FLANGE UNIT

bearings-image-008

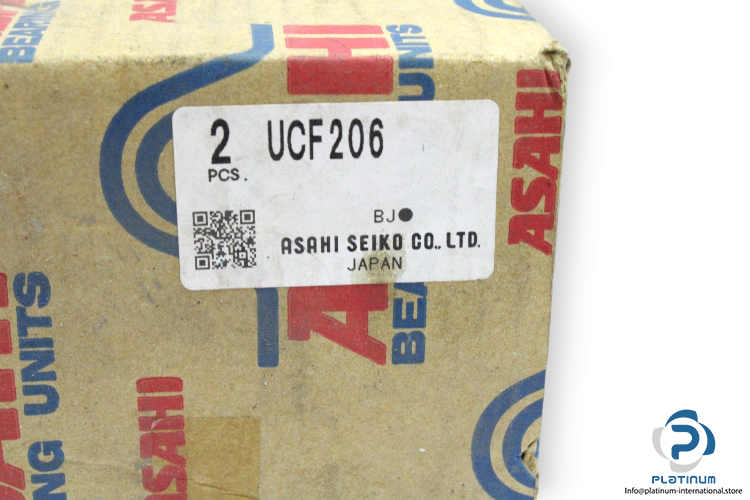

asahi-UCF-206-four-bolt-square-flange-unit-(new)-(carton)-1

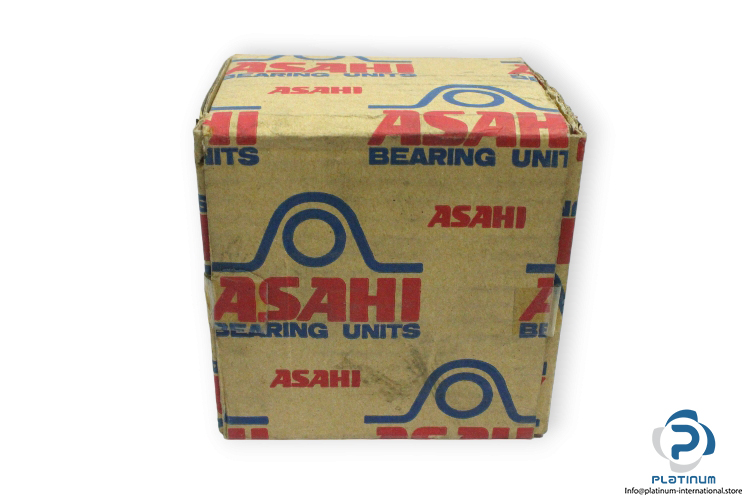

asahi-UCF-206-four-bolt-square-flange-unit-(new)-(carton)-2
bearings-image-008
asahi-UCF-206-four-bolt-square-flange-unit-(new)-(carton)-1
asahi-UCF-206-four-bolt-square-flange-unit-(new)-(carton)-2

ASAHI UCF 206 FOUR-BOLT SQUARE FLANGE UNIT

Manufacturer: Asahi
Type: Four-Bolt Square Flange Unit
Model: UCF 206
Part No.: UC 206
Housing No.: F206

SKU: 1005360 Category: Tags: , , , , , , , , , ,
In stock: 9 pcs
Low stock
Only 9 items remaining.
Add to quote

Manufacturer: Asahi
Type: Four-Bolt Square Flange Unit
Model: UCF 206
Part No.: UC 206
Housing No.: F206

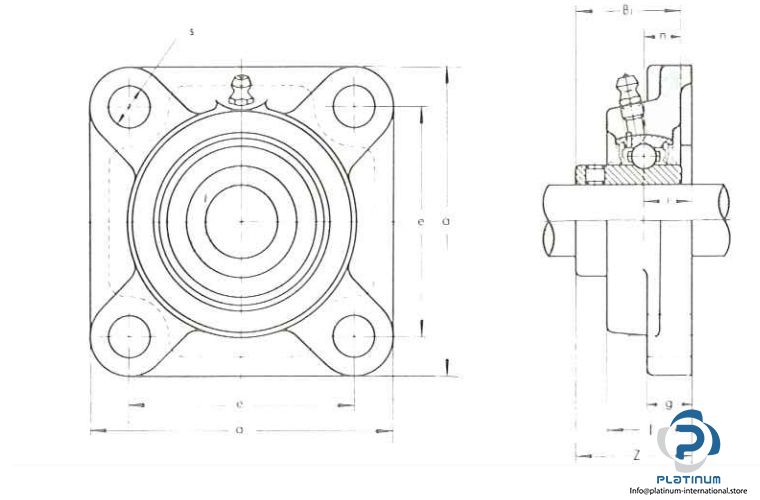

Dimensions
Bore Diameter d: 30 mm
Overall Length a: 108 mm
Width of inner ring Bi: 38.1 mm
Distance Between Attachment Bolts e: 83 mm
Overall unit width z: 40.2 mm
thread size (s): 12mm
Bolt Size: M10
Locking Device: Set Screw

Weight 2,1 kg
Condition

New
Model

UCF 206
Manufacturer

Asahi
Type of Product

FOUR-BOLT SQUARE FLANGE UNIT
Shelf No.

240421
