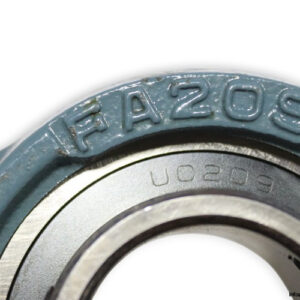

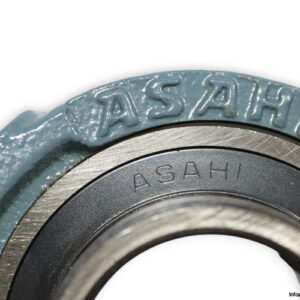

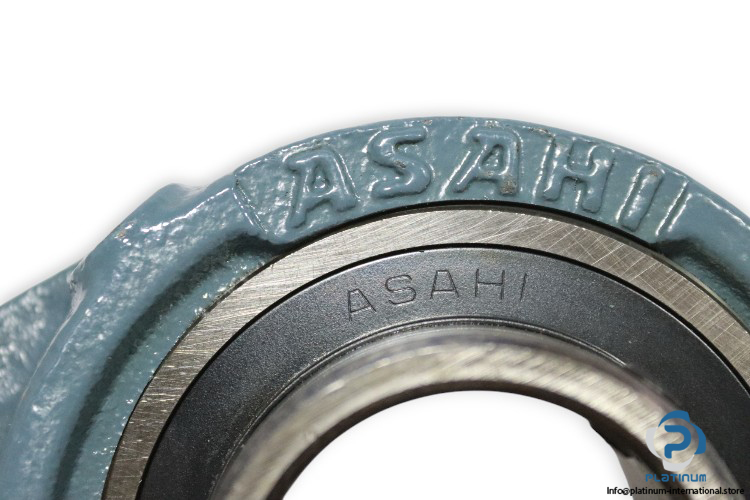

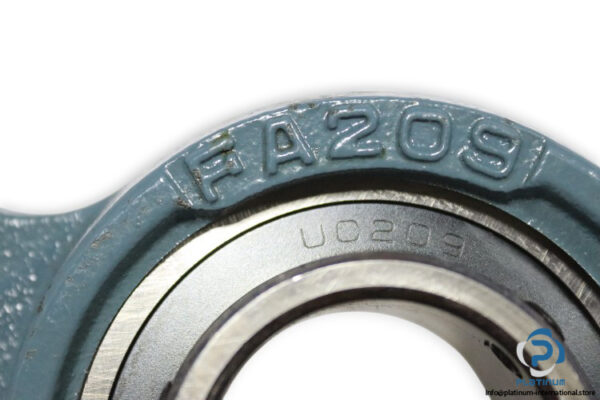

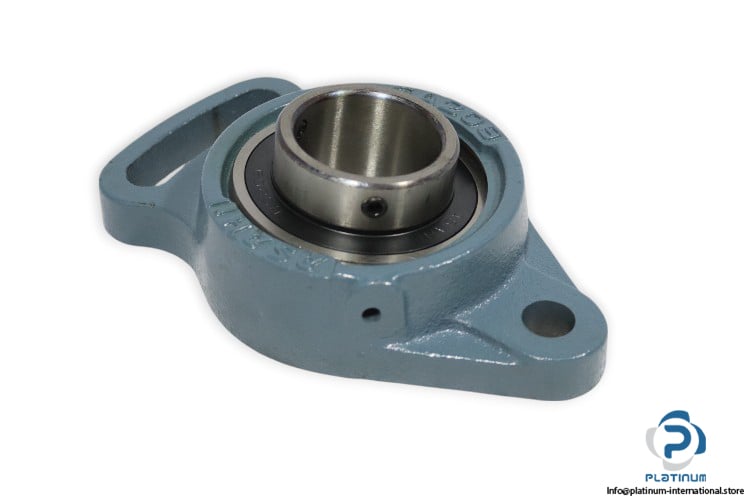

Adjustable Flange Unit – Asahi UCFA 209
The Adjustable Flange Unit (Manufacturer: Asahi, Model: UCFA 209) is a premium-grade unit designed for precision and reliability in industrial applications. Its key features include a robust bearing system, high-quality materials, and adjustable flange housing.
- Type: Adjustable Flange Unit
- Model: UCFA 209
- Bearing No.: UC 209
- Housing No.: FA 209

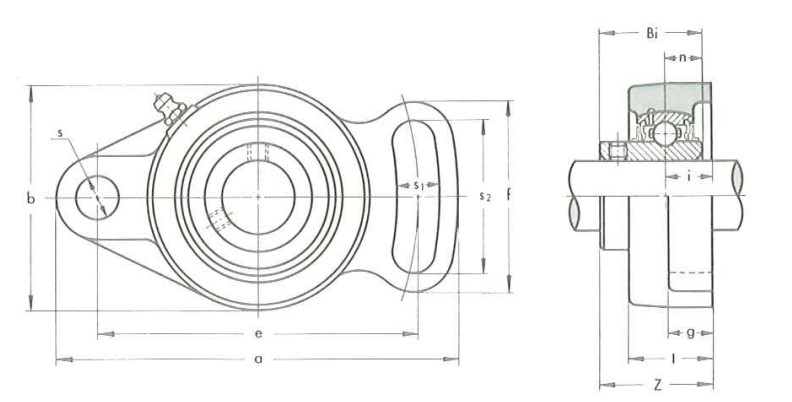

Dimensions
- Bore Diameter d: 45 mm
- Overall Length a: 181 mm
- Overall Height b: 108 mm
- Width of Inner Ring Bi: 49.2 mm
- Distance Between Attachment Bolts e: 148 mm
- Overall Unit Width z: 52.2 mm
- Diameter of Attachment Bolt Hole s: 16 mm
- Locking Device: Set-Screw
This unit is ideal for adjustable mounting and durable operations in various industrial setups.
