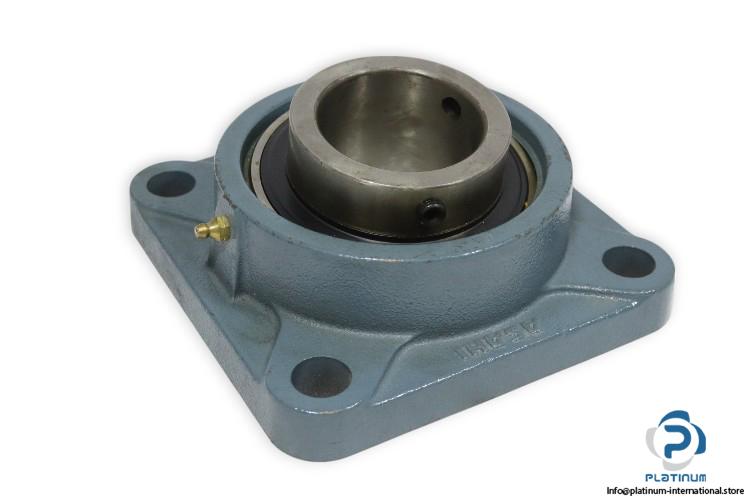

FOUR-BOLT SQUARE FLANGE UNIT – UCFX14
The FOUR-BOLT SQUARE FLANGE UNIT (Model: UCFX14, Bearing No.: UCX14, Housing No.: FX14) is engineered to offer robust performance in a wide range of industrial applications. Below are the key specifications:

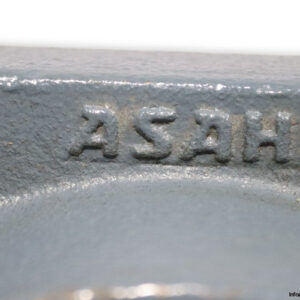

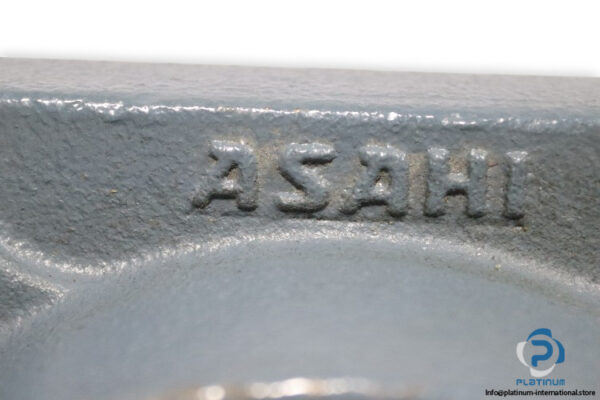

- Manufacturer: Asahi
- Type: Four-Bolt Square Flange Unit
- Model: UCFX14

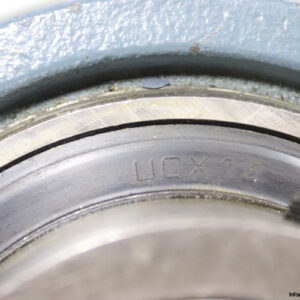

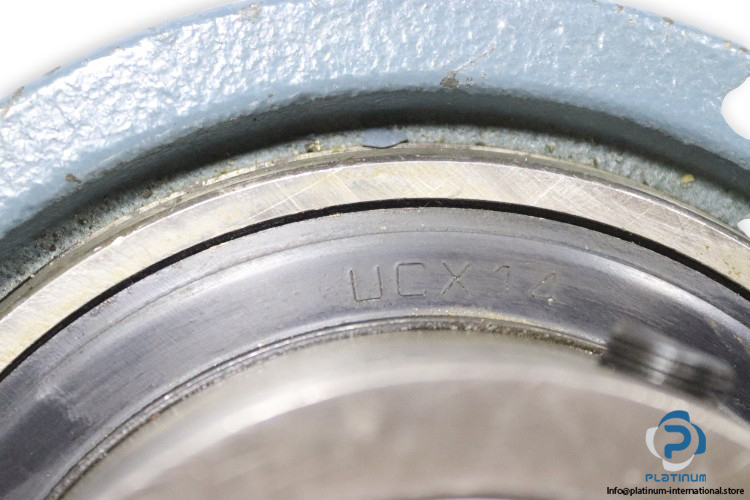

- Bearing No.: UCX14

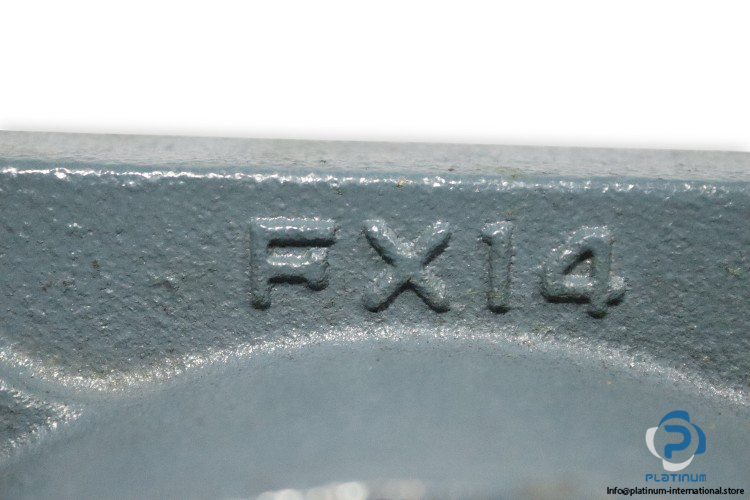

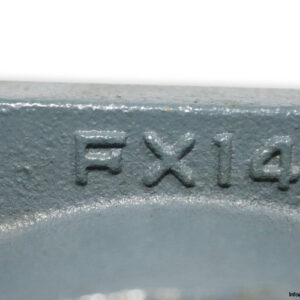

- Housing No.: FX14
- Bore Diameter d: 70 mm
- Overall Length a: 197 mm
- Width of Inner Ring Bi: 77.8 mm
- Distance Between Attachment Bolts e: 152 mm
- Overall Unit Width z: 81.5 mm
- Thread Size (s): 23 mm
- Bolt Size: M20
- Locking Device: Set Screw
