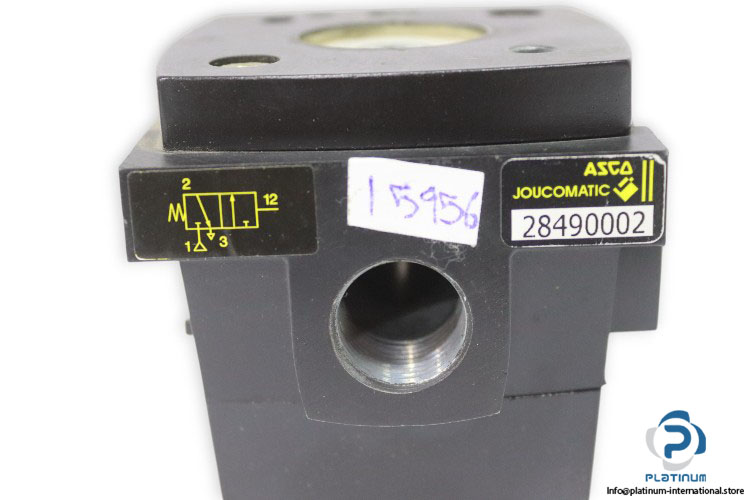

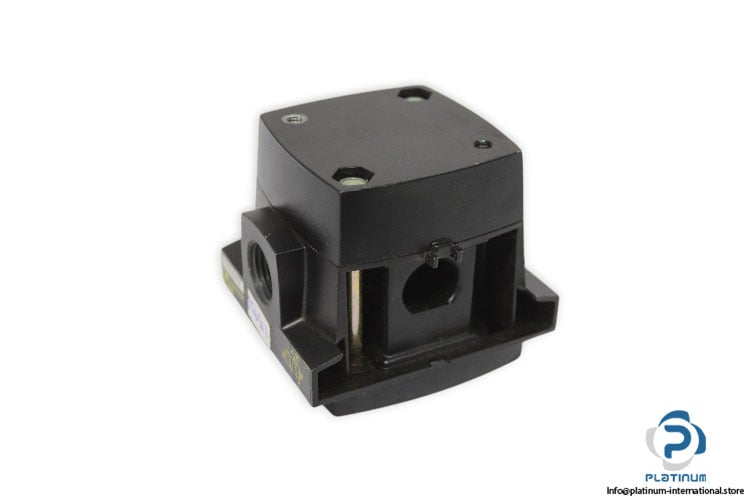

Asco Joucomatic 28490002 Tapped Poppet Valve

The Asco Joucomatic 28490002 is a durable and high-performance tapped poppet valve designed for pneumatic applications. With a 3/2 normally closed configuration, robust zinc alloy construction, and wide pressure and temperature range, it provides reliable flow control for air and inert gas systems.

Manufacturer: Asco Joucomatic
Type: Tapped Poppet Valve
Model: 28490002

Technical Information

• Function: 3/2 Normally Closed (NC)
• Body Material: Zinc Alloy / Zamak
• Flow (Cv / Kv): 98.27 / 85.00
• Valve Actuation: Pneumatic – Air Pilot
• Media: Air, Inert Gas
• Operating Pressure: 2 to 12 bar
• Ambient Temperature: -10 to 60 °C
• Orifice Size: 15 mm
• Connection: G1/2
