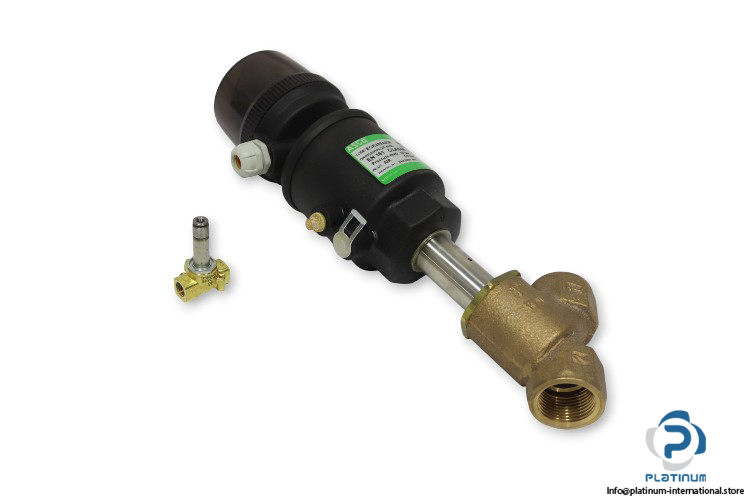

ASCO (Joucomatic) EGE290A038 Pneumatic Angle Seat Valve
The ASCO Joucomatic EGE290A038 is a high-performance pneumatic angle seat valve designed for demanding fluid control applications. Built for reliability, long service life, and precise operation, it offers excellent flow characteristics and dependable switching performance under varying pressure conditions.
Manufacturer: ASCO (Joucomatic)
Type: Pneumatic Angle Seat Valve

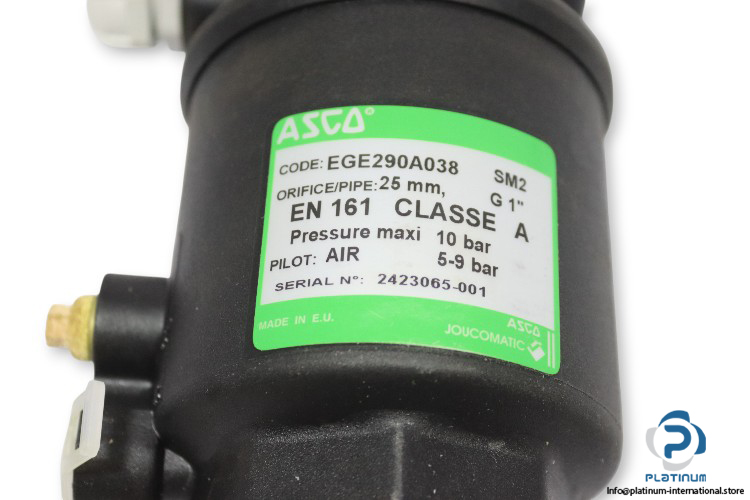

Model: EGE290A038
Serial Number: 2423065-001
Series: 290

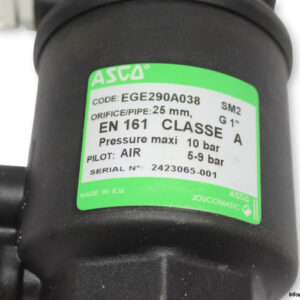

Technical Information
- Pipe Connection: G1
- Orifice Diameter: 25 mm

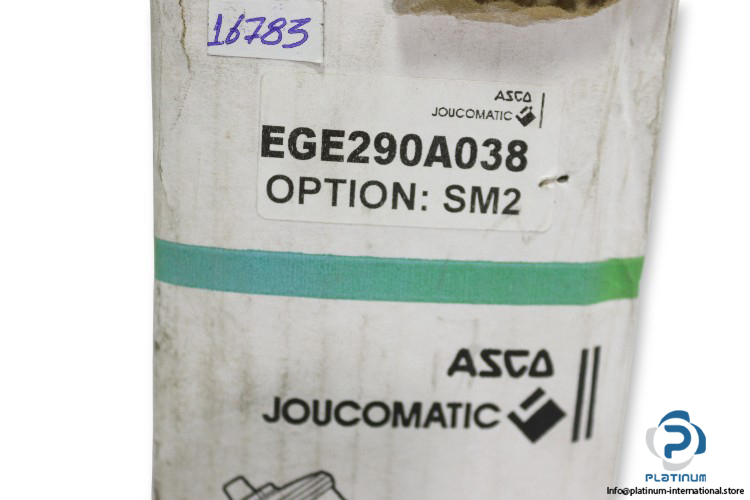

- Signaling Box: SM2 with mechanical contacts
- Class: EN 161 Classe A
- Max Pressure: 10 bar
- Pilot Medium: Air
- Pilot Pressure Range: 5 – 9 bar

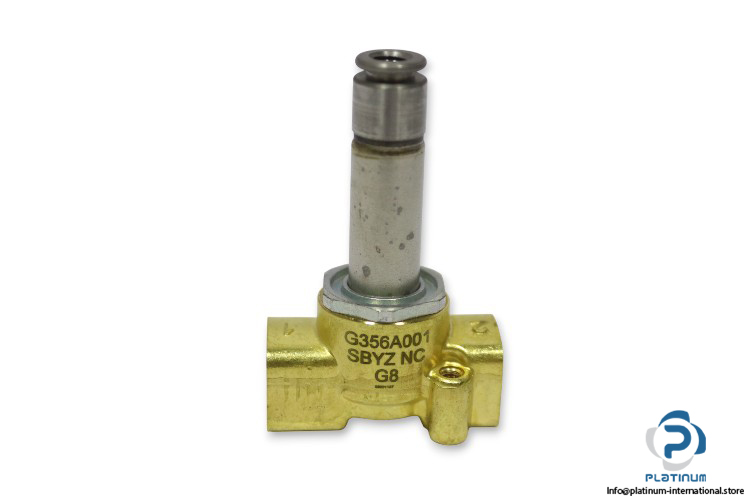

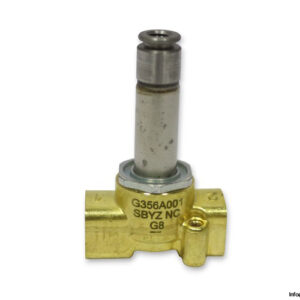

- Attachment: G356A001 Internal Valve Insert
- Model: G356A001 / G356A001SBYZ

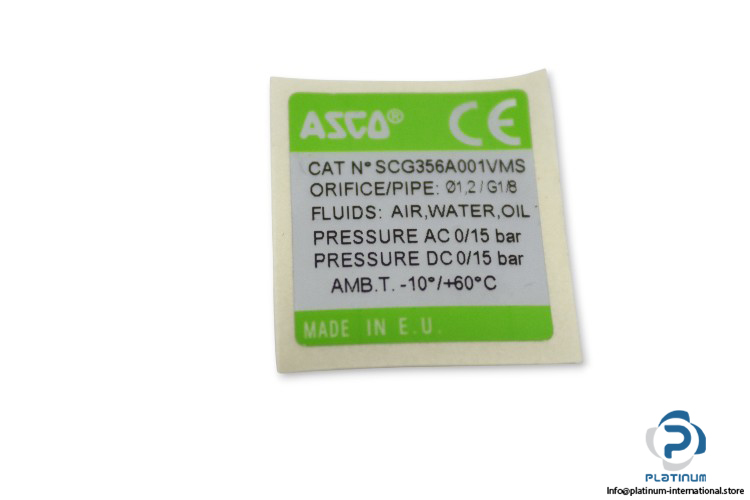

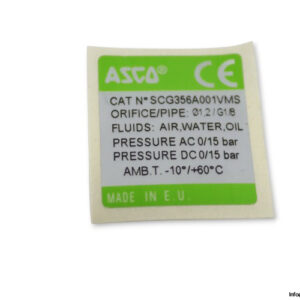

- Code: SBYZ NC – G8 / SCG356A001VMS
- Function: Normally closed
- Head Material: Brass internal valve
- Orifice / Pipe: Ø1.2 / G1/8
- Fluids: AIR, Water, OIL
- Pressure AC: 0/15 bar
- Pressure DC: 0/15 bar
- Ambient Temperature: -10° / +60° C
Recommendation
This ASCO 290 Series angle seat valve is recommended for customers who require a robust and fast-acting solution for fluid control in industrial systems. Its normally-closed operation, high pressure range, and multi-fluid compatibility make it ideal for automation lines, compressed air systems, water circuits, and oil flow regulation. Its brass internal construction ensures durability, while the SM2 signaling box provides reliable feedback for process monitoring.
