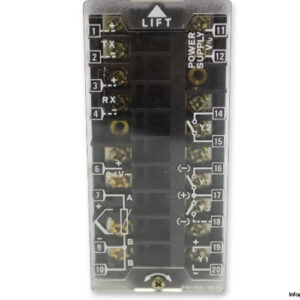

ASCON XE-310/9 Multi-Input Controller

The ASCON XE3109 Multi-Input Controller is a versatile and high-performance process controller designed for precise temperature and process regulation. Featuring universal input compatibility, relay outputs, and time-proportioning control, it delivers dependable operation in industrial automation environments.

Manufacturer: ASCON
Type: Multi-Input Controller with Time-Proportioning

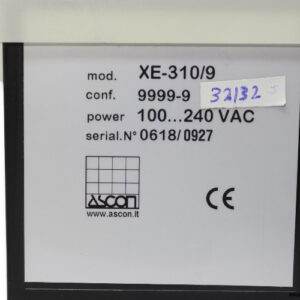

Model: XE-310/9
Configuration Code: 9999-9
Series: XE

Technical Information

• Input: Universal Configurable (RTD Pt100, Thermocouples J/L/K/S/R, 4“20 mA, 0“1 VDC, 0“10 VDC), Configurable Scale Range
• Supply Voltage: 100 … 240 V AC
• Serial Communications: 20 mA
• Main Output Y1: Relay with Dual Action, 2 Contacts NO, 3A/250VAC
• Logic Output: 0.15 VDC, 20 mA max. (for Static Relays)
• Auxiliary Outputs Y2 – Y3: Relay, 2 Contacts NO, 3A/250VAC

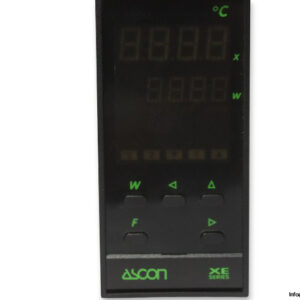

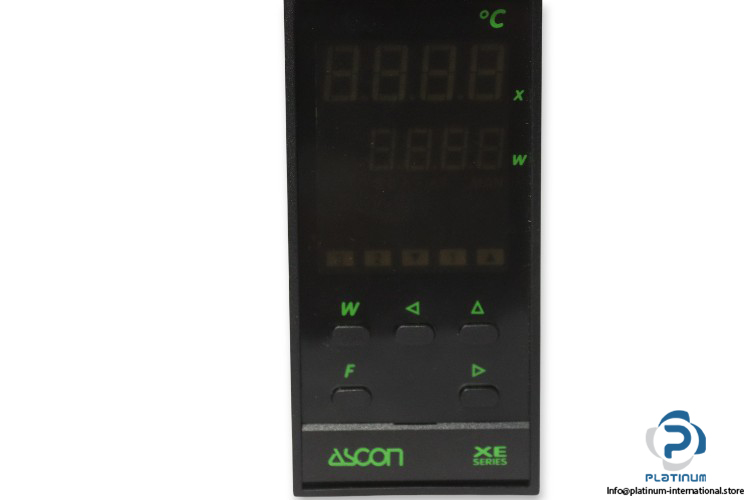

• Number of Digits: 4
• Material: Self-Extinguishing UL94V1
• Protection Class: IP20
• Temperature: 0 / 50 °C
• Dimensions: 96 x 48 x 120 mm
