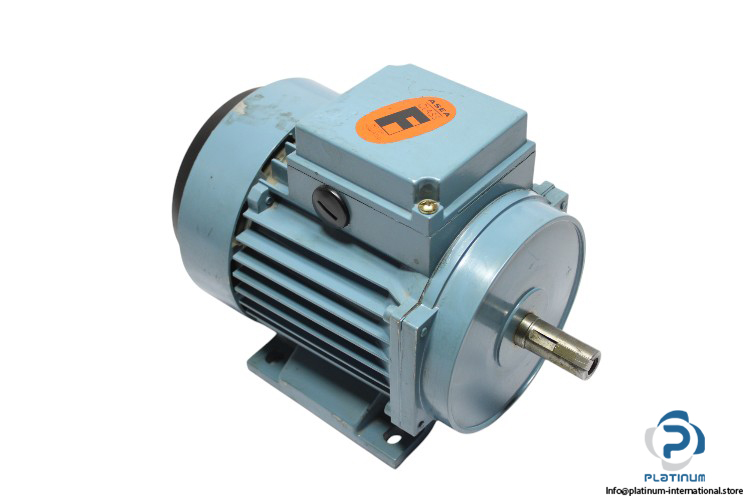

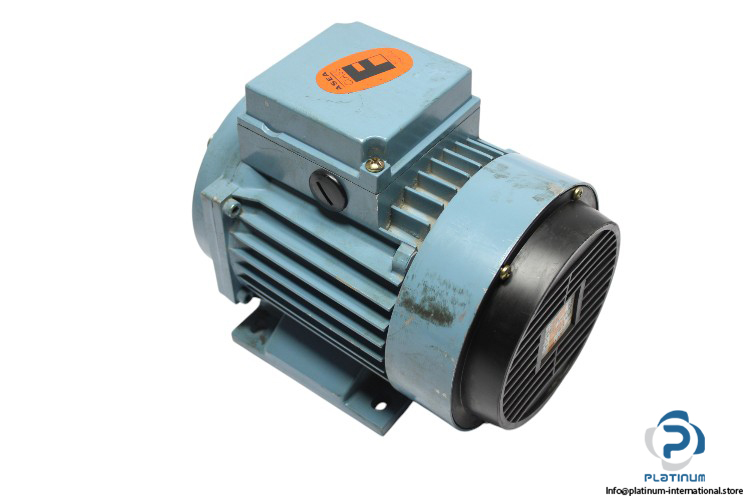

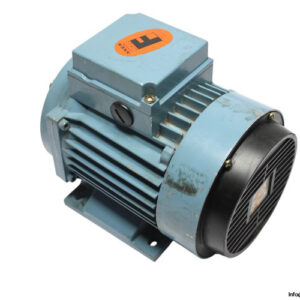

ASEA 3-PHASE ELECTRIC MOTOR

The ASEA 3-Phase Electric Motor (Model: MT80 A 19-4/8, MRN: MK110548-B) is a high-performance motor designed for industrial applications. It features reliable operation with a rated voltage of 380V and rated speeds of 1390/700 rpm, ensuring consistent power delivery across various tasks. With a protection class of IP54 and insulation class F, this motor is built to perform efficiently in demanding environments.

Manufacturer: ASEA

Type: 3-Phase Electric Motor

Model: MT80 A 19-4/8

MRN: MK110548-B

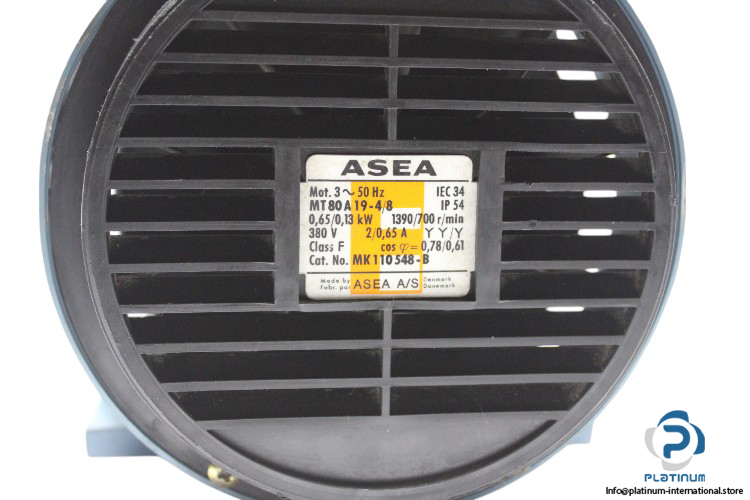

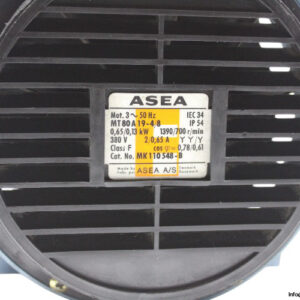

Technical Specifications

• Rated Voltage: 380 V
• Rated Speed: 1390 / 700 rpm
• Rated Power: 0.65 / 0.13 kW
• Rated Frequency: 50 Hz
• Rated Current: 2.0 / 0.65 A
• Power Factor: 0.78 / 0.61
• Protection Class: IP 54
• Insulation Class: F
