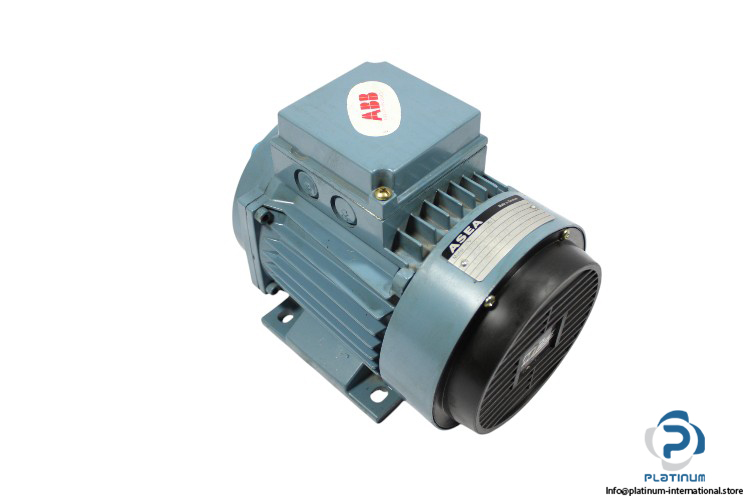

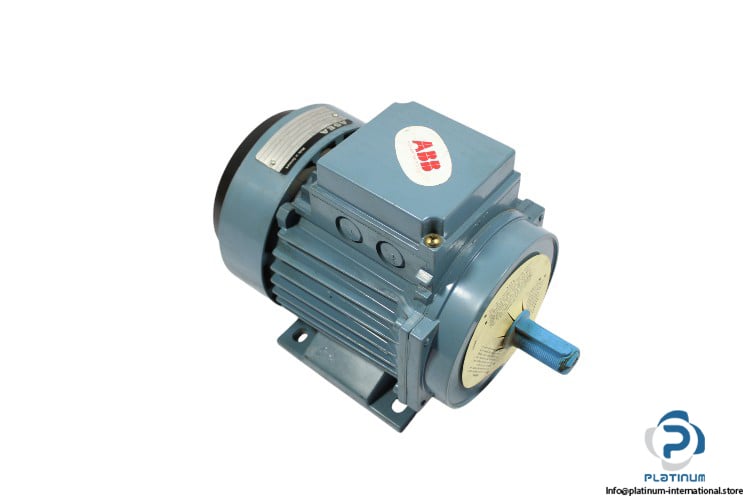

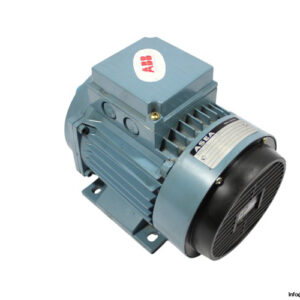

ASEA 3-PHASE ELECTRIC MOTOR

The ASEA 3-Phase Electric Motor (Model: MT80B19-4/8, Part No. MK110549-K) is engineered for reliable and efficient performance in various industrial applications. With a rated voltage of 415 V and speeds of 1390 rpm and 700 rpm, this motor is designed to provide optimal power output and durability. It features an IP55 protection class and F insulation class for robust operation in demanding environments.

Manufacturer: ASEA

Type: 3-Phase Electric Motor

Model: MT80B19-4/8

Part No.: MK110549-K

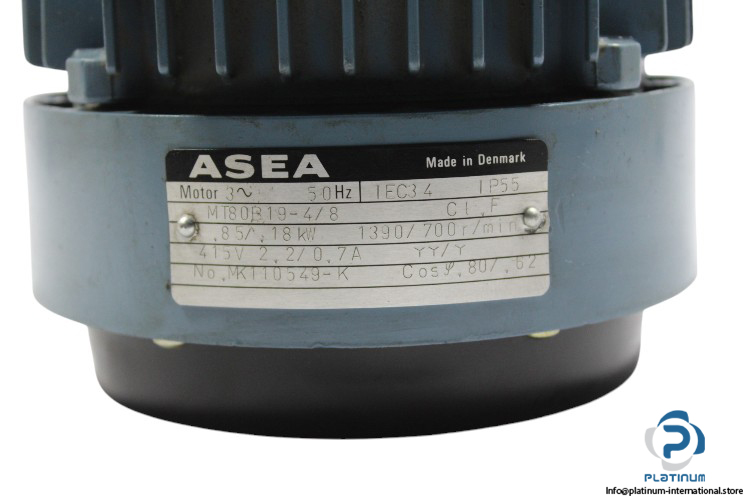

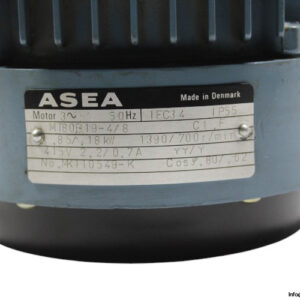

Technical Specifications

• Rated Voltage: 415 V
• Rated Speed: 1390 / 700 rpm
• Rated Power: 0.85 / 0.18 kW
• Rated Frequency: 50 Hz
• Rated Current: 2.2 / 0.7 A
• Power Factor: 0.80 / 0.62
• Protection Class: IP 55
• Insulation Class: F
