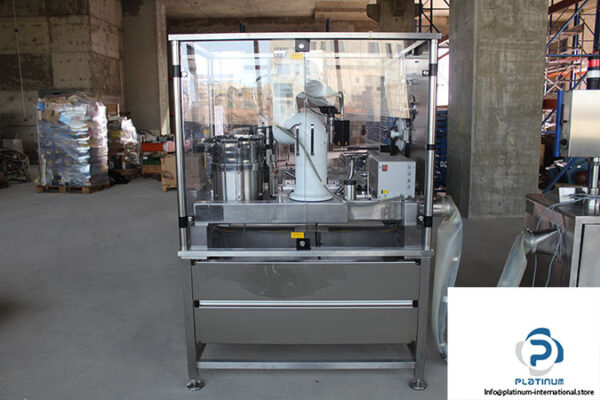

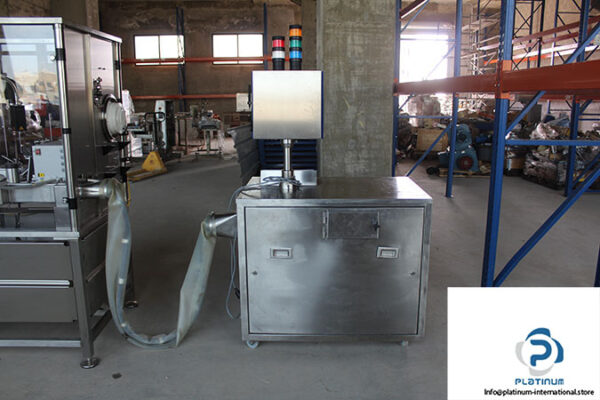

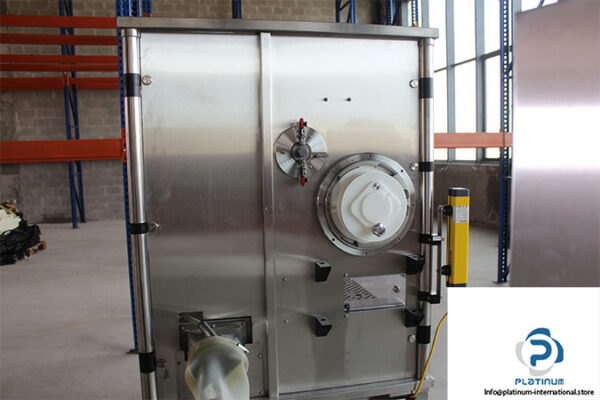

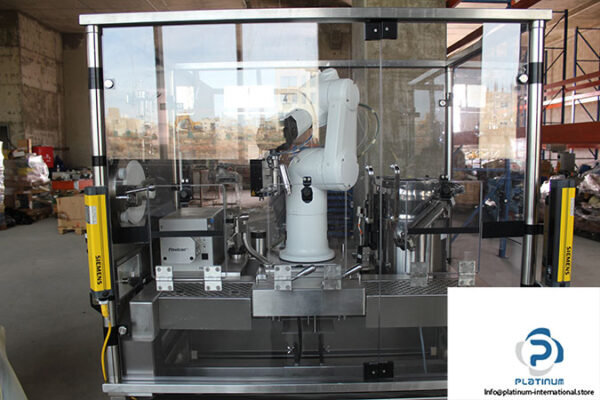

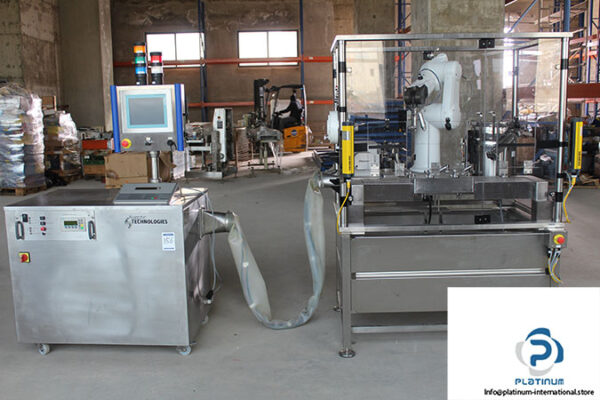

ASEPTIC TECHNOLOGIES CVF005-LEU L1 ROBOT LINE
The CVF005-LEU L1 from Aseptic Technologies is an advanced robotic vial filling system engineered for high-precision aseptic environments. Integrated with industry-grade components, it ensures high throughput, exceptional reliability, and seamless compatibility with RABS, Isolators, and AT-Box„¢ installations.

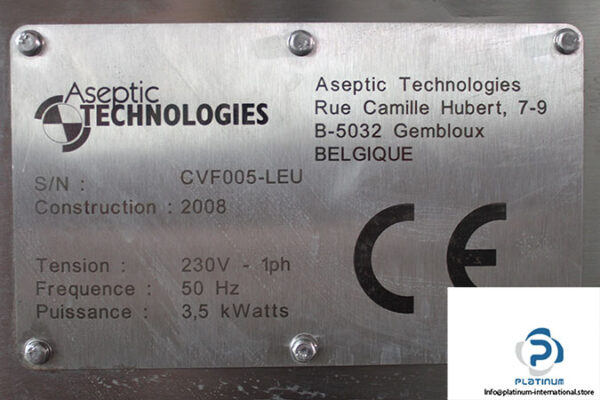

Manufacturer: Aseptic Technologies
Type: L1 Robot Line
Model: CVF005-LEU L1
Technical Information
- Capacity: Up to 600 Vials/Hour
- Vial Format: All AT-Closed® Vial
- Pump: Peristaltic
- Installation: RABS, Isolator, AT-Box„¢
- Voltage: 230 V
- Frequency: 50 Hz
- Power: 3.5 kW
Integrated Components

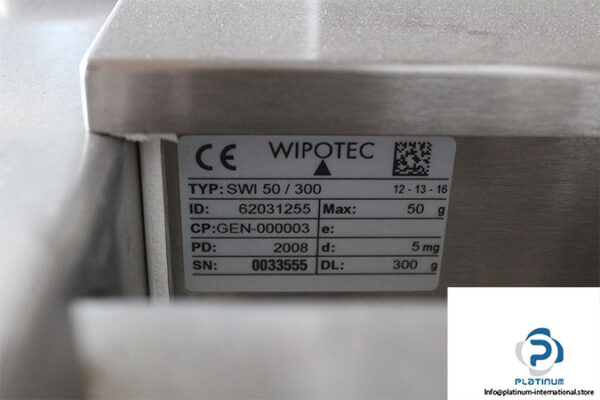

Weigh Cell
- Model: WIPOTEC SWI 50 / 300
- ID No: 62031255
- Max Weigh: 50 g
- D: 5 mg | DL: 300 g

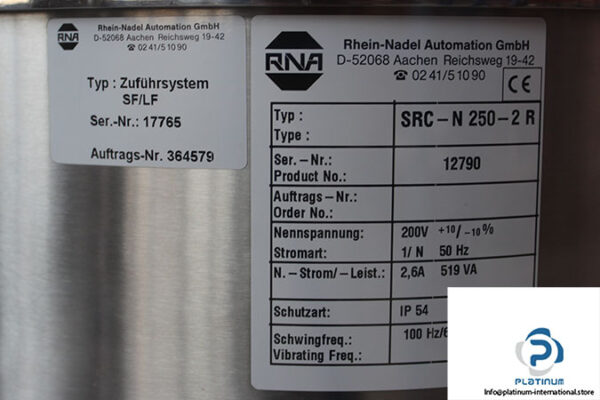

Vibratory Feeders
- Manufacturer: RNA
- Model: SRC-N 250-2R
- Magnet Type: WZAW 060
- Dimensions (Dia x H): 290 x 215 mm
- Protection: IP54
- Power Input: 519 VA
- Current: 2.6 A

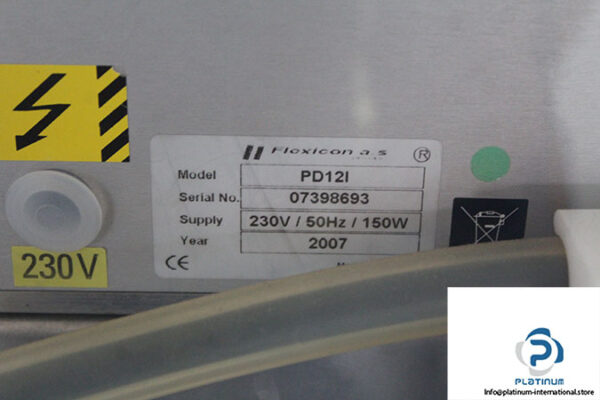

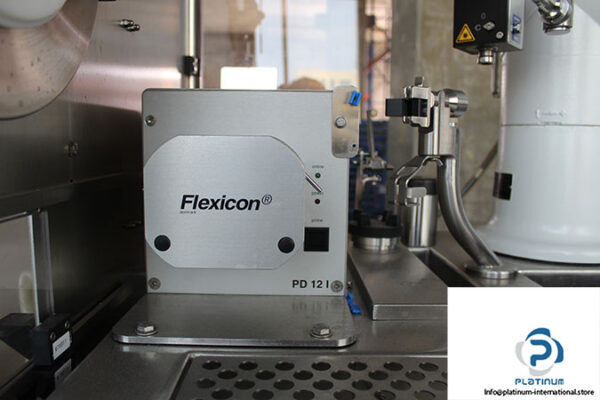

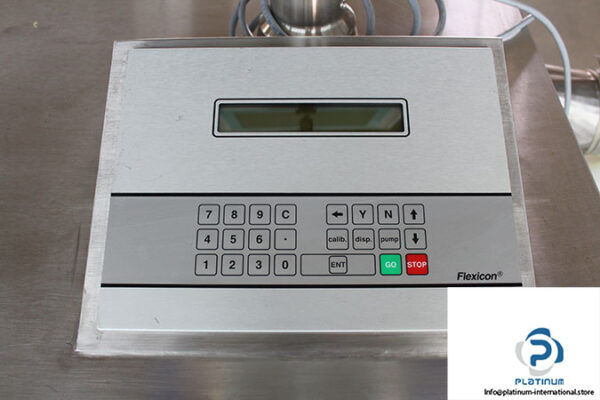

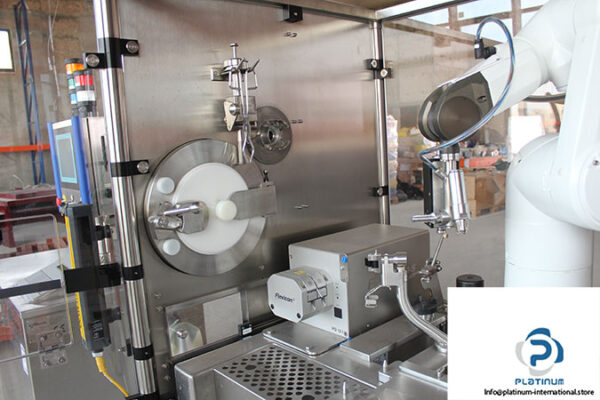

Pump
- Manufacturer: Flexicon
- Model: PD12I
- Supply Voltage: 230 V
- Power: 150 W

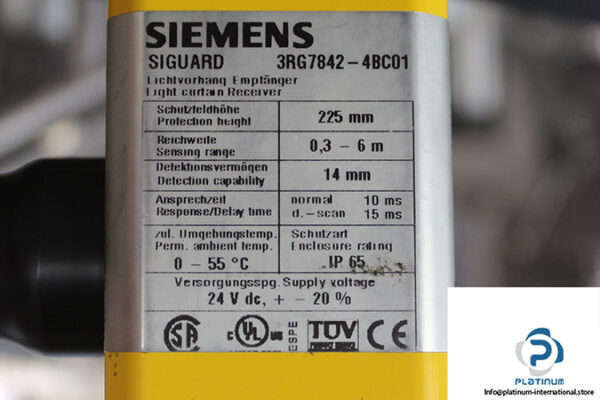

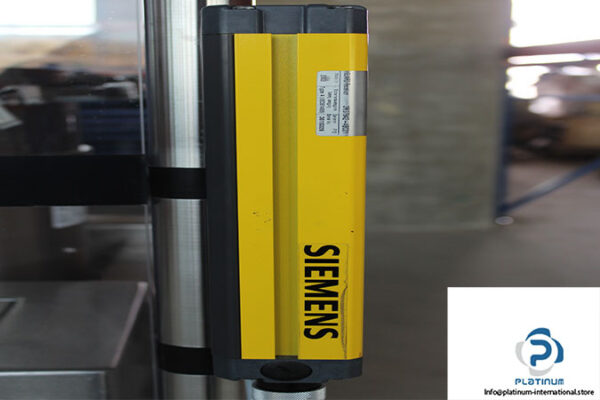

Safety Light Curtains
- Manufacturer: Siemens Siguard
- Model: 3RG7842-4BC01
- Sensing Range: 0.3 “ 6.0 m
- Detection: 14 mm
- Protection: IP65

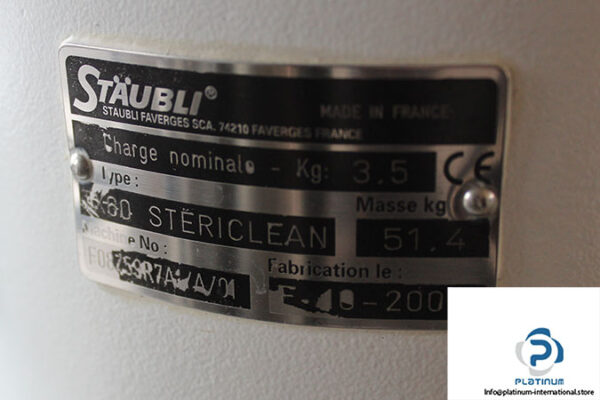

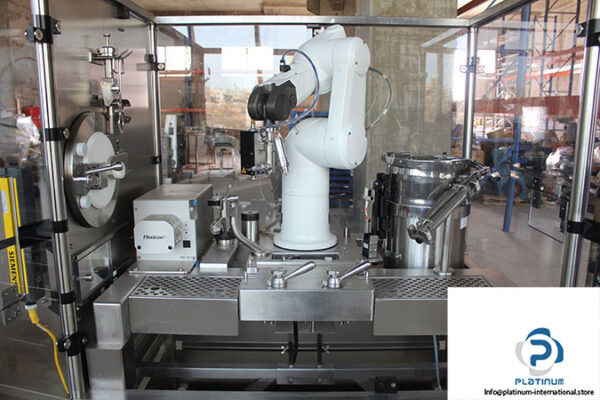

Robot Arm
- Manufacturer: Staubli
- Type: TX60
- Payload: 9 Kg
- Reach: 670 mm
- Repeatability: ±0.02 mm

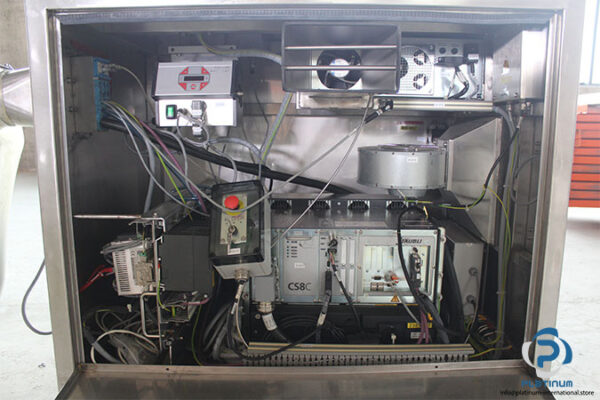

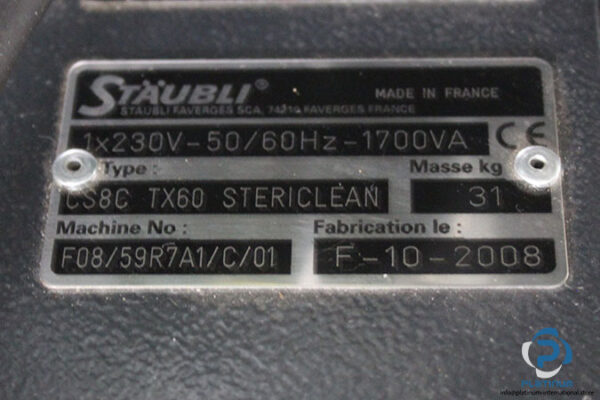

Robot Controller
- Model: Staubli CS8C TX60
- Voltage: 230 V
- Programming: VAL 3, PLC-IEC 61131-3

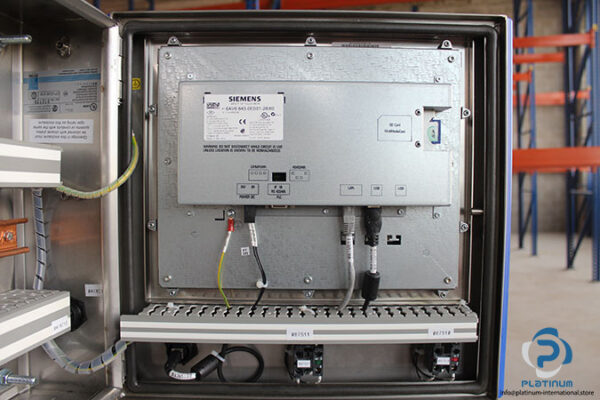

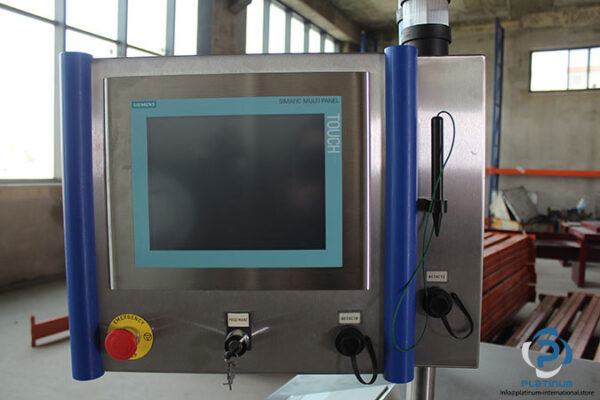

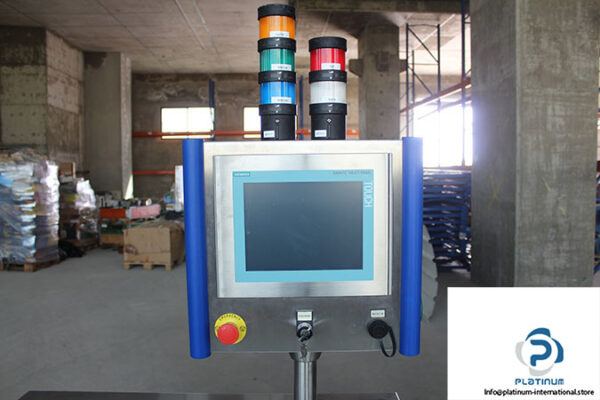

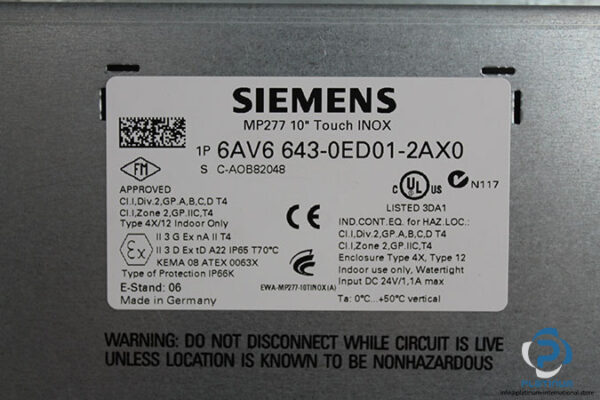

HMI Panel
- Manufacturer: Siemens
- Model: MP277 INOX
- Screen: 10.4″ TFT, 65,536 colors

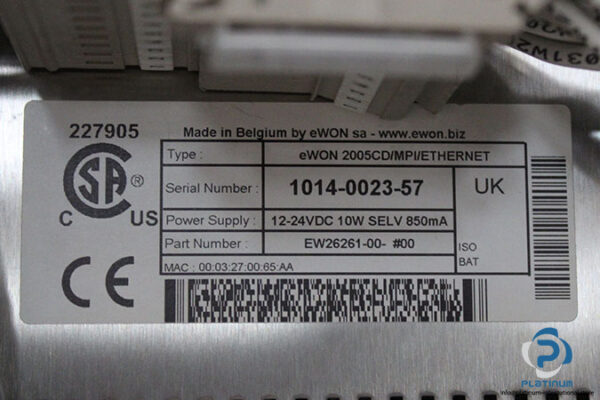

Industrial Gateway
- Manufacturer: Ewon
- Model: 2005 CD/MPI/ETHERNET
- Power Supply: 12“24 VDC
Feeding System
- Manufacturer: RNA
- Model: SF/LF Feeding System
