Manufacturer: Askubal
Type: Pillow Block Ball Bearing Unit
Model: UCP216

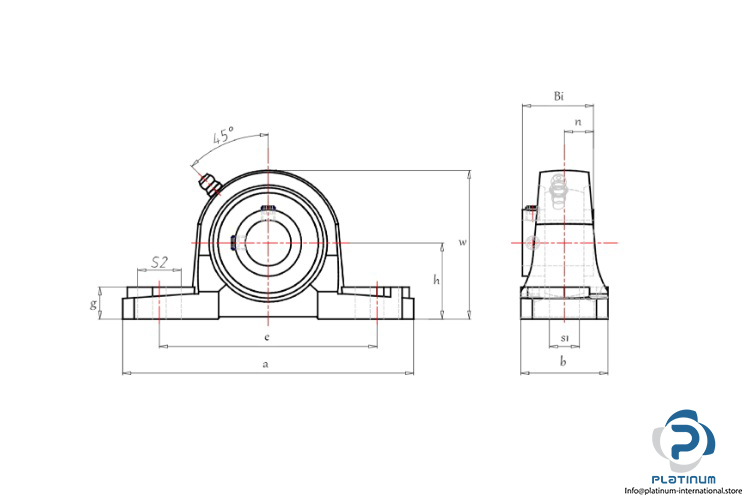

Dimensions
Bore Diameter d: 80 mm
Base width b: 78 mm
Width of Inner Ring Bi: 82.6 mm
Height of spherical seat center h: 88.9 mm
Distance Between Attachment Bolts e: 232 mm
Overall length a: 292 mm
Diameter of attachment bolt hole S1: 25 mm
Load ratings Insert dynamic C: 72600 N
Load ratings Insert static C0: 53300 N
Locking Device: Set Screw
Material, housing: Cast Iron
