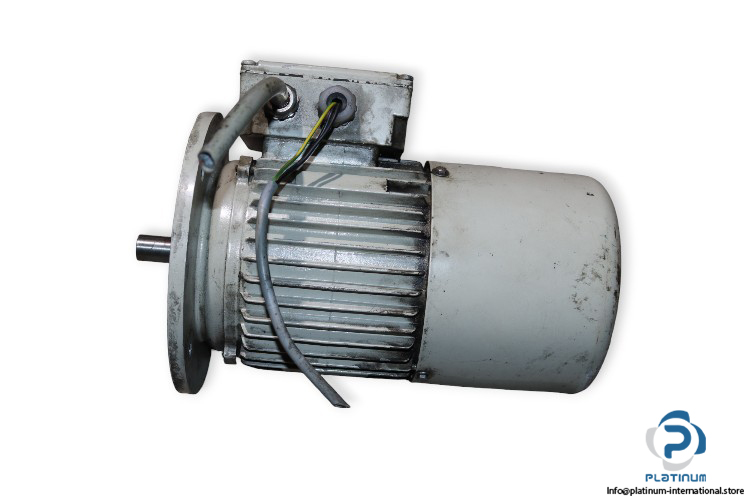

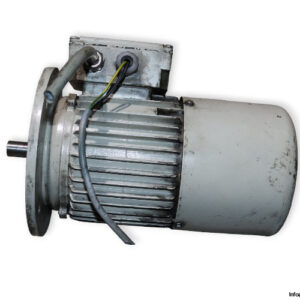

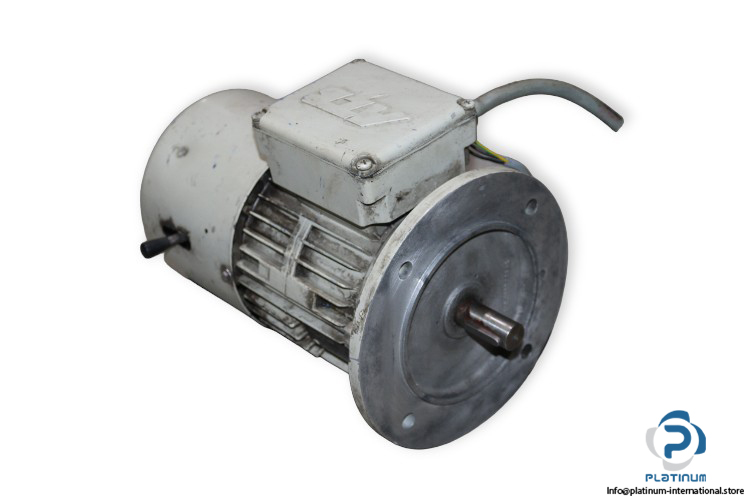

ATB BRAKE MOTOR BRF 0,55/4-7 / S03 326282

The ATB BRAKE MOTOR BRF 0,55/4-7 / S03 326282 offers high performance for industrial applications, providing reliable braking and power transmission. With a rated power of 0.55 kW and brake torque of 8 Nm, this motor ensures smooth and controlled operation. It™s equipped with protection class IP55 and insulation class F for enhanced durability.

Manufacturer: ATB

Type: BRAKE MOTOR

Model: BRF 0,55/4-7 / S03 326282

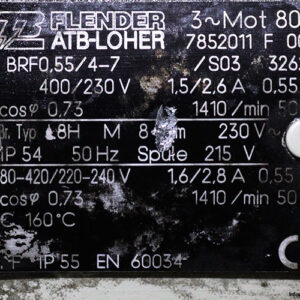

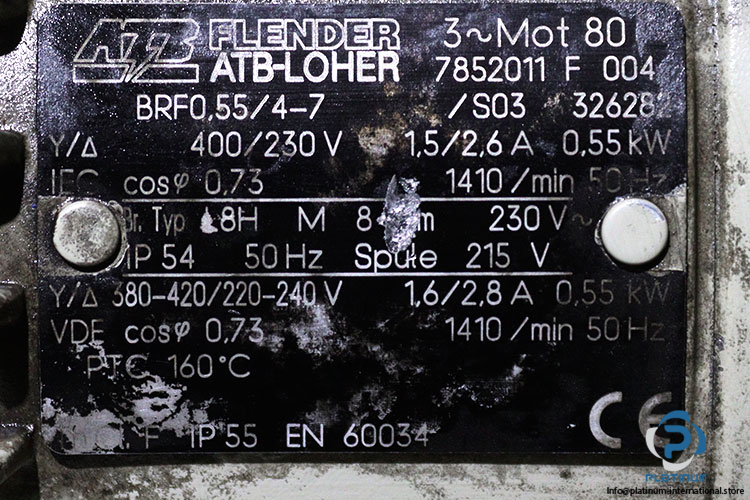

Ref No.: 7852011 F 004

Technical Specifications

• Rated Voltage: 400 / 230 V
• Rated Current: 1.5 / 2.6 A
• Rated Power: 0.55 kW
• Rated Speed: 1410 RPM
• Protection Class: IP55
• Insulation Class: Class F
• Power Factor: 0.73
• Brake Voltage: 230 V
• Brake Torque: 8 Nm
• Frequency: 50 Hz
• Protection Class: IP54
