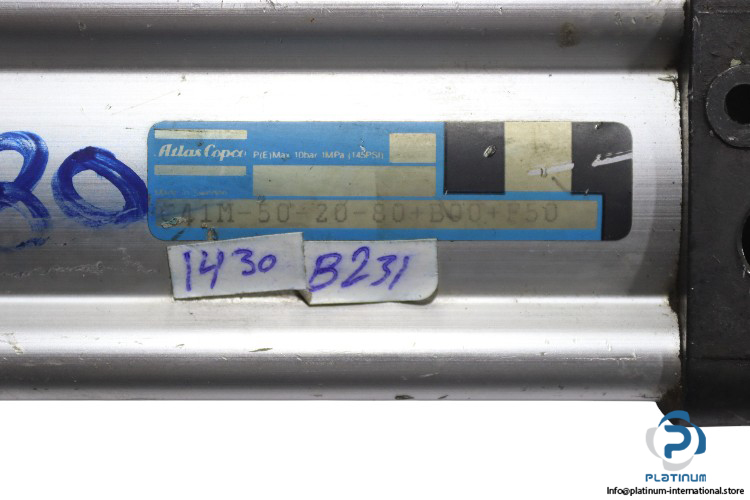

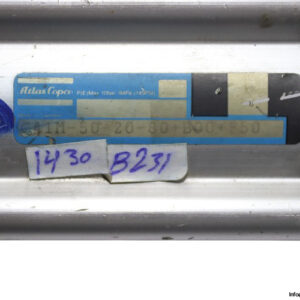

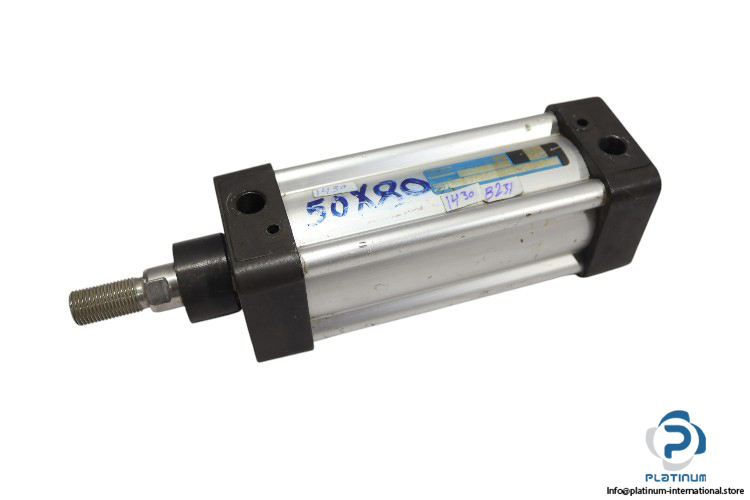

Atlas Copco C41M-50-20-80+B00+F50 ISO Cylinder

The Atlas Copco C41M502080B00F50 ISO Cylinder is a high-quality pneumatic actuator designed for precise and reliable linear motion. It features a square-shaped body, double operation mode, and is suitable for compressed air applications up to 10 bar.

Manufacturer: ATLAS COPCO

Type: ISO Cylinder

Model: C41M-50-20-80+B00+F50

Technical Information:

• Media: Compressed Air
• Bore Diameter: 50 mm
• Stroke Length: 80 mm
• Bore x Stroke: 50 x 80 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 64 x 210 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
