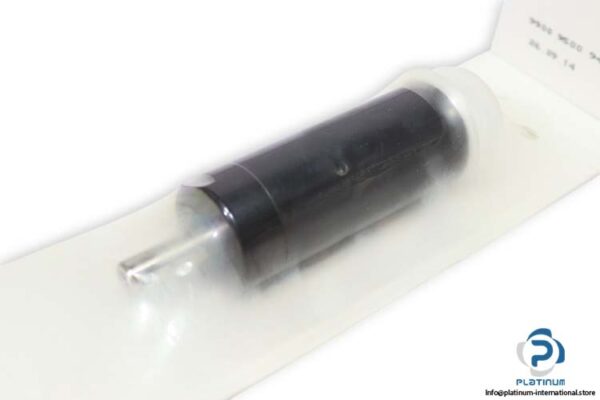

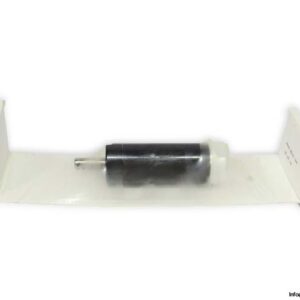

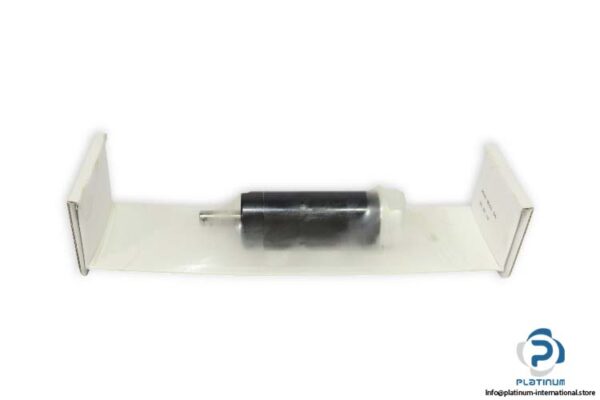

ATLAS COPCO LZB33AR04311 LUBRICATION-FREE VANE AIR MOTOR

The Atlas Copco LZB33AR04311 air motor is a robust, lubrication-free vane motor designed for clean, efficient operation across demanding pneumatic applications. Its compact size, powerful torque output, and low air consumption make it ideal for industries requiring reliable and oil-free performance. Manufacturer: Atlas Copco
Type: Lubrication‘free vane air motor
Model: LZB33AR04311
Series: LZB

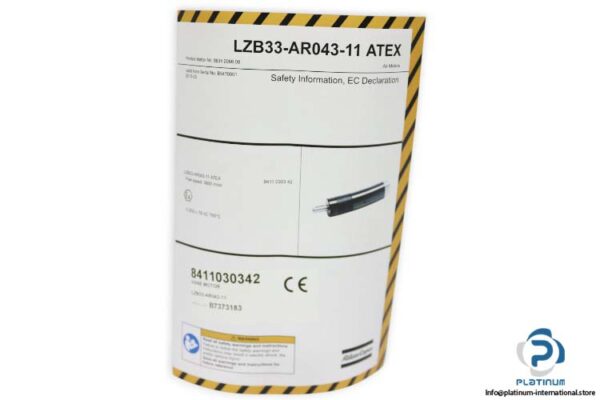

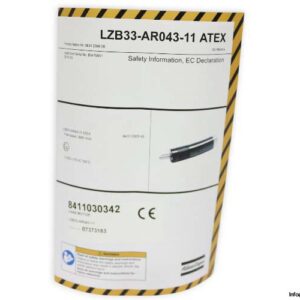

Air Motor Order No.: 8411030342

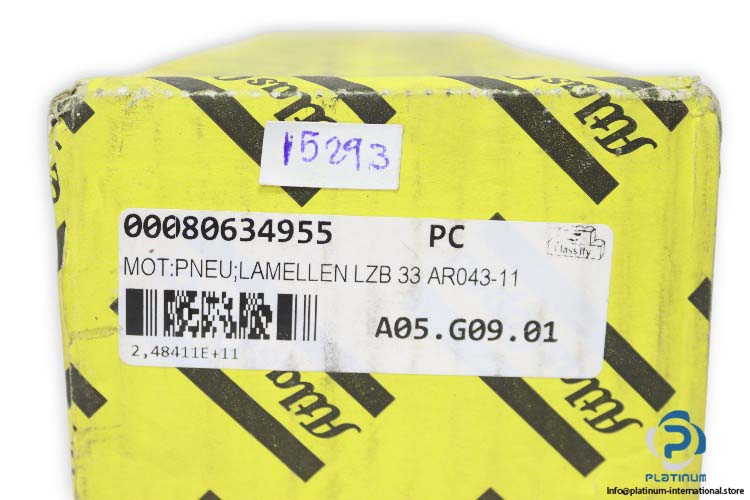

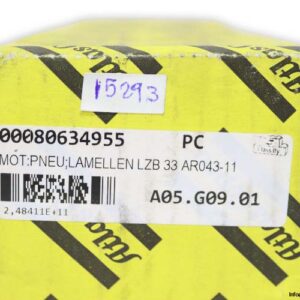

Motor Cell Order No.: 00080634955

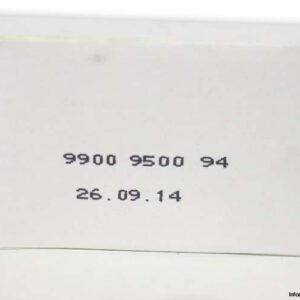

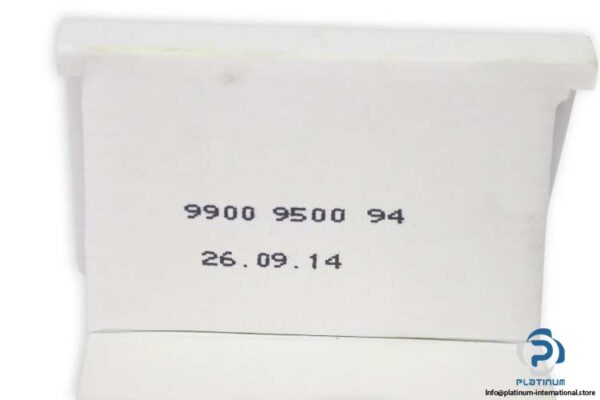

Codes: A05.G09.01 / 9900 9500 94 / 26.09.14

Technical Information

Free Speed: 3,800 rpm
Max Output Speed: 1,960 rpm
Max Power: 0.25 kW
Starting Torque: 1.6 Nm
Stall Torque: 2.4 Nm
Torque at Max Output: 1.2 Nm
Air Consumption: 16.8 cfm
Max Pressure: 7 bar
Ambient Temperature: 40 to 85 °C
Pneumatic Connections: G1/4
