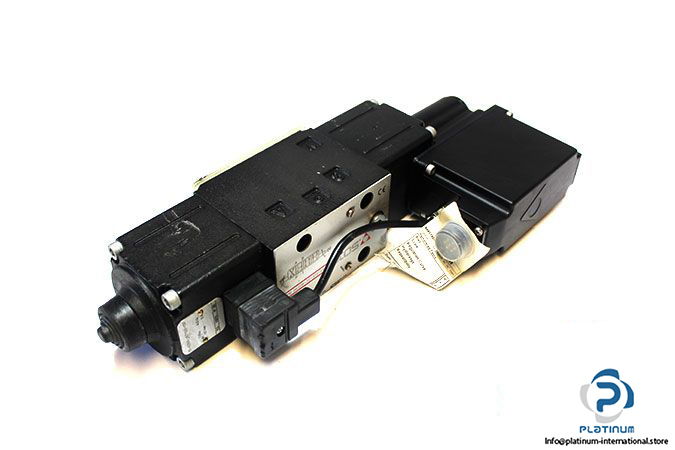

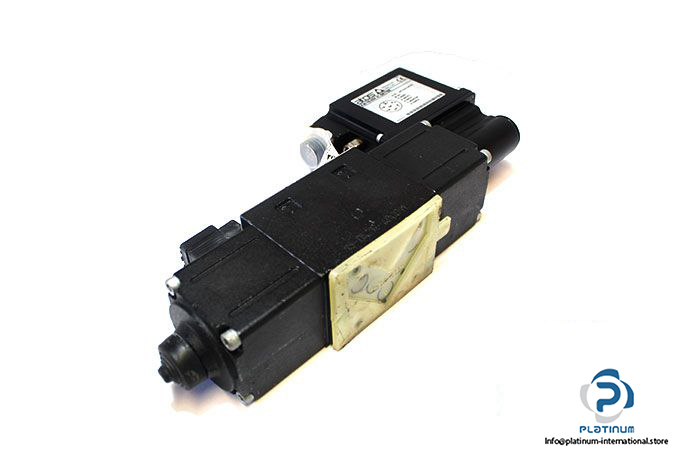

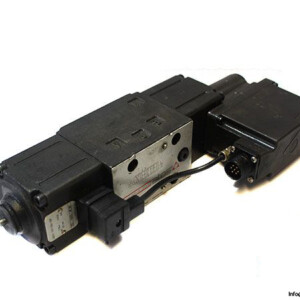

ATOS DKZOR-TE-173-S9 PROPORTIONAL DIRECTIONAL VALVE WITH DRIVER & COIL

This high-precision ATOS proportional directional valve assembly is engineered for advanced hydraulic control systems. Ideal for industrial environments, it provides smooth directional control with high responsiveness and reliability. The unit includes an integrated electronic driver and solenoid coil for complete system functionality.

Manufacturer: ATOS
Type: Proportional Directional Valve

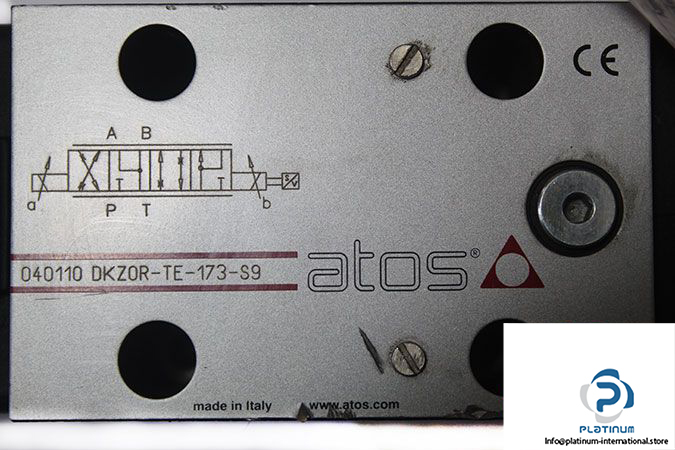

Model: 040110 DKZOR-TE-173-S9
Size: 10

Technical Specifications

• Maximum Operating Pressure (Port P, A, B): 315 bar
• Hydraulic Fluid Temperature Range: “20 to +60 °C
• Viscosity Range: 20 to 100 mm²/s
• Connection Type: Sub-plate

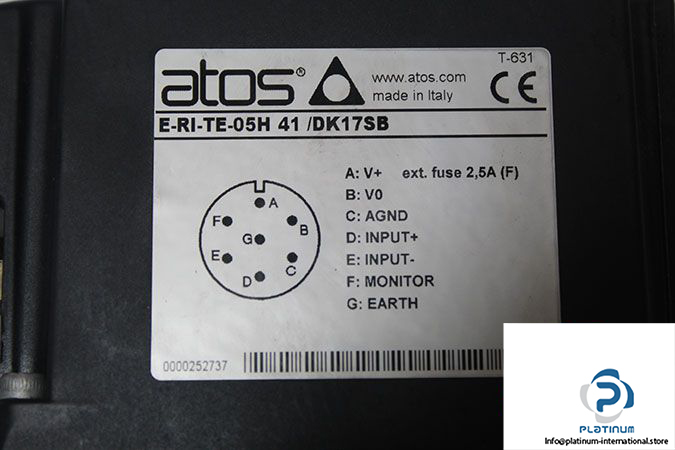

Electronic Driver

• Manufacturer: ATOS
• Type: Electronic Driver
• Model: E-RI-TE-05H 41/DK17SB
• Current: 2.5 A

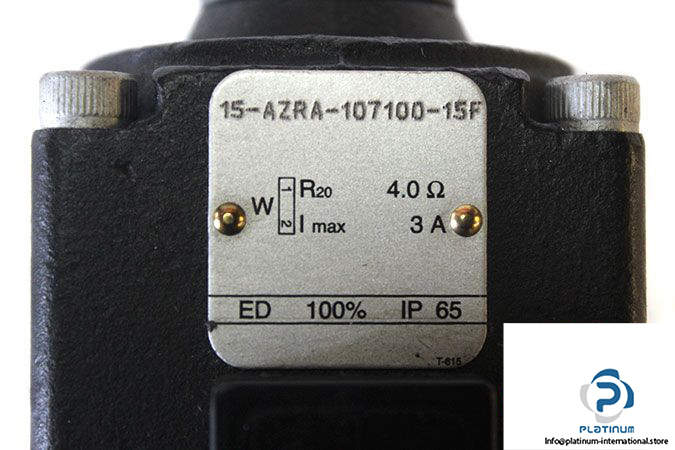

Solenoid Coil

• Manufacturer: ATOS
• Type: Solenoid Coil
• Model: 15-AZRA-107100-15F
• Coil Resistance at 20°C: 4 ohm
• Current: 3 A
• Protection Class: IP65
