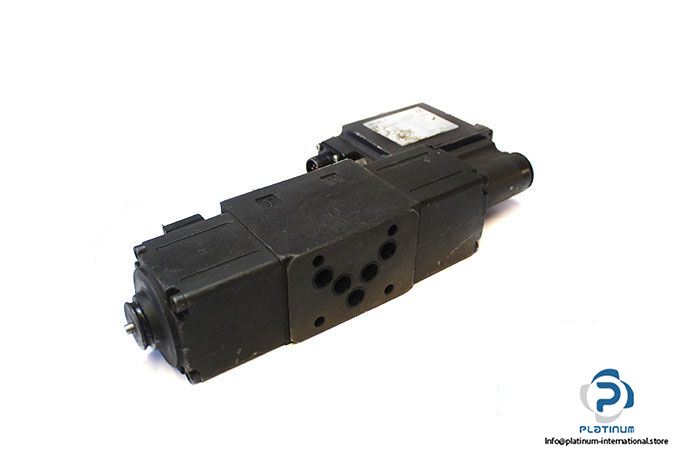

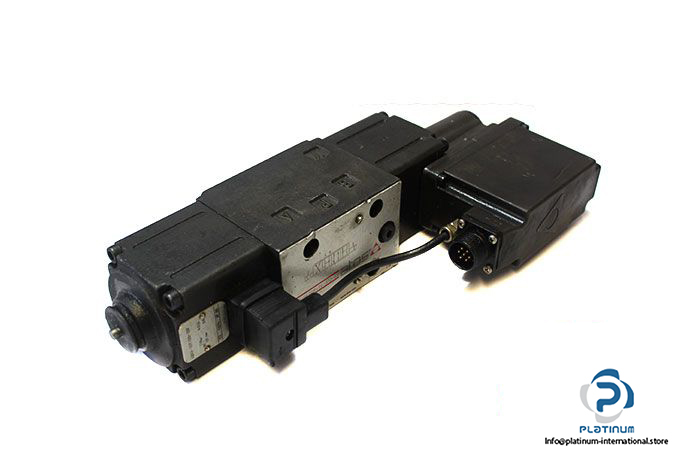

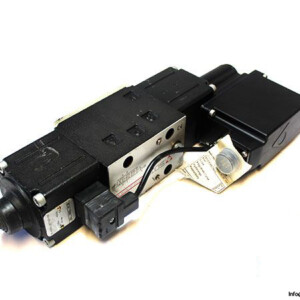

ATOS DKZOR-TE-173-S9 PROPORTIONAL DIRECTIONAL VALVE SYSTEM

This ATOS hydraulic control assembly features a high-performance proportional directional valve (size 10), complete with electronic driver and solenoid coil, ensuring precise flow regulation and dependable control for industrial automation and fluid power systems.

Manufacturer: ATOS
Type: Proportional Directional Valve

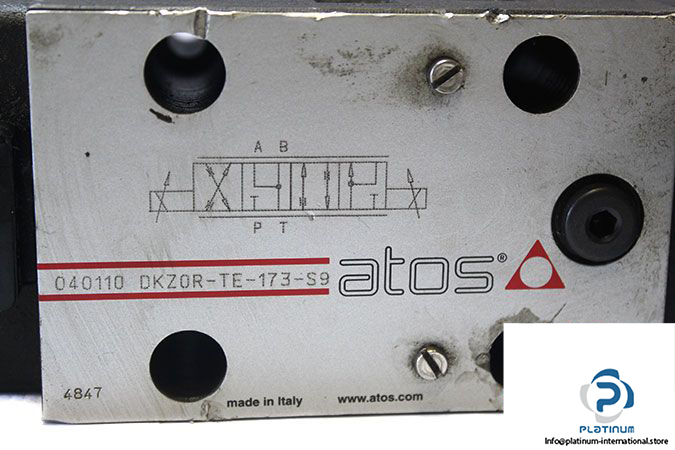

Model: 040110 DKZOR-TE-173-S9
Size: 10

Valve Technical Information

• Max Operating Pressure Port P, A, B: 315 bar
• Hydraulic Fluid Temperature Range: “20 to +60 °C
• Viscosity Range: 20 “ 100 mm²/s
• Connection: Sub-plate

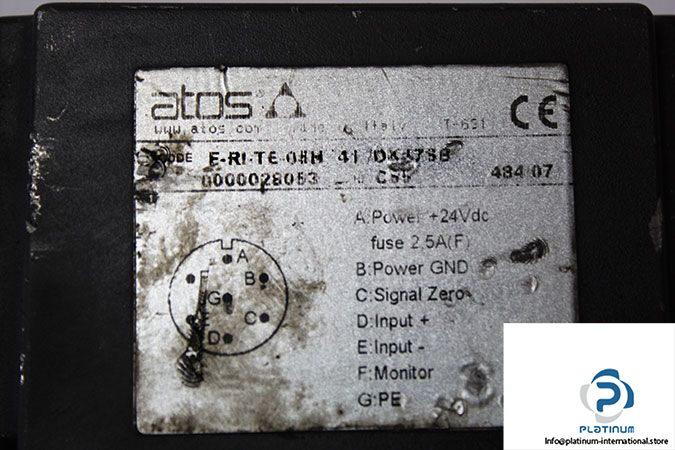

Attachment: Electronic Driver

Manufacturer: ATOS
Type: Electronic Driver
Model: E-RI-TE-05H 41/DK17SB
Reference No.: 484 07 / 0000028053

• Current: 2.5 A
• Power Supply: 24 VDC

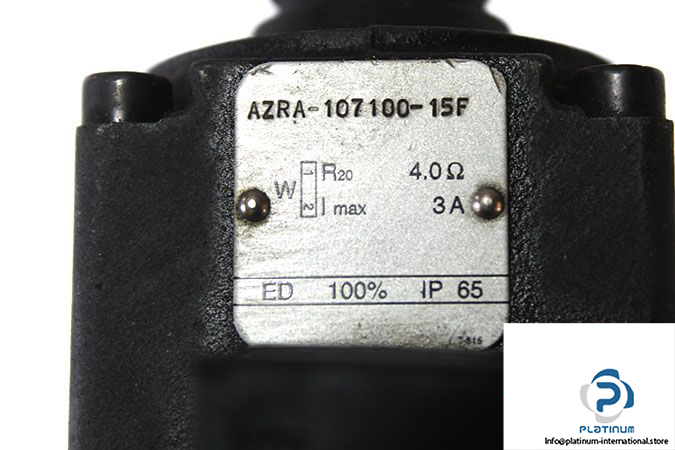

Attachment: Solenoid Coil

Manufacturer: ATOS
Type: Solenoid Coil
Model: AZRA-107100-15F

• Coil Resistance at 20°C: 4 Ω
• Protection Class: IP65
• Current: 3 A
