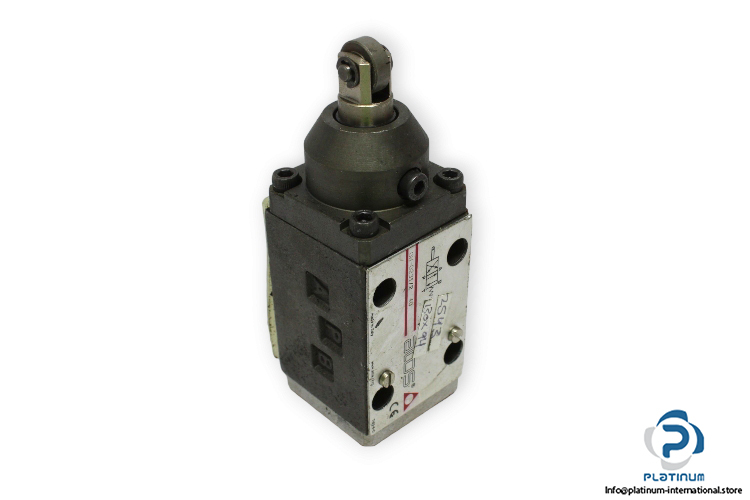

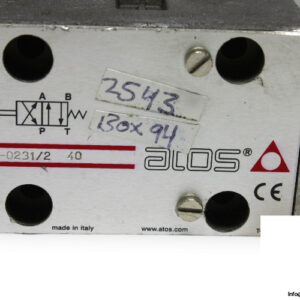

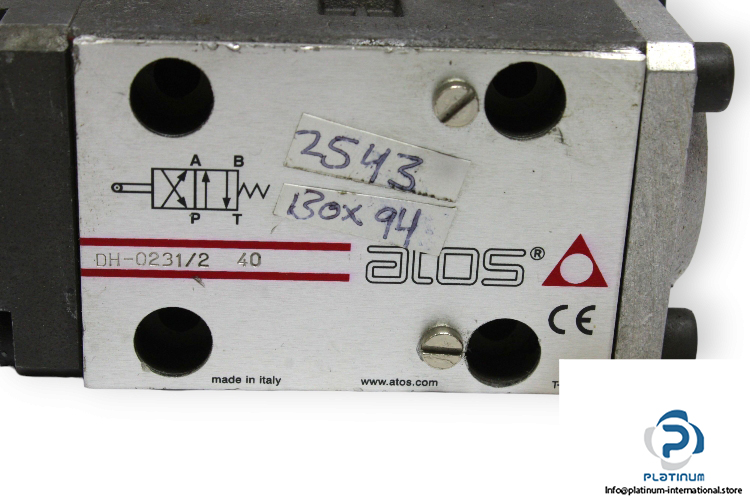

ATOS DH-0231/2 40 MECHANICAL DIRECTIONAL VALVE
The ATOS DH-0231/2 40 mechanical directional valve is designed for precision hydraulic control in demanding environments. Built with robust materials and reliable sealing, it ensures dependable performance across a wide temperature and pressure range. Ideal for industrial fluid power systems requiring compact and responsive directional flow control.
Manufacturer: ATOS
Type: Mechanical Directional Valve
Model: DH-0231/2 40
Technical Information
- Size: 06
- Ambient Temperature Range: -30 / +70 °C
- Maximum Operating Pressure Ports P, A, B: 350 bar
- Maximum Operating Pressure Port T: 160 bar
- Maximum Flow Rate: 50 l/min
- Hydraulic Fluid Temperature Range: -30 / +60 °C
- Viscosity Range: 15 / 100 mm²/s
- Connection: Sub-plate
