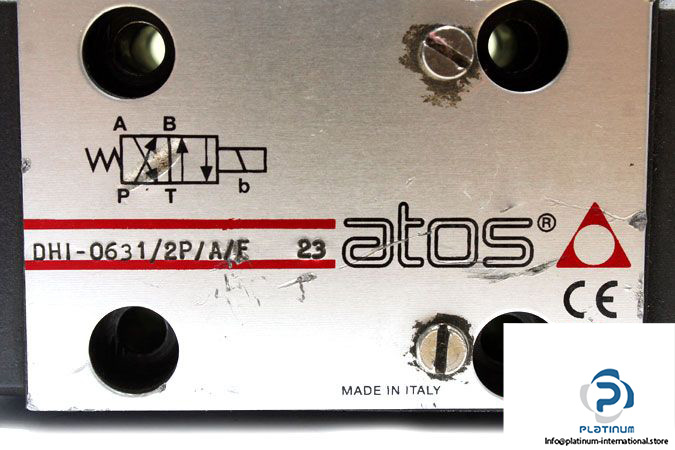

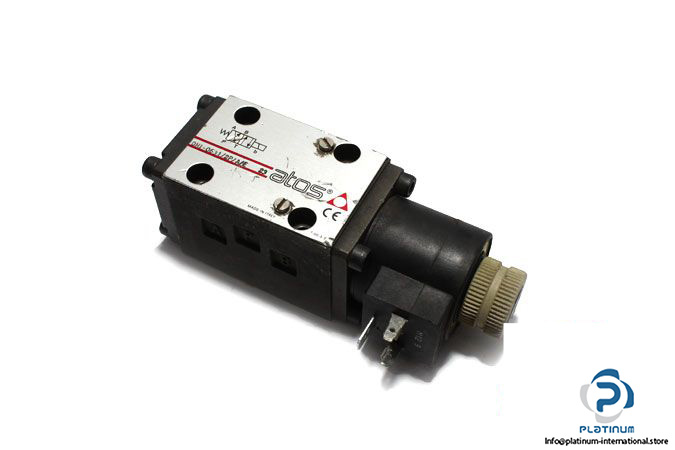

Atos DHI-0631/2P/A/E 23 Directional Control Valve

The Atos DHI-0631/2P/A/E 23 is an electrically actuated directional control valve designed for precise fluid flow regulation in hydraulic systems. Engineered for high performance and reliability, it features a robust design suitable for demanding industrial environments. The valve offers excellent pressure handling, quick response, and consistent operation under varying conditions.

Manufacturer: Atos
Type: Directional Control Valve
Model: DHI-0631/2P/A/E 23

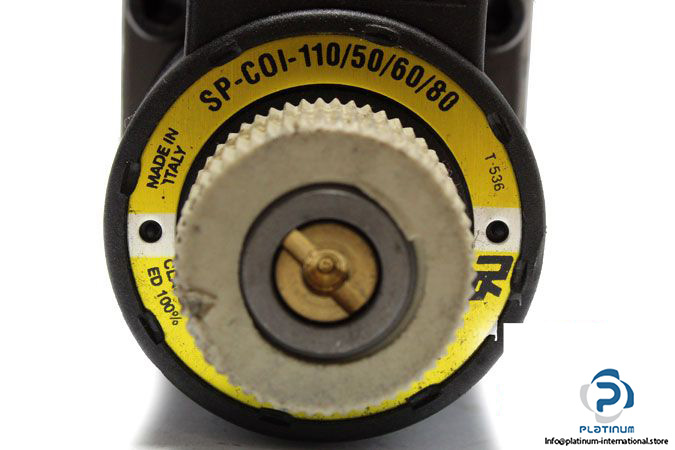

Coil Model: SP-COI-110/50/60/80
Nominal Size: 06
Type of Actuation: Electrically

Technical Information

Max. Working Pressure (Port P, A, B): 350 bar
Max. Pressure (Port T): 120 bar
Max. Flow Rate: 60 l/min
Hydraulic Connection: Sub-Plate
Features: 2 External Positions, Spring Offset
Fluid Temperature Range: -20 / +80 °C
Nominal Voltage per Coil: 110 VAC, 50“60 Hz
