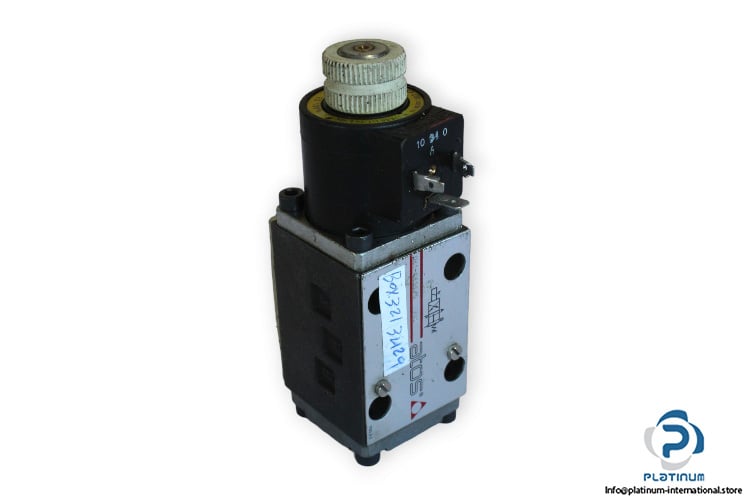

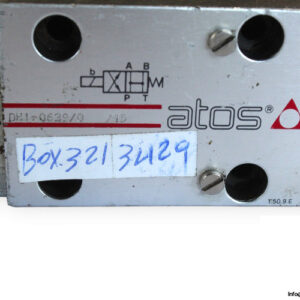

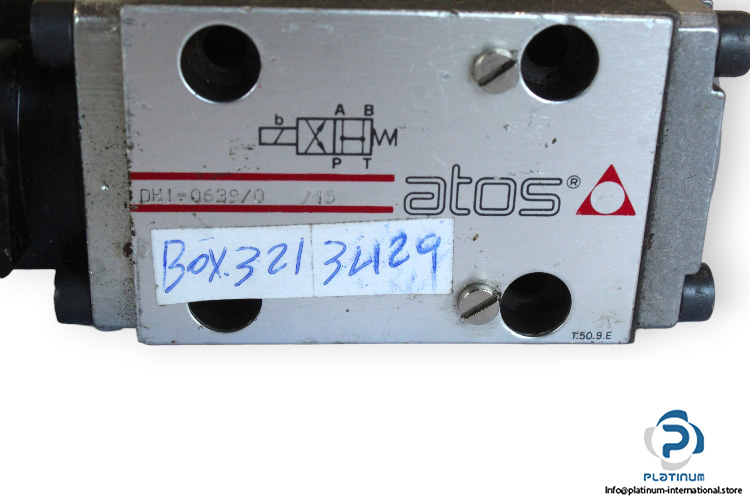

Atos DHI-0639/0 /15 Solenoid Operated Directional Valve

The Atos DHI-0639/0 /15 Solenoid Operated Directional Valve is a compact and efficient hydraulic valve designed for precise control of fluid flow direction. Engineered for high-pressure performance, it ensures reliable operation in demanding industrial systems.

Manufacturer: Atos
Type: Solenoid Operated Directional Valve
Model: DHI-0639/0 /15

Technical Information

Size: 06
Ambient Temperature Range: “30 / +70 °C
Maximum Operating Pressure Ports P, A, B: 350 bar
Maximum Operating Pressure Port T: 120 bar
Maximum Flow Rate: 60 l/min
Hydraulic Fluid Temperature Range: “20 / +60 °C
Viscosity Range: 15 / 100 mm²/s
Connection: Sub-plate

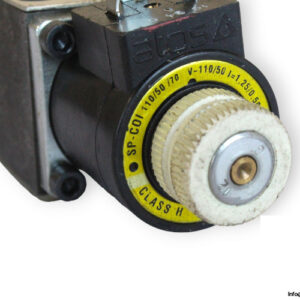

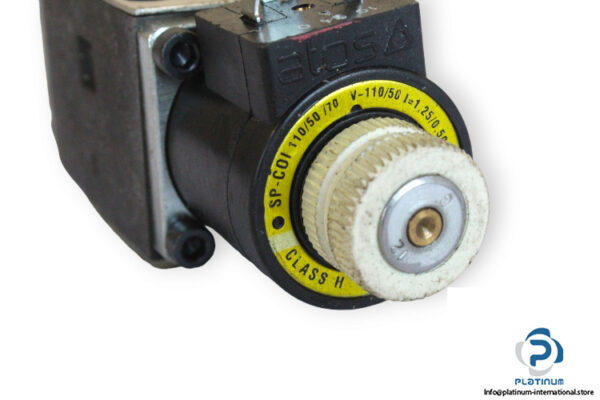

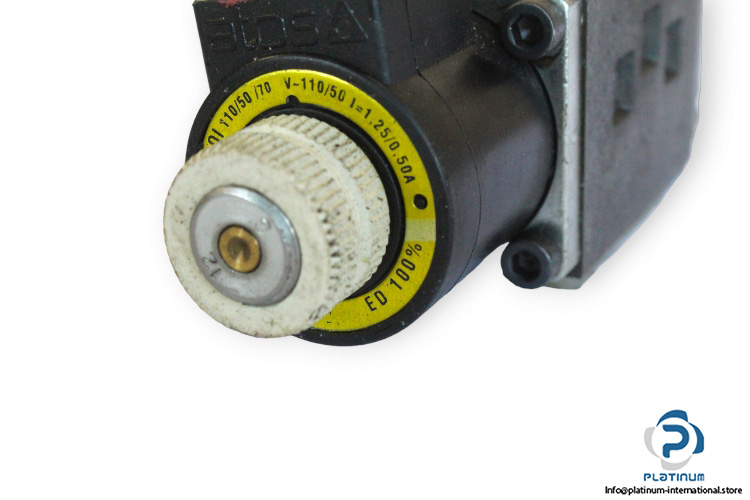

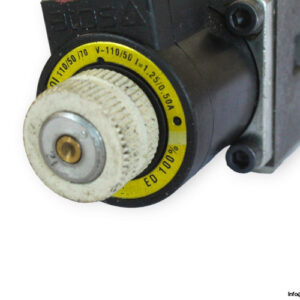

Attached With: SP-COI 110/50/70 Solenoid Coil
Nominal Voltage per Coil: 110 VAC
