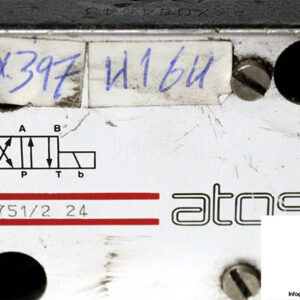

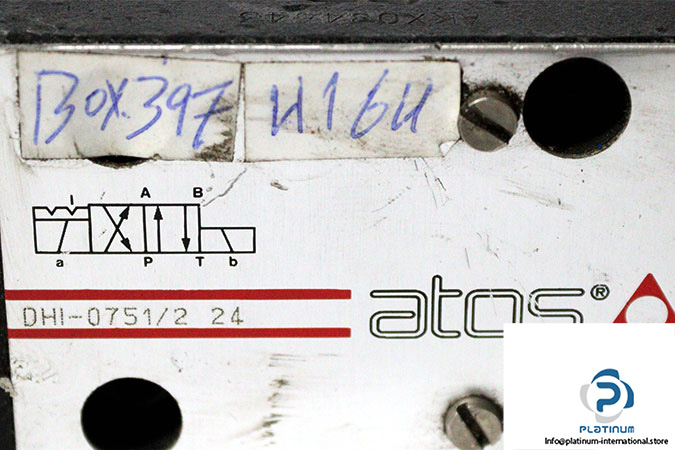

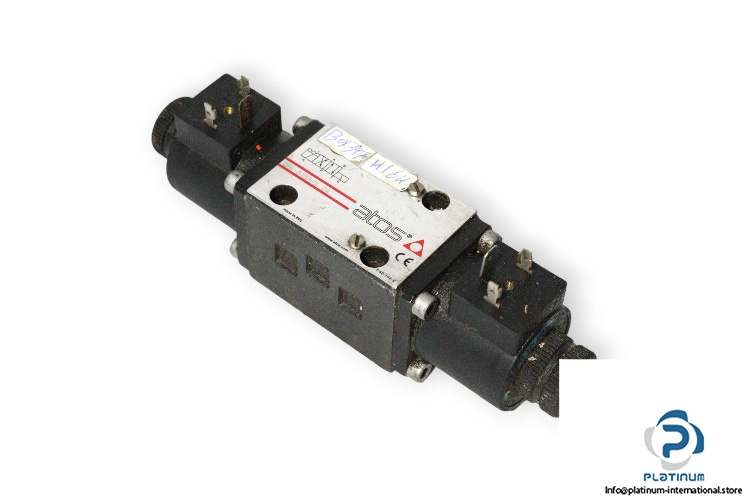

ATOS DHI-0751/2 24 PRESSURE CONTROL VALVE
The ATOS DHI-0751/2 24 Pressure Control Valve offers precise control and high performance for hydraulic systems. Designed for use with a 230 VDC solenoid coil, this valve features a nominal flow rate of 60 l/min, maximum working pressure of 350 bar, and a fluid temperature range of -20 to 70 °C.
Manufacturer: ATOS
Type: Pressure Control Valve
Model: DHI-0751/2 24
Technical Specifications
- Nominal Size: NG 6
- Type of Actuation: Electrically
- Max. Working Pressure (Port P, A, B): 350 bar
- Nominal Flow Rate: 60 l/min
- Hydraulic Connection: Sub-Plate
- Fluid Temperature Range: -20 / .. 70 °C

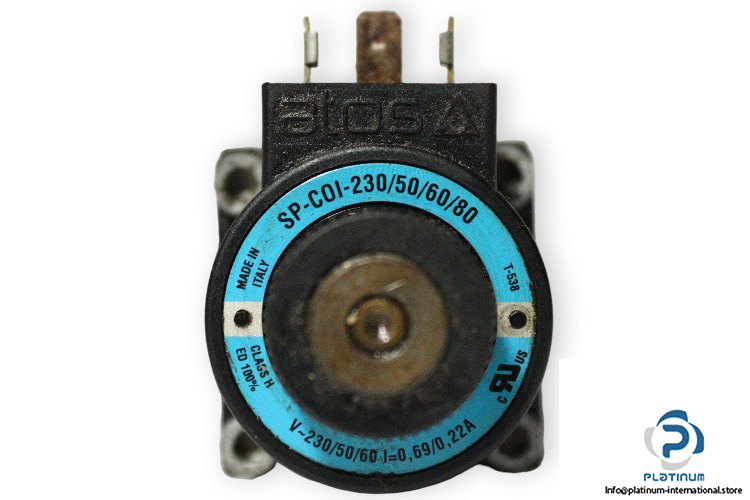

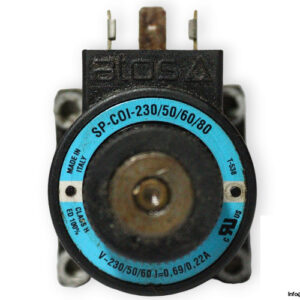

Solenoid Coil Specifications
- Attachment: SP-COI-230/50/60/80 SOLENOID COIL
- Type: Solenoid Coil
- Model: SP-COI-230/50/60/80
- Nominal Voltage per Coil: 230 VDC
- Nominal Current per Coil: 0.69/0.22 A
- Frequency: 50/60 Hz
