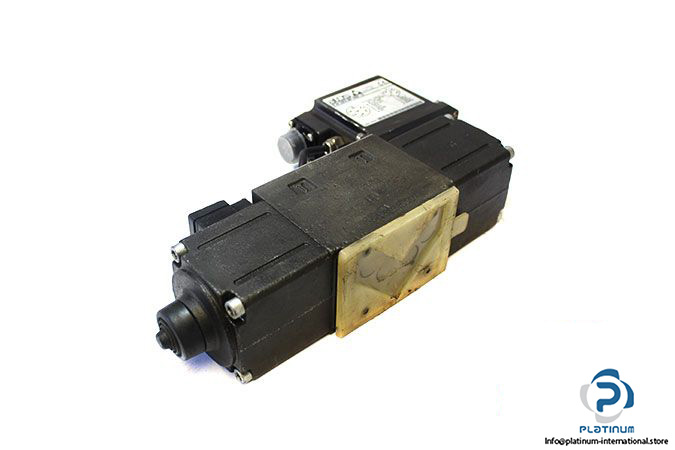

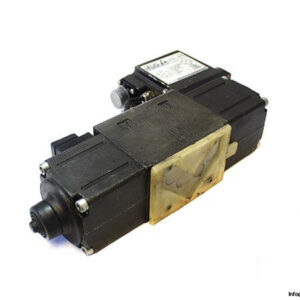

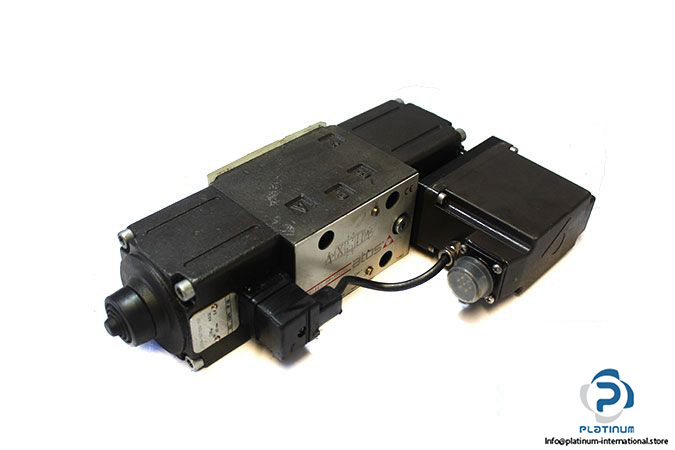

ATOS DKZOR-AES-BP-171-S5 PROPORTIONAL DIRECTIONAL VALVE WITH DRIVER & COIL

This high-performance ATOS DKZOR-AES-BP-171-S5 proportional directional valve is engineered for precise hydraulic control in demanding industrial environments. It comes fully equipped with an ATOS E-RI-AES-BP-05H 10 electronic driver and ATOS AZRA-107100-15F solenoid coil for reliable performance, optimal modulation, and easy integration with existing hydraulic systems.

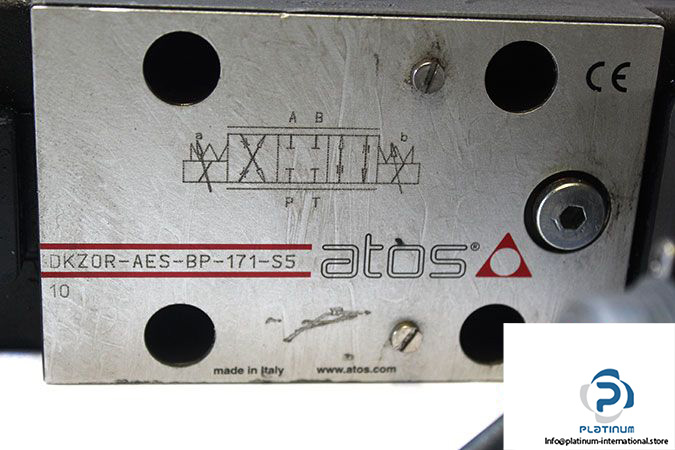

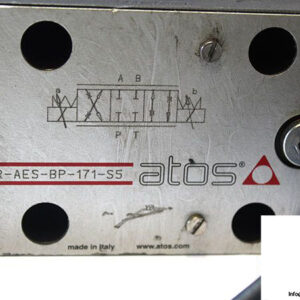

Main Valve Specifications

• Manufacturer: ATOS
• Type: Proportional Directional Valve
• Model: DKZOR-AES-BP-171-S5
• Size: 10
• Ambient Temperature Range: “20 / +60 °C
• Max Operating Pressure Port P, A, B: 315 bar
• Max Operating Pressure Port T: 210 bar
• Viscosity Range: 20“100 mm²/s
• Connection: Sub-plate

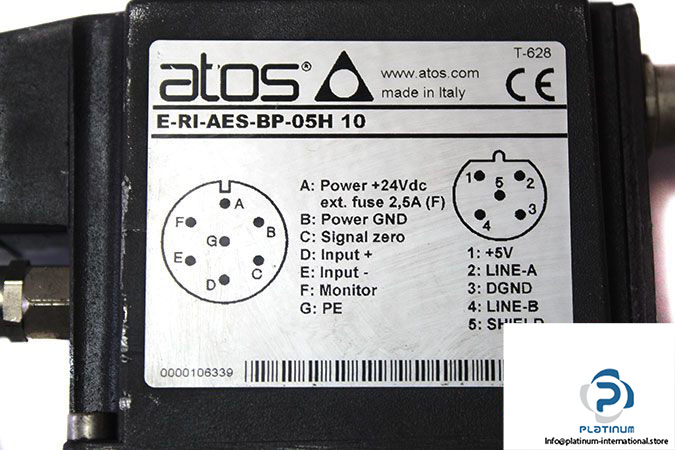

Electronic Driver Specifications

• Manufacturer: ATOS
• Type: Electronic Driver
• Model: E-RI-AES-BP-05H 10
• Power Supply: 24 VDC
• Current: 2.5 A

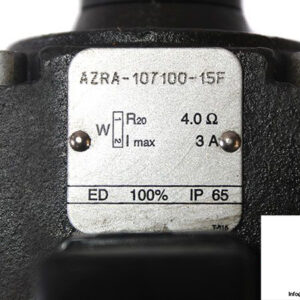

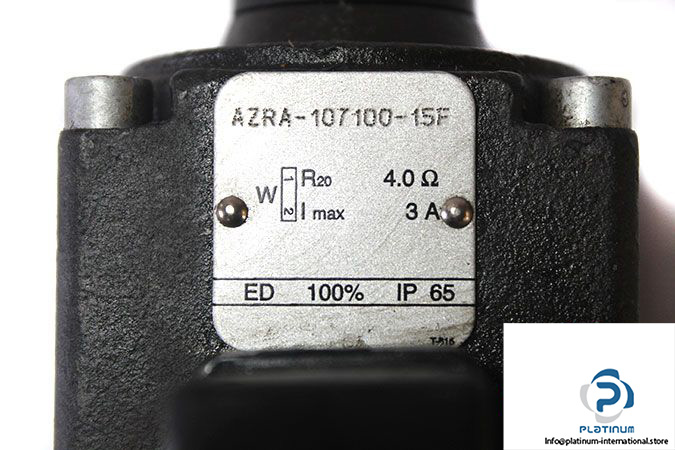

Solenoid Coil Specifications

• Manufacturer: ATOS
• Type: Solenoid Coil
• Model: AZRA-107100-15F
• Coil Resistance at 20°C: 4 Ohm
• Current: 3 A
