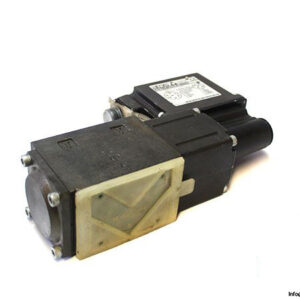

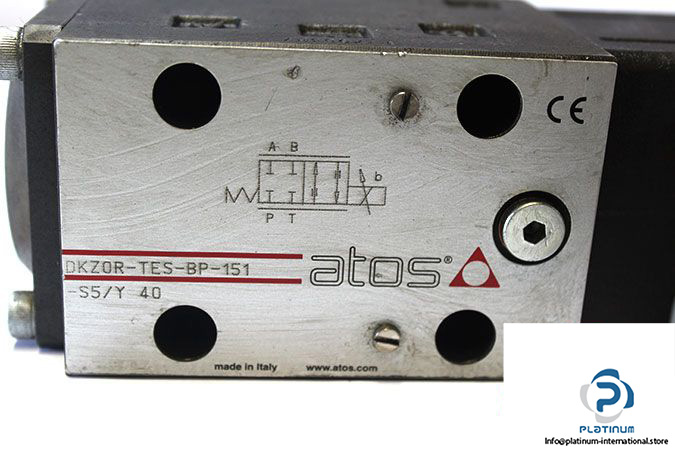

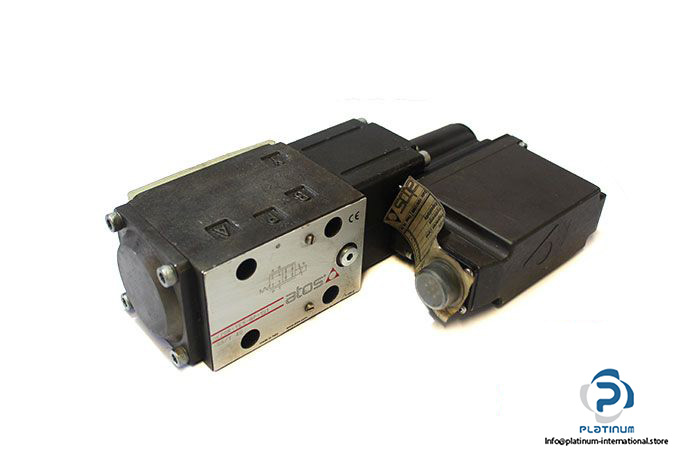

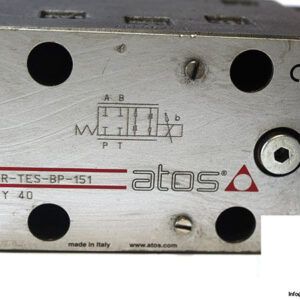

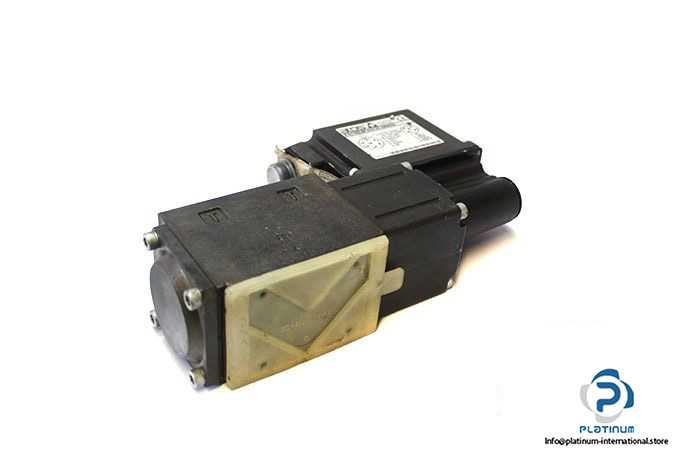

ATOS DKZOR-TES-BP-151-S5/Y40 Proportional Directional Valve

The ATOS DKZOR-TES-BP-151-S5/Y40 is a high-performance proportional directional valve designed for precise hydraulic control. It provides accurate flow and pressure regulation in complex industrial systems. This valve ensures reliable operation under demanding conditions, making it suitable for automation, machinery, and motion control applications.

Manufacturer: ATOS
Type: Proportional Directional Valve
Model: DKZOR-TES-BP-151-S5/Y40
Size: 10

Technical Information

Ambient Temperature Range: “20 / +60 °C
Maximum Operating Pressure Port P, A, B: 350 bar
Maximum Operating Pressure Port T: 210 bar
Maximum Flow Rate at 10 bar: 75 l/min
Hydraulic Fluid Temperature Range: “20 / +60 °C
Viscosity Range: 15 / 100 mm²/s
Max. Power: 50 W
Connection: Sub-plate

Electronic Driver Attachment

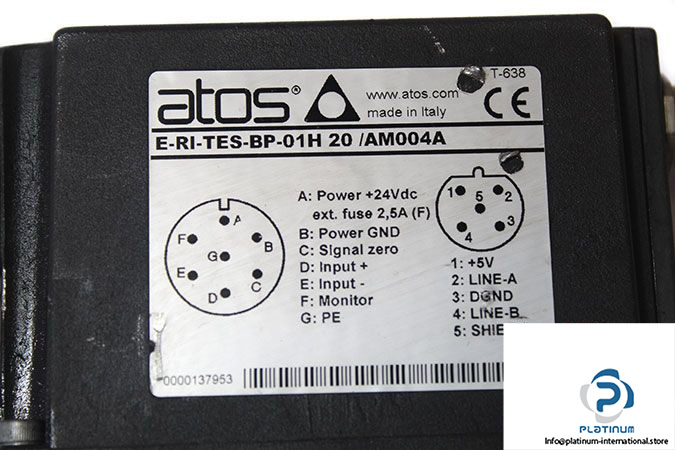

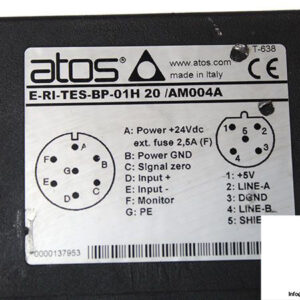

Attachment: ATOS E-RI-TES-BP-01H 20/AM004A Electronic Driver
Manufacturer: ATOS
Type: Electronic Driver
Model: E-RI-TES-BP-01H 20/AM004A
Current: 2.5 A
