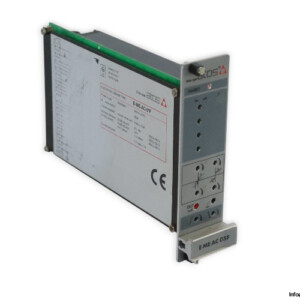

ATOS E-ME-AC-05F/RR-4 20/E-ME-AC-0*F Analog Electronic Drive
The ATOS E-ME-AC-05F/RR-4 20/E-ME-AC-0*F is an analog electronic drive in Eurocard format designed for proportional valves without transducer. It ensures precise control, smooth response, and stable operation with advanced features such as adjustable ramps and reference potentiometers. Ideal for integration in electro-hydraulic control systems requiring accurate proportional valve management.
Manufacturer: ATOS
Type: Analog Electronic Drive
Model: E-ME-AC-05F/RR-4 20/E-ME-AC-0*F
Technical Information
Format: Eurocard, for proportional valves without transducer
Options: Rising and falling ramps, 4 reference potentiometers
Model 05F: For double solenoid proportional valves
Power Supply: 24 V DC
Max Power Consumption: 50 W
Current Supplied to Solenoids: 3.3 A
Nominal Reference Signal (factory preset): 5 V at contact 12C (GND on 8a)
Reference Signal Variation Range (scale adjust): 10 V max, 2.5 V min
Potentiometers Supply: +5 V/50 mA (contact 10c) and “5 V/20 mA (contact 14c)
Electrical Wiring (coil): 2 × 1 mm² to 20 m / 2 × 1.5 mm² shielded to 40 m
Operating Temperature: 0 / 50 °C
Front Panel Dimensions: 128.4 × 35.3 mm
